SKU # 1000140884

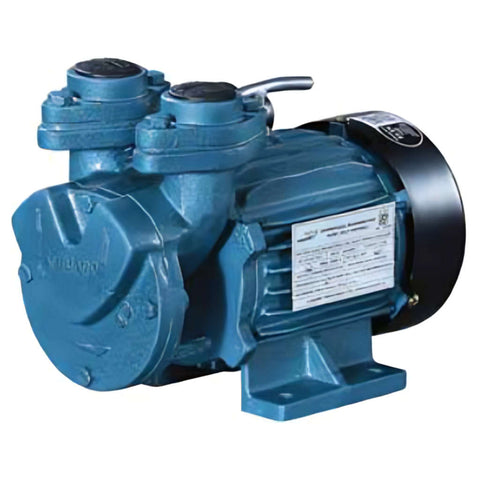

V-Guard Super Suction Series Single Phase Self Priming Monoblock Pump 0.5 HP VSPSN-H100

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
ProductDescription
-
Compact, Lucrative, and Hassle Free
-
For clear, cold water free from abrasive & chemically aggressive particles to satisfy the needs of domestic water supply, gardens and lawn sprinklers
Max. liquid temperature: 45°C -
TEFC, CSR / CSCR / CSIR induction motors as prime mover
-
Provides constant speed and better torque
-
(Totally Enclosed Fan Cooled, Capacitor Start and Run, Capacitor Start Capacitor Run, Capacitor Start Induction Run)
-
Cast Iron And Aluminium Extruded/Die-Casted Motor Body
-
Makes extremely compact and light weight
-
Forged Brass Impeller
-
Ensures prolonged life
-
99.99% Super Enamelled Copper Windings
-
Constitutes efficient and long-lasting motor
-
Superior Quality Electrical Stampings
-
Ascertain highly efficient motor
-
High Quality Alloy Steel Motor Shaft
-
Offers rust-free, stuck-free persistent operation
-
Double Sealed Ball Bearings With Life Lubrication
-
Enables smooth and silent functioning
-
High Quality Mechanical Seal With Graphite Face
-
Contributes leak-free operation
-
Equipped with Thermal Overload Protector (T.O.P)
-
Assures safe and secure operation
-
Wide Voltage Band Operation
-
Maintaining consistent performance
-
Key Features
-
Faster self priming capability
-
Aluminium extruded motor body with FG 200 Castings
-
Cast Iron Body
-
ISI Models
-
High Quality alloy steel moter shaft
-
B-Class electrical insulation
-
Zinc Coated Hardwares
-
Note:*Product specifications may vary based on manufacturer update
ProductSpecification
| Brand | V-Guard |
| Product Type | Monoblock Pump |
| Product Model | VSPSN-H100 |
| Power (HP/kW) | 0.5 HP / 0.37 kW |
| Water Pipe Size | 25 x 25 mm(2.5 x 2.5 cm) |
| Rated Speed | 2800 RPM |
| Motor Type | Single Phase |
| Insulation Class | B |
| Total Head in Metre Vs Discharge in LPH | |
| Discharge (LPH) | Total Head (m) |
| 1950 | 6 |
| 1675 | 9 |
| 1500 | 12 |
| 1350 | 15 |
| 1250 | 18 |
| 1125 | 21 |
| 1000 | 24 |
| 850 | 27 |
| 600 | 30 |
| Note | Actual product image may vary from that shown on the picture |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 31 x 22 x 18 |
| Unit of Measurement | 1 Piece |
| Weight | 8 kg |
| Generic Type | Monoblock Pumps |
| Manufacturer Details | V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in |
| Packer Details | V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in |
| Country of Origin | India |
