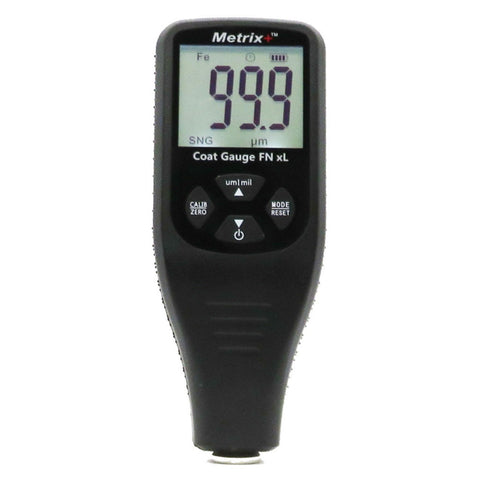

Metrix Plus Coat Gauge FN xL Digital Coating Thickness Meter
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
About Coat Gauge FN xL Digital Coating Thickness Meter
-
Introducing the Coat Gauge FN xL Digital Coating Thickness Meter from Metrix Plus, a trusted name among measuring instruments manufacturers in India
-
This digital coating thickness meter is designed for precise measurements of coatings on metal surfaces, ensuring reliability and high accuracy
-
It is ideal for industries requiring quality control in painting, galvanizing, and coating applications Whether you need the best digital coating thickness meter or an advanced precise coating thickness gauge, this tool delivers efficient performance on both ferrous and non-ferrous substrates
-
For industries looking for top-quality digital coating thickness meters in India at competitive digital coating thickness meter prices, Metrix Plus is your go-to solution for precision and durability
-
Features Of The Coat Gauge FN xL Best Digital Coating Thickness Meter
-
Large Display for better readability
-
Zero-point calibration and multi-point calibration
-
Two measure modes: single and continuous
-
Selectable um/mil measuring units
-
Applications
-
This coating thickness gauge is designed for non-destructively measuring the thickness of coating and painting
-
It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and able to work steadily in the laboratory, workshop and outdoors
-
Measuring Principle
-
This instrument has an in-built probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates(steel/iron) and eddy current principle to measure thickness of non-conductive coatings on non-magnetic substrates (aluminium, copper, brass)
ProductSpecification
| Brand | Metrix Plus |
| Product Type | Thickness Meter |
| Product Model | Coat Gauge FN xL |
| Measuring Principle | Magnetic induction(F) & Eddy Current(NF) |
| Measuring Range | 0 to 1500um (0 to 59mils) |
| Accuracy | ±(2.5%+2um) ±(2.5%+0.08mil) |
| Resolution | 0.1um/0.01mil |
| Calibration | Zero Calibration, Multi-Points Calibration |
| Units | um , mils |
| Minimum Curvature Radius | 1.5mm(convex) 25mm(concave) |
| Minimum Measuring Area | Diameter 6mm |
| Minimum Thickness Of Substrate | 0.5mm(0.02”)(F) 0.3mm(0.012”)(NF) |
| Power Supply | 4 x 1.5V AAA battery |
| Operation Environment | Temperature: 0 to 40℃(32 to 104℉)； Humidity: 20% to 90%rh |
| Standard Accessories | Coating Thickness Gauge, ‘0’ calibration block, standard foils, batteries, Technical manual. |
| Size | 155 × 62 × 35 mm |
| Weight | 125 g |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 155 × 62 × 35 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.125 kg |
| Generic Type | Thickness Meter |
| Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Country Of Origin | India |
