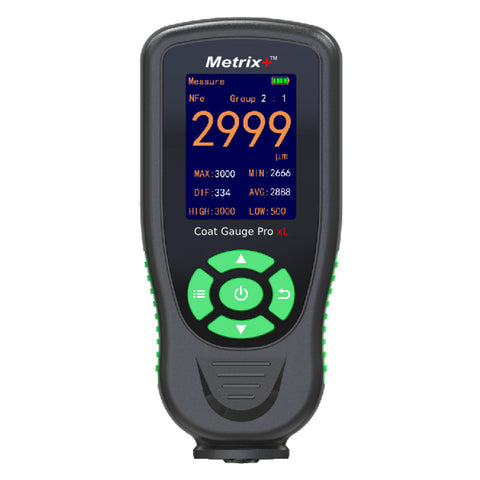

Metrix Plus Coat Gauge Pro xL Digital Coating Thickness Meter
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
High measuring range upto 3000um
-
Compact, ergonomic, integrated probe design
-
Statistics display with data storage in batch structure
-
Negative dot-matrix color display for better readability at all angles
-
Metal putty detection and notification, which may affect thickness measurements
-
Non-metallic and over-range prompts
-
Galvanized plating detection
-
On-screen guide for calibration process
-
Inbuilt battery with Type-C charging
-
Application
-
The instrument is designed for measuring the thickness of paint, galvanized layer, chrome layer, anodized layer, lacquer, epoxy, powder coatings, other electroplatings on ferrous substrates (iron, etc) and non-ferrous substrates (aluminum, etc)
-
Measuring Principle
-
This instrument has an integrated probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates and eddy current principle to measure thickness of nonconductive coatings on non-magnetic substrates
ProductSpecification
| Brand | Metrix Plus |
| Product Type | Thickness Meter |
| Product Model | Coat Gauge Pro xL |
| Measuring Principle | Magnetic induction(F) & Eddy Current(NF) |
| Measuring Range | 0 - 3000um |
| Accuracy | 0 ~ 1000um: ±(3% + 1um) >1000um: ±(5% + 1um) |
| Resolution | 0.1um (0~99.9um) 1um (> 100um) |
| Calibration | Zero point and multi-point calibration |
| Storage | 8 data x 10groups storage with statistics of each group |
| Statistics | Max, Min, Diff, Avg |
| Units | um, mils |
| Minimum Surface Diameter | 5mm(convex) 5mm(concave) |
| Minimum Measuring Area | 6 x 6mm |
| Minimum Thickness Of Substrate | 0.40mm |
| Power Supply | In-built battery with Type C charging |
| Operation Environment | Temperature: -20 to 40℃ Humidity: 20 ~ 90% RH |
| Standard Accessories | Coating Thickness Gauge, ‘0’ calibration blocks, standard foils, cloth bag, charging cable, technical manual, hard carry case |
| Size | 120 × 55 × 23 mm |
| Weight | 175 g |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 12 × 55 × 23 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.175 kg |
| Generic Type | Thickness Meter |
| Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Country Of Origin | India |
