SKU # 1000136488

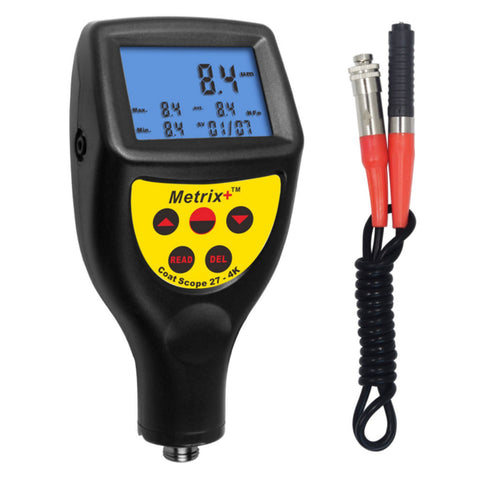

Metrix Plus Coat Scope 27 4k Digital Coating Thickness Meter
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Flexible probe Digital Coating Thickness Meter to measure the thickness of coatings on ferrous and non-ferrous substrates upto 4000um F and 3000um NF
-
Features
-
Unique single probe for F and NF substrates with automatic substrate recognition
-
Zero-point calibration and multi-point calibration
-
Data storage and recall
-
Statistics of max, min and avg value of readings calculated and displayed
-
Backlit LCD display
-
Metric/imperial conversion
-
Single and continuous measuring modes
-
Applications
-
This Gauge is designed for non-destructively measuring the thickness of coatings on ferrous and non-ferrous substrates
-
It can be used to measure thickness of paint, galvanizing layer, lacquer layer, porcelain enamel, phosphide layer, copper tile, anodizing layer, varnish, plastic coatings, powder, etc
-
Measuring Principle
-
This instrument has a unique single external probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates and eddy current principle to measure thickness of non-magnetic coatings on non-magnetic substrates
ProductSpecification
| Brand | Metrix Plus |
| Product Type | Thickness Meter |
| Product Model | Coat Scope 27 4k |
| International Standard | It meets the standards of both ISO 2178 and ISO 2361 as well as DIN, ASTM and BS |
| Measuring Principle | Magnetic induction(F) & Eddy current(NF) |
| Display | 4 digits backlit LCD |
| Measuring Range | F : 0 - 4000um (0 – 160mils) NF : 0 - 3000um (0 - 120mils) |
| Accuracy | ±1-3%n or +2.5um |
| Resolution | 0.1um(0~99.9um); 1um(over 100um) |
| Metric/Imperial | Selectable |
| Minimum Curvature Radius | F : 1.5mm(convex) ; 25mm(concave) NF : 3mm(convex) ; 50mm(concave) |
| Minimum Measuring Area | Diameter 6mm |
| Minimum Thickness Of Substrate | 0.3mm |
| Memory Storage And Recall | 99 groups of measurement |
| Statistics | Max, min and avg value of readings |
| Additional Features | Low Battery Indicator, Auto power off |
| Power Supply | 2 x 1.5V AAA(UM 4) battery |
| Operation Environment | Temperature: 0 to 50℃ ; Humidity: < 95% |
| Standard Accessories | Coating Thickness Gauge, F/NF combine probe, ‘0’ calibration blocks, standard foils, technical manual, hard carry case |
| Optional Accessories | PC interface(cable and software) |
| Size | 130 × 65 × 35 mm (Not including batteries) |
| Weight | 90 g |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 130 × 65 × 35 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.90 kg |
| Generic Type | Thickness Meter |
| Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Country Of Origin | India |
