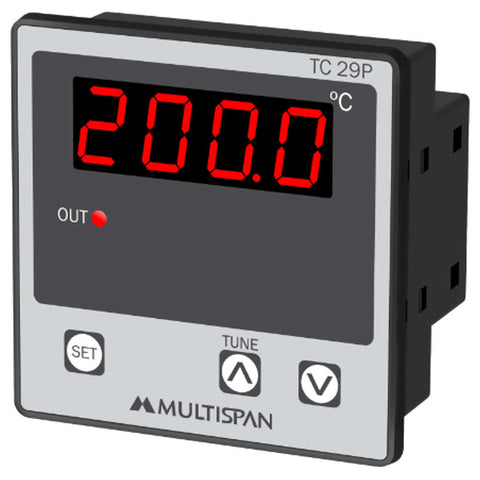

Multispan Digital PID Temperature Controller TC-29P
Multispan Digital PID Temperature Controller TC-29P 7970069348546
PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Applications
-
Packaging Machinery
-
Extrusion Machinery
-
Furnace & Boilers
-
Ovens & Incubators
-
Food Industry
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
| Brand | Multispan |
| Product Type | PID Controller |
| Product Model | TC-29P |
| Input | |
| Input Type | Thermocouple : ( J, K )PT-100 2 Wire or 3 Wire |
| Display Range | J: 400° C, K: 1200° C |
| Accuracy | ± 1% of FSD |
| ADC Resolution | 10 Bits |
| Display Resolution | Thermocouple : 1°C |
| Sample Rate | 6 Sample / Sec |
| CJC Error | ± 2°C |
| Sensor Open | All Input |
| Sensor Burnout Current | 1.10uA |
| RTD Excitation Current | 0.2mA |
| CMRR | >120 db ( Typical ) |
| Input Impedance | >1M |
| Max Voltage | 20V DC |
| Output | |
| Control Output | |
| Control Type | PID/TP/ON-OFF |
| Relay Control Output | |
| Relay | 1 Nos. |
| Rating | 10A @230V AC / 28V DC |
| SSR Control Output | |
| Rating | 12V DC @30mA |
| Display | |
| Process Value | 4 Digit 7 seg 0.56”,RED LED Display |
| Keys | SET, INC, DEC |
| LED Indication | Relay |
| Power Supply | |
| Standard | 100 to 270V AC,50/60Hz |
| Optional | 24V DC |
| Consumption | 4VA |
| Environmental | |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | 0 to 70°C |
| Humidity | 95% RH Non-condensing |
| Protection | IP 54 ( Front Side ) |
| Sensor Range | |
| J | 0 to 400°C |
| K | 0 to 1200°C |
| PT-100 | 0 to 400°C, -50.0 to 200.0°C |
| Physical | |
| Enclosure | Molded PC |
| Color | Black |
| Front Bezel | 72 x 72 mm |
| Panel Cutout | 68 x 68 mm |
| Depth Behind Panel | 45 mm |
| Accessories | 1 pair of Mounting clamp |
| Terminal Cable Size | Barrier Type terminal |
| Dimension (HxWxD) | 72 x 72 x 45 |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 7.2 x 7.2 x 4.5 |
| Unit of Measurement | 1 Piece |
| Weight | 0.75 kg |
| Generic Type | Temperature Controllers |
| Manufacturer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
| Packer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
| Country of Origin | India |
