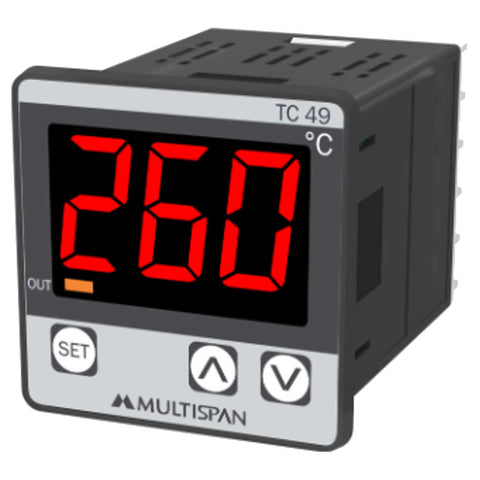

Multispan Digital Temperature Controller TC-49
Multispan Digital Temperature Controller TC-49 7970069315778PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Applications
-
Packaging Machinery
-
Extrusion Machinery
-
Furnace & Boilers
-
Ovens & Incubators
-
Food Industry
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
Brand | Multispan |
Product Type | Temperature Controller |
Product Model | TC-49 |
Input | |
Input Type | Thermocouple : ( J, K ) or PT-100 |
Display Range | J: 600° C, K: 999° C |
Accuracy | ± 1% of FSD |
ADC Resolution | 10 Bits |
Display Resolution | Thermocouple : 1°C |
Sample Rate | 6 Sample / Sec |
CJC Error | ± 2°C |
Sensor Open | All Input |
Sensor Burnout Current | 1.10uA |
RTD Excitation Current | 0.2mA |
CMRR | >120 db ( Typical ) |
Input Impedance | >1M |
Max Voltage | 20V DC |
Output | |
Control Output | |
Control Type | On-Off, TP |
Relay Control Output | |
Relay | 1 Nos. |
Rating | 5A @230V AC / 28V DC |
SSR Control Output | |
Rating | 12V DC @30mA |
Display | |
Process Value | 3 Digit 7 seg 0.56”,RED LED Display |
Keys | SET, UP, DOWN |
LED Indication | OUT |
Power Supply | |
Standard | 100 - 270V AC @ 50/60 Hz |
Optional | 24V DC |
Consumption | 4VA |
Environmental | |
Operating Temperature | 0 to 55°C |
Storage Temperature | 0 to 70°C |
Humidity | 95% RH Non-condensing |
Protection | IP 54 ( Front Side ) |
Sensor Range | |
J | 0 to 600°C |
K | 0 to 999°C |
PT-100 | -50 to 400°C |
Physical | |
Enclosure | Molded PC |
Color | Black |
Front Bezel | 48 x 48 mm |
Panel Cutout | 45 x 45 mm |
Depth Behind Panel | 70 mm |
Accessories | 1 pair of Mounting clamp |
Terminal Cable Size | Barrier Type terminal |
Dimension (HxWxD) | 48 x 48 x 70 |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H | 4.8 x 4.8 x 7 |
Unit of Measurement | 1 Piece |
Weight | 0.75 kg |
Generic Type | Temperature Controllers |
Manufacturer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
Packer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
Country of Origin | India |
