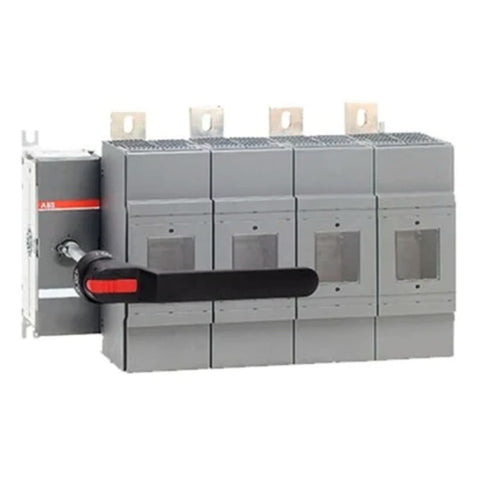

ABB BS Type OESA/OS Switch Disconnector Fuse 32-630 A Triple Pole & Neutral

ABB BS Type OESA/OS Switch Disconnector Fuse 32-630 A Triple Pole & Neutral


₹ 1,346.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Switch Fuses,Front Operated,4-pole,03 (Left Side),British Standard,B1-B3,Handle and shaft included,Detachable Neutral Link Integrated Into the Mechanism

  • Handle Type : Handle and shaft included

  • Fourth Pole Type : Detachable Neutral Link Integrated Into the Mechanism

  • Switches Operating Mechanism : 03 (Left Side)

  • Position of Line Terminals : Top In - Bottom Out ,Bottom In - Top Out

  • Fuse System : British Standard

  • Operating Mode : Front Operated

  • Standards : IEC 60947-3

  • Special Functions : Detachable Neutral

  • Mounting Type : Base mounting

  • Number of Poles : 3+N

  • Product Net Width : 208 mm

  • Product Net Height : 193 mm

  • Product Net Depth / Length : 154 mm

  • Product Net Weight : 4.4 kg

  • Terminal Type : Lug terminals

  • Terminal Width : 25 mm

  • Tightening Torque : 30 ... 44 N·m

  • Conventional Free-air Thermal Current (Ith) : q = 40 °C 250 A

  • Conventional Thermal Current (Ithe) : Fully Enclosed 250 A

  • Rated Impulse Withstand Voltage (Uimp) : 12 kV

  • Rated Insulation Voltage (Ui) : 1000 V

  • Rated Operational Voltage : 500 V

  • Rated Short-time Withstand Current (Icw) : for 1 s 8 kiloampere rms

  • Power Loss : at Rated Operating Conditions per Pole 23 W

  • Pollution Degree : 3

Product Specification

Rated Current (A)

Fuse Size

Type

Product Id

32

A2

OESA32G1N

OESA32G1N

63

A3

OESA63G1N

OESA63G1N

100

A4

OESA100G1N

OESA100G1N

125

A4

OESA125G1N

OESA125G1N

160

B2

OESA160B3N

OESA160B3N

200

B1-B2

OS200B03N3P

1SYN022750R0620

250

B1-B3

OS250B03N3P

1SYN022750R8010

315

B1-B4

OS315B03N3P

1SYN022753R8940

400

B1-B4

OS400B03N3P

1SYN022753R9160

630

C1-C2

OS630B03N3P

1SYN100860R1001
