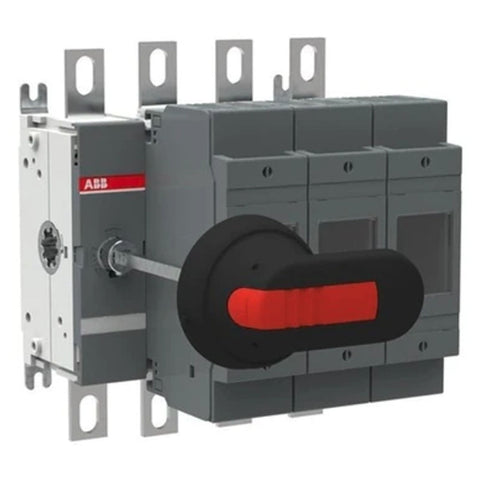

ABB DIN Type OS Switch Disconnector Fuse 200-800 A Three Pole & Neutral

ABB DIN Type OS Switch Disconnector Fuse 200-800 A Three Pole & Neutral


₹ 14,030.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Switch Fuses,Front Operated,4-pole,03 (Left Side),DIN,0,Handle and shaft included,Detachable Neutral Link Integrated Into the Mechanism

  • Handle Type : Handle and shaft included

  • Fourth Pole Type : Detachable Neutral Link Integrated Into the Mechanism

  • Switches Operating Mechanism : 03 (Left Side)

  • Position of Line Terminals : Top In - Bottom Out , Bottom In - Top Out

  • Fuse System : DIN

  • Operating Mode : Front Operated

  • Standards : IEC 60947-3

  • Special Functions : Detachable Neutral

  • Mounting Type : Base mounting

  • Number of Poles : 3+N

  • Product Net Width : 177 mm

  • Product Net Height : 199 mm

  • Product Net Depth / Length : 191 mm

  • Product Net Weight : 3.05 kg

  • Terminal Type : Lug terminals

  • Terminal Width : 20 mm

  • Tightening Torque : 15 ... 22 N·m

  • Conventional Free-air Thermal Current (Ith) : q = 40 °C 200 A

  • Conventional Thermal Current (Ithe) : Fully Enclosed 200 A

  • Rated Impulse Withstand Voltage (Uimp) : 12 kV

  • Rated Insulation Voltage (Ui) : 1000 V

  • Rated Operational Voltage : 500 V

  • Rated Short-time Withstand Current (Icw) : for 1 s 8 kiloampere rms

  • Power Loss : at Rated Operating Conditions per Pole 17 W

  • Pollution Degree : 3

Product Specification

Rated Current (A)

Fuse Size

Type

Product Id

200

0

OS200D03N3P

1SYN022749R8710

250

0-1

OS250D03N3P

1SYN022749R9430

315

0-2

OS315D03N3P

1SYN953047P3001

400

0-2

OS400D03N3P

1SYN022753R9320

630

3

OS630D03N3P

1SYN100858R1001

800

3

OS800D03N3P

1SYN100859R1001


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Switch Disconnector Fuses

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
