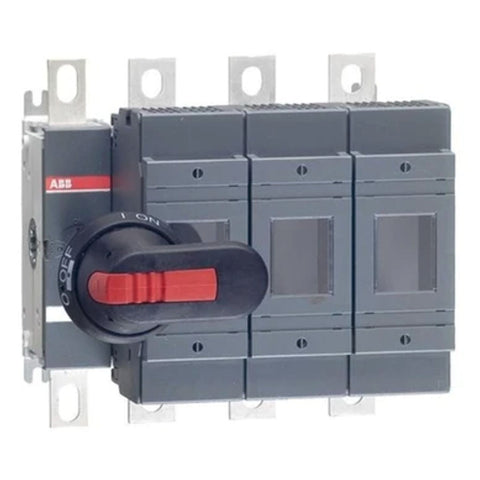

ABB DIN Type OESA/OS Switch Disconnector Fuse 32-800 A Three Pole

ABB DIN Type OESA/OS Switch Disconnector Fuse 32-800 A Three Pole


₹ 1,313.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Switch Fuses,Front Operated,3-pole,03 (Left Side),DIN,0,1,Handle and shaft included

  • Handle Type : Handle and shaft included

  • Switches Operating Mechanism : 03 (Left Side)

  • Position of Line Terminals : Top In - Bottom Out , Bottom In - Top Out

  • Fuse Size : 0,1

  • Fuse System : DIN

  • Operating Mode : Front Operated

  • Standards : IEC 60947-3

  • Mounting Type : Base mounting

  • Number of Poles : 3

  • Product Net Width : 208 mm

  • Product Net Height : 193 mm

  • Product Net Depth / Length : 154 mm

  • Product Net Weight : 4.09 kg

  • Terminal Type : Lug terminals

  • Terminal Width : 25 mm

  • Tightening Torque : 30 ... 44 N·m

  • Conventional Free-air Thermal Current (Ith) : q = 40 °C 250 A

  • Conventional Thermal Current (Ithe) : Fully Enclosed 250 A

  • Rated Impulse Withstand Voltage (Uimp) : 12 kV

  • Rated Insulation Voltage (Ui) : 1000 V

  • Rated Operational Voltage : 500 V

  • Rated Short-time Withstand Current (Icw) : for 1 s 8 kiloampere rms

  • Power Loss : at Rated Operating Conditions per Pole 23 W

  • Pollution Degree : 3

Product Specification

Rated Current (A)

Fuse Size

Type

Product Id

32

000/ 00

OESA00-32

1SCA022058R7710

63

000/ 00

OESA 00-63

1SCA022057R6850

100

00

OESA00100

1SCA022025R7830

125

00

OESA 00125

OESA00125

160

00

OESA00-160

1SCA022077R8130

200

0

OS200D03P

1SYN022709R9500

250

0-1

OS250D03P

1SYN022719R0090

315

0-2

OS315D03P

1SYN953046P3001

400

0-2

OS400D03P

1SYN022719R0250

630

3

OS630D03P

1SYN022825R2830

800

3

OS800D03P

1SYN022825R4880
