LAST SOLD AT ₹ 10,960.00

SKU # 1000016805

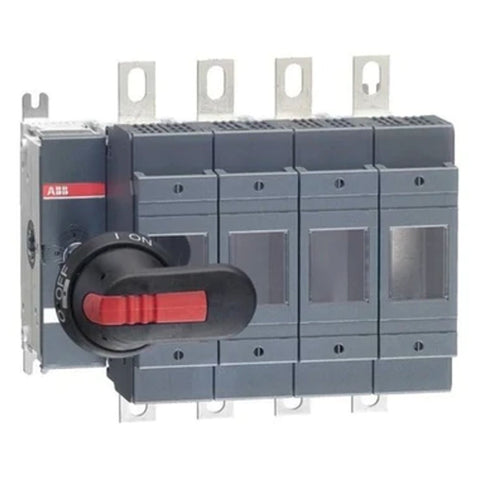

ABB DIN Type OS Switch Disconnector Fuse 200-800 A Four Pole

ABB DIN Type OS Switch Disconnector Fuse 200-800 A Four Pole


₹ 10,960.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Switch Fuses,Front Operated,4-pole,04 (Left Side),DIN,0,Handle and shaft included,Switched With Solid Link

  • Conventional Free-air Thermal Current (Ith) : q = 40 °C 200 A

  • Handle Type : Handle and shaft included

  • Fourth Pole Position : Right Side

  • Fourth Pole Type : Switched - With Solid Link

  • Switches Operating Mechanism : 04 (Left Side)

  • Position of Line Terminals : Top In - Bottom Out , Bottom In - Top Out

  • Fuse Size : 0

  • Fuse System : DIN

  • Operating Mode : Front Operated

  • Standards : IEC 60947-3

  • Mounting Type : Base mounting

  • Number of Poles : 4

  • Product Net Width : 220 mm

  • Product Net Height : 199 mm

  • Product Net Depth / Length : 149 mm

  • Product Net Weight : 3.98 kg

  • Terminal Type : Lug terminals

  • Terminal Width : 20 mm

  • Tightening Torque : 15 ... 22 N·m

  • Conventional Thermal Current (Ithe) : Fully Enclosed 200 A

  • Rated Impulse Withstand Voltage (Uimp) : 12 kV

  • Rated Insulation Voltage (Ui) : 1000 V

  • Rated Operational Voltage: 500 V

  • Rated Short-time Withstand Current (Icw) : for 1 s 8 kiloampere rms

  • Power Loss : at Rated Operating Conditions per Pole 17 W

  • Pollution Degree : 3

Product Specification

Rated Current (A)

Fuse Size

Type

Product Id

200

0

OS200D04N2P

1SYN022709R9680

250

0-1

OS250D04N2P

1SYN022719R2380

315

0-2

OS315D04N2P

1SYN953048P3001

400

0-2

OS400D04N2P

1SYN022719R2460

630

3

OS630D04N2P

1SYN022825R4290

800

3

OS800D04N2P

1SYN022825R5180


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Fuse Links

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
