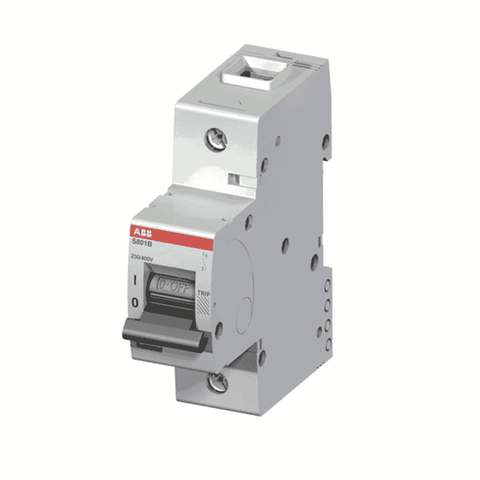

ABB C Curve 1P High Performance MCB


ABB
Available



₹ 1,091.00

Check Pincode Availability

Product Description

  • High Performance Circuit breaker with C-characteristic, with cage terminal, Current Type AC

  • Number of poles 1,

  • It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V.

  • It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.

  • Complies with IEC/EN 60947-2 and EN 60898-1 and allows the use for residential, commercial and industrial applications.

  • It has numerous of approvals, therefore it can be used worldwide. Due to the fast arc extinction the application will be secured.

Product Specifications

Rated Current

Code

Product Id

32 A

S801B-C32

2CCS811001R0324

40 A

S801B-C40

2CCS811001R0404

50 A

S801B-C50

2CCS811001R0504

63 A

S801B-C63

2CCS811001R0634

80 A

S801B-C80

2CCS811001R0804

100 A

S801B-C100

2CCS811001R0824

125 A

S801B-C125

2CCS811001R0844
