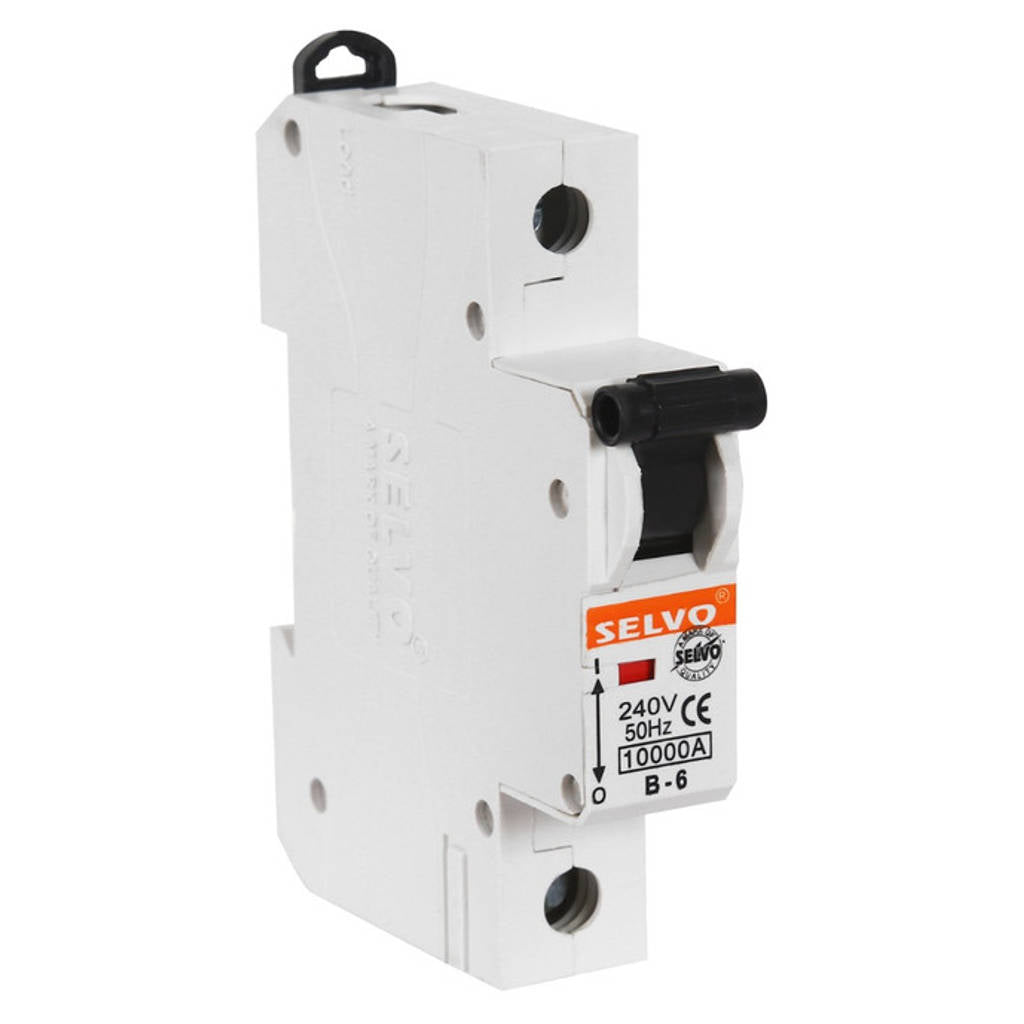

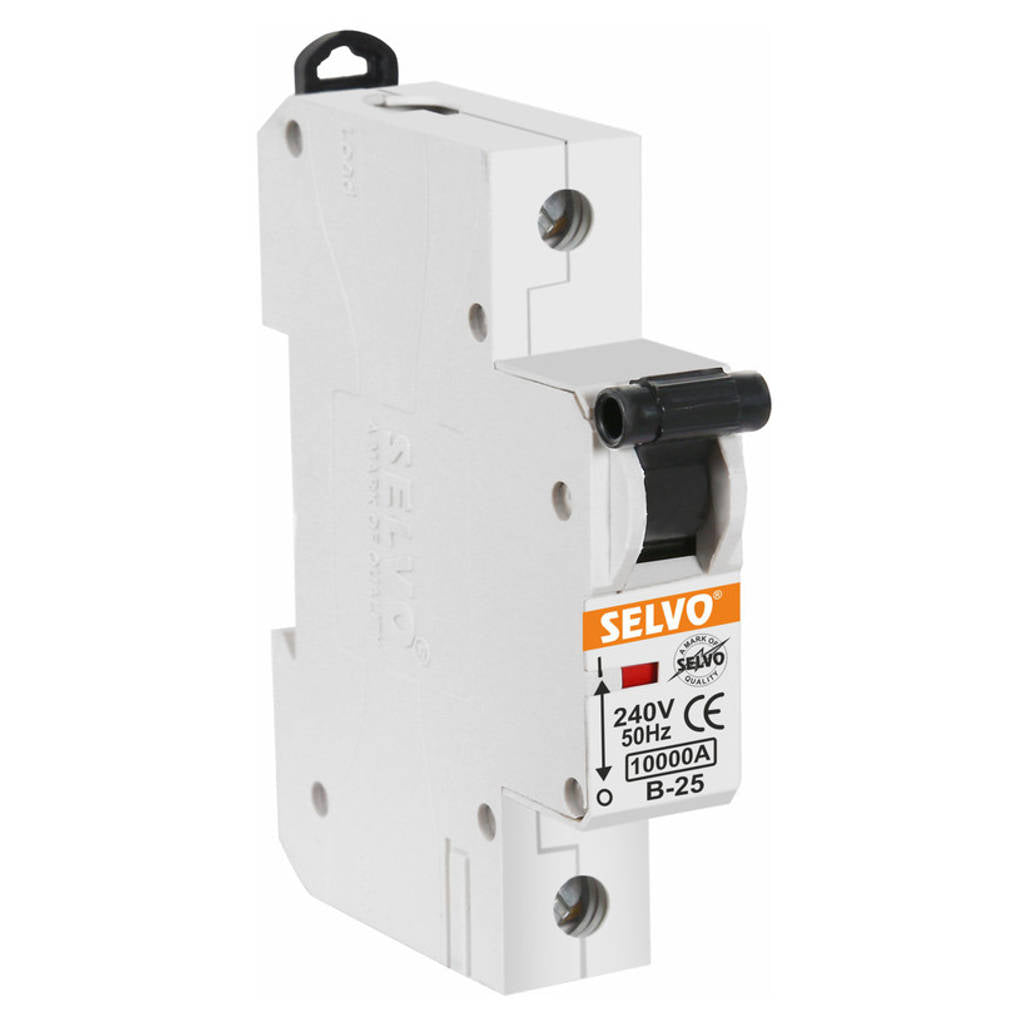

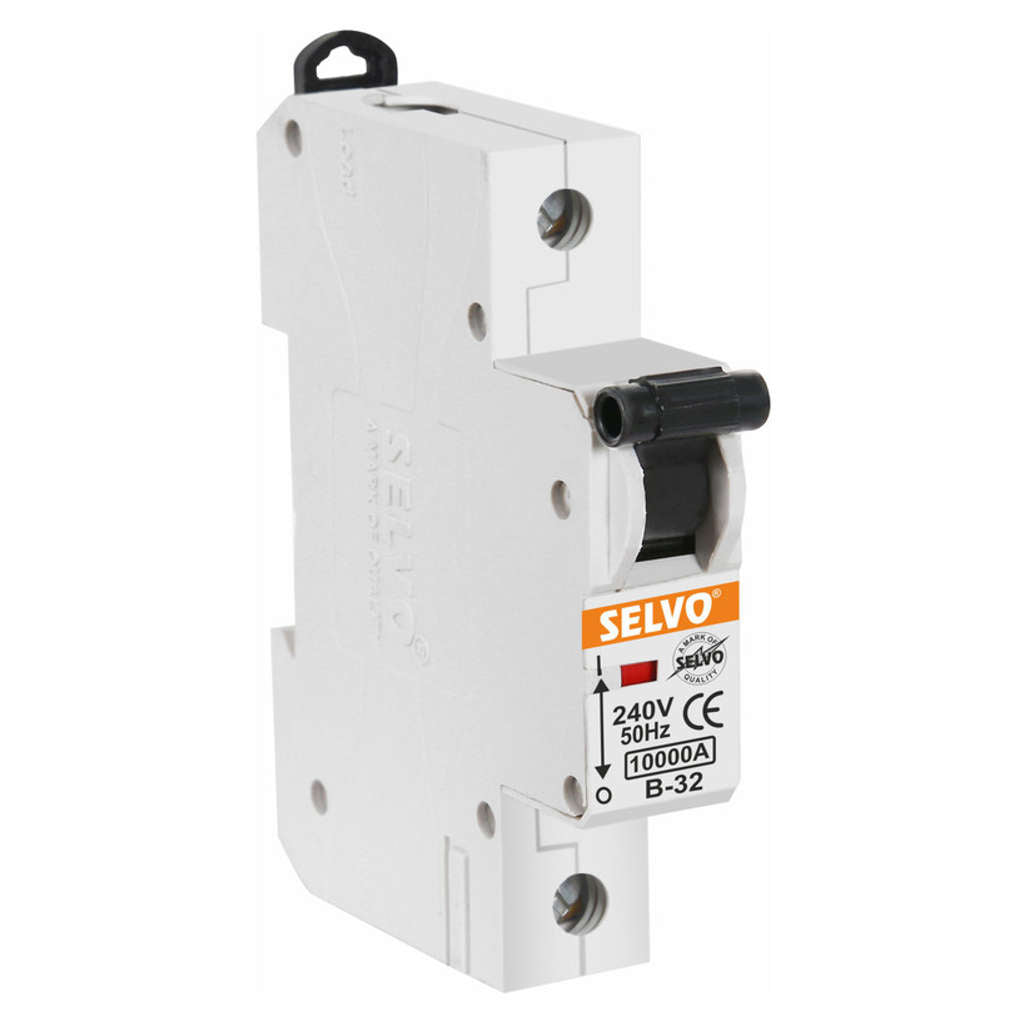

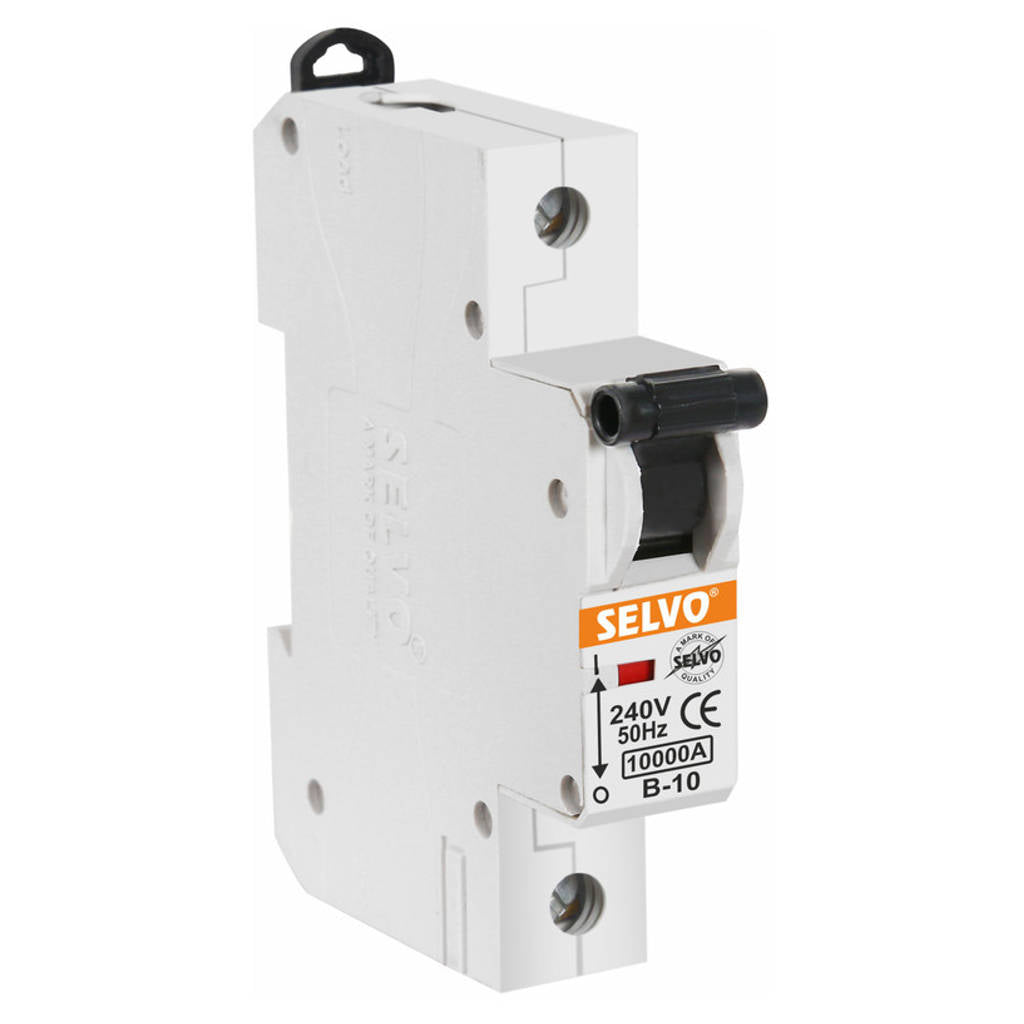

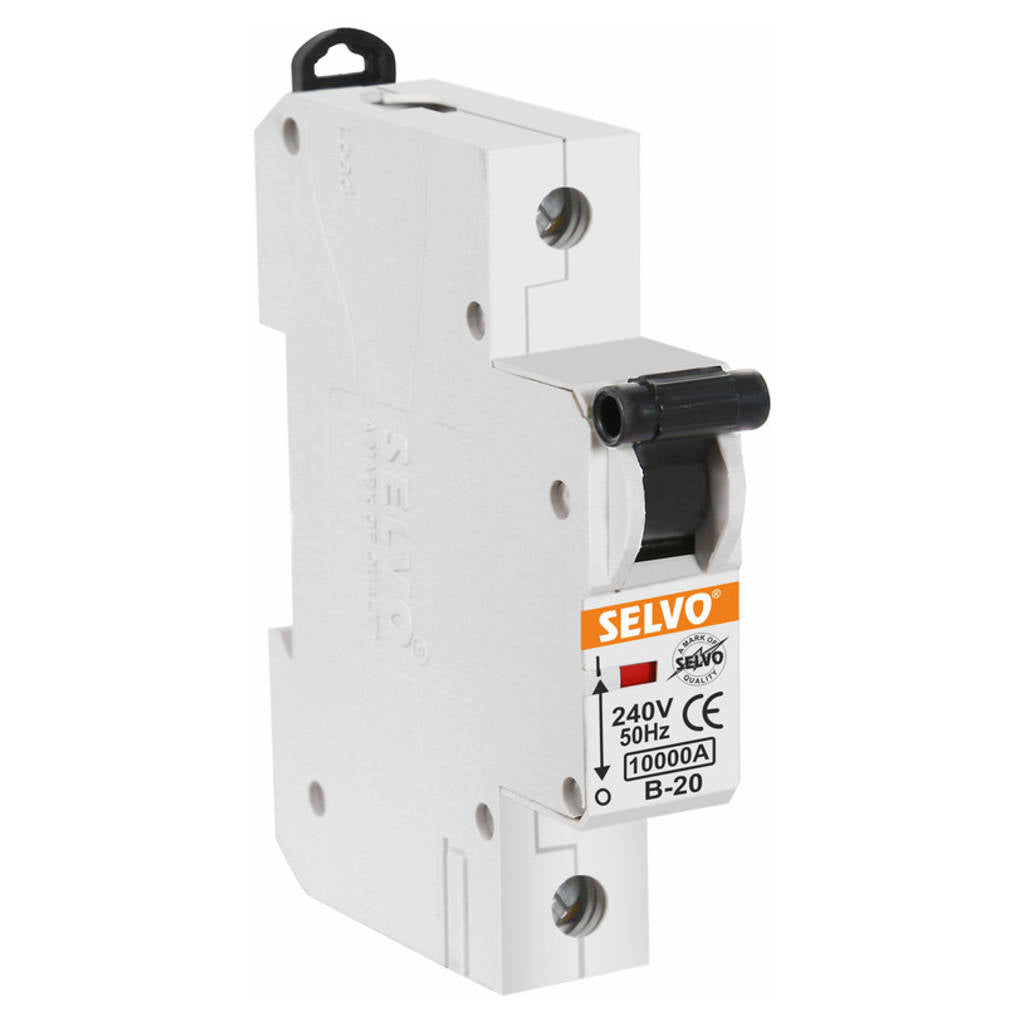

Selvo MCB Single Pole B Type 6-32A

Name: Selvo MCB Single Pole B Type 6-32A
Brand: Selvo
SKU: 1000102689
Price: 130.0 INR
Availability: InStock

Visit the Selvo Store

₹ 1,560.00

Quantity



Pack Qty : 12

Delivery Availability

Offers and Coupons

Bestomart Diwali Sale 2025

Use the coupon codes purchase of ₹4,000/- & above

Above ₹2,500
Use

LIGHT100

Above ₹7,500
Use

CRACKER200

Above ₹15,000
Use

SHINE300

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

SELVO MCB's are an automatically operated electrical switch which prevents electrical circuits from flow of excess current
SELVO MCB has accredited with ISO 9001:2015 certification for adhering to its excellent quality management system as part of its production process
The SELVO MCB is ISI mark as per IS/IEC 60898-1:2015 awarded by BIS which ensure vigilant & strict quality control
MCB's have been manufactured from PBT material which is a flame retardant body known for its extra strength & better insulation property and silver graphite anti weld contact tips which ensures long operating time of the device
high terminal capacity of 35 sq.mm that allows using aluminium conductors or bus-bars for connection & Bi - connect termination that allows connection of either cable or busbar single strip copper for better flexibility SELVO MCB are designed in such a way that provide sufficient air circulation between MCB's fixed adjacent to each other and the grooves are provided so that air circulate around individual poles resulting in cooler operation Easily mounted on the din rail ( standard size of din rail is 35 mm) using Bi stable din clip (Shown in black )and MCB can be easily fixed and removed from din rail in the distribution board
SELVO MCB's are designed in such a way that they comprise finger-proof terminals which eradicate the chances of accidental contact with live part that ensures the safety of installer When the contacts are separated in event of overload or short circuit conditions, an electric arc is formed ,than arc goes up through the arc-runner and enters into arc splitters and finally quenched MCB's are provided with combi-head screws which has both the standard slots that can be tightened by the standard screw drivers
The maximum tightening torque is 2Nm MCB's protect equipment or appliances from generation of high current of 10KA MCB's are designed with rapid arc quenching mechanism
It operates with high speed mechanism in which electro dynamic forces are setup by the heavy current due to short circuit , separating the contacts several times faster before it could reach the peak value , thus suppressing the high current
Mid-trip functionality, which is an inbuilt feature reflecting the difference between OFF and trip at time of fault of MCB Available in SP,SPN,DP,TP,TPN,FP versions
Features
High Quality Material
IP 20 Degree Protection Safety
Large & Dual Terminating Terminal Size
Ergonomic Delly/Knob
Positive Contact Position Indication
Natural Pole Protected
Certification
12 Plates Arc Champer
Breaking Capckity 10KA
BI -Stable Din Clip Position
Ease Of Clamping
Air Circulation

Product Specification

Brand	Selvo
Product Type	MCB
Product Code \| Rated Current	GSELSPB12077 \| 6 A GSELSPB12078 \| 10 A GSELSPB12079 \| 16 A GSELSPB12080 \| 20 A GSELSPB12081 \| 25 A GSELSPB12082 \| 32 A
Curve Type	B Type
Rated Frequency	50 HZ
No Of Pole	Single Pole
Magnetic Release Setting	Type B (3-5 In)
Circuit Breaking Capacity	10 KA
Degree Of Protection	IP 20
Dielectric Strength	2.5 KV
Rated Impulse Voltage	4 KV
Rated Insulation Voltage	660 Volt AC
No Of Operation	10000
Tightening Torque	2 Nm
Terminal Capacity	35 Sqmm
Creepage Distance	More Tan 3-4 mm
Contact Indication	Red(on) & Green(off)
Trip Indiction	Mid Trip Functionality
Energy Limiting Class	ELC 3
Ambient Temperature	-5°C to -55°C
Resistance To Humidity	95 %
Resistance To Fire	Flame Esctinguish Within 30 Sec After Removal Of Glow Wire
Shock Resistance	400 mm Free Fall
Mounting	Clip On DIN Rail
Case & Cover	Moulded Flame retardant thermoplastic material PBt
Busbar Connections	Pin/fork type
Termination	Bi-connect ( Bus bar/ Cable)
Installation Position	horizontal/vertical
Voltage	415 AC
Standarad	IS:60898-1
Dimension	7x2x9 Cm
Weight	0.1 Kg
Warranty	1 Year

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	C Curve 1 Pole MCB
Manufacturer Details	Selvo Electricals India B-46, Sector 67, Noida (U.P) Email:sales@selvoelectricalsindia.com
Packer Details	Selvo Electricals India B-46, Sector 67, Noida (U.P) Email:sales@selvoelectricalsindia.com
Country of Origin	India
