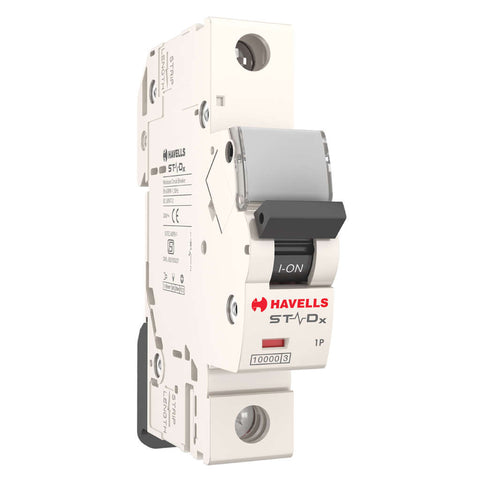

Havells C Series C Curve MCB Single Pole 0.5 To 63A

Visit the Havells Store

₹ 1,290.00

Quantity



Pack Qty : 3

Delivery Availability

Biggest Festive Deals

Use the coupon codes purchase of ₹5,000/- & above

Above ₹5,000 Use

MS150

Above ₹10,000 Use

MS200

Above ₹15,000 Use

MS250

Product Description

Inscription Window
Ensures circuit identification and hence reduces maintenance downtime
Application
Suitable for protection against overload & short circuit for Motor and other Inductive loads
Safety Terminals
To avoid improper cable termination, the safety terminals guide the cable towards the cage terminal for systematic termination
Large Cable Terminals
Suitable for copper and aluminum cables, these terminals are compatible with cables upto 35 mm² cross section area
Bi Stable Clip
Every device is provided with a dual position DIN rail clip, so it becomes much easier to change a device from a device bank connected to a bus-bar, without disturbing the existing wiring
Positive Contact Indication
It clearly indicates contact position through Flag Indication (Red-ON, Green-OFF) thus enhancing safety
Auxiliary
Field Fitable Auxiliary Contacts
(In accordance with IS/IEC 60898-1 & IS/IEC 60947-2) 240 V/415 V, 50 Hz, 10 Ka
*Actual product image may vary from that shown on the picture

Product Specification

Brand	Havells
Product Type	MCB
Product Code \| Rating	DHMZCSPF0X5-005 \| 0.5 A-5 A DHMZCSPF006-032 \| 6 A-32 A DHMZCSPF040 \| 40 A DHMZCSPF050 \| 50 A DHMZCSPF063 \| 63 A
Series	C
Type	C Curve
No Of Poles	Single Pole
Auxiliary Contacts	Yes
Busbar Connections Bottom Side	Pin / Fork Type
Busbar Connections Top Side	Pin Type
Dielectric Strength	2.5 kV
Electrical Or Mechanical Endurance (No Of Operations) Minimum	4000
Energy Limit Class	3
Humidity	95% RH
Installation Position	Vertical / Horizontal
Magnetic Release Setting	(5-10) In - C Curve
Mounting	Clip on DIN Rail (35 mm x 7.5 mm)
Case & Cover	Moulded, Flame-Retardant Thermoplastic Material
Dimensions (HXDXW)	87.5 x 62 x 17.7 mm
Net Weight Or Pole	125 g
Warranty	As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	C Curve 1 Pole MCB
Manufacturer Details	Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com
Packer Details	Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com
Country of Origin	India
