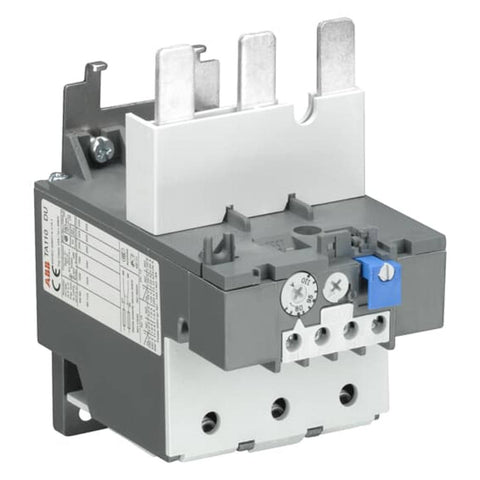

ABB Thermal Overload Relay 3 Pole TA110DU

Name: ABB Thermal Overload Relay 3 Pole TA110DU
Brand: ABB
SKU: 1000087959
Price: 8880.0 INR
Availability: OutOfStock

Visit the ABB Store

₹ 8,880.00

Quantity



Pack Qty : 1

Delivery Availability

Offers and Coupons

Ganesh Chaturthi Smart Deals

Use the coupon codes purchase of ₹3,000/- & above

Above ₹3,000 Use

GC100

Above ₹10,000 Use

GC200

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

The TA110DU thermal overload relay is an economic electromechanical protection device for the main circuit
It offers reliable and fast protection for motors in the event of overload or phase failure
The device has trip class 10A
Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication
The overload relays are connected directly to the block contactors

Product Specification

Brand	ABB
Product Type	Thermal Overload Relay
Product Code \| Type \| Relay range in Amps	1SAZ411201R1001 \| TA110DU-90 \| 66 ... 90 1SAZ411201R1002 \| TA110DU-110 \| 80 ... 110
Technical
Rated Operational Voltage	Auxiliary Circuit 440 V DC, Auxiliary Circuit 500 V AC, Main Circuit 690 V AC
Rated Frequency (f)	Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz, Auxiliary Circuit DC, Main Circuit 60 Hz, Main Circuit 50 Hz, Main Circuit DC
Rated Impulse Withstand Voltage (U imp )	Auxiliary Circuit 6 kV, Main Circuit 6 kV
Rated Insulation Voltage (U i )	690 V
Number Of Poles	3
Number Of Auxiliary Contacts NC	1
Number Of Auxiliary Contacts NO	1
Number Of Protected Poles	3
Conventional Free-Air Thermal Current (I th)	Auxiliary Circuit NC 5 A, Auxiliary Circuit NO 5 A
Rated Operational Current AC-15 (I e )	(120 V) NC 3 A, (120 V) NO 1.5 A, (240 V) NC 3 A, (240 V) NO 1.5 A, (400 V) NC 1.9 A, (400 V) NO 1 A, (440 V) NC 1 A, (440 V) NO 1 A ,(500 V) NC 1 A, (500 V) NO 1 A
Rated Operational Current DC-13 (I e )	(125 V) NC 0.25 A, (125 V) NO 0.25 A, (24 V) NC 1.25 A, (24 V) NO 1.25 A, (250 V) NC 0.12 A, (250 V) NO 0.04 A, (60 V) NC 0.25 A, (60 V) NO 0.25 A
Degree Of Protection	Housing IP20, Main Circuit Terminals IP10
Pollution Degree	3
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2, Flexible 1/2x 0.75 ... 2.5 mm2, Rigid 1/2x 0.75 ... 4 mm2
Connecting Capacity Main Circuit	Flexible 1x 16 ... 35 mm², Rigid 1x 16 ... 35 mm²
Tightening Torque	Auxiliary Circuit 1 ... 1.3 N·m Main Circuit 7.2 ... 9.6 N·m
Wire Stripping Length	Auxiliary Circuit 9 mm, Main Circuit 25 mm
Recommended Screw Driver	Auxiliary Circuit Pozidriv 2, Main Circuit Hexagon 4
Power Loss	at Rated Operating Conditions per Pole 2.4 W
Suitable For	A95, A110, AE95, AE110
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
Technical UL/CSA
Maximum Operating Voltage UL/CSA	Main Circuit 600 V AC
Contact Rating UL/CSA	(NC:) B600, (NO:) C600
Connecting Capacity Main Circuit UL/CSA	Flexible 1/2x 6-2/0 AWG, Stranded 1/2x 6-2/0 AWG
Connecting Capacity Auxiliary Circuit UL/CSA	Flexible 1/2x 18-14 AWG, Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA	Auxiliary Circuit 12 in·lb
Environmental
Ambient Air Temperature	Operation -25 ... +55 °C Operation Compensated -25 ... +55 °C Storage -40 ... +70 °C
Ambient Air Temperature Compensation	Yes
Maximum Operating Altitude Permissible	2000 m
Resistance To Shock Acc. To IEC 60068-2-27	11 ms Pulse 12g
Dimensions
Product Net Width	80 mm
Product Net Depth / Length	120 mm
Product Net Height	120 mm
Product Net Weight	0.75 kg
Warranty	As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	Overload Relay
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Country of Origin	India
