SKU # 1000020114

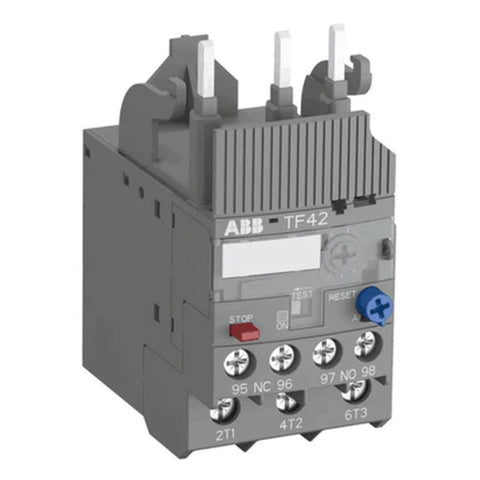

ABB Thermal Overload Relay Three-Pole 0.13A-38A TF42

ABB Thermal Overload Relay Three-Pole 0.13A-38A TF42


₹ 1,648.00

Quantity

Pack Qty : 1



Delivery Availability
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The TF42 thermal overload relay is an economic electromechanical protection device for the main circuit

  • It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication

  • The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory

  • Rated Operational Voltage : Auxiliary Circuit 600 V AC/DC , Main Circuit 690 V AC

  • Rated Insulation Voltage (Ui) : 690 V

  • Number of Poles : 3

  • Number of Auxiliary Contacts NC : 1

  • Number of Auxiliary Contacts NO : 1

  • Number of Protected Poles : 3

  • Conventional Free-air Thermal Current (Ith) : Auxiliary Circuit NC 6 A , Auxiliary Circuit NO 4 A

  • Degree of Protection : IP20

  • Pollution Degree : 3

  • Mounting Position : Position 1 to 5

  • Product Net Width : 45 mm

  • Product Net Height : 88.3 mm

  • Product Net Depth / Length : 70.5 mm

  • Product Net Weight : 0.13 kg

Product Specification

Rated Operational Current (Ie)

Product id

Type

0.13 A

1SAZ721201R1005

TF42-0.13

0.17 A

1SAZ721201R1008

TF42-0.17

0.23 A

1SAZ721201R1009

TF42-0.23

0.31 A

1SAZ721201R1013

TF42-0.31

0.41 A

1SAZ721201R1014

TF42-0.41

0.55 A

1SAZ721201R1017

TF42-0.55

0.74 A

1SAZ721201R1021

TF42-0.74

1.0 A

1SAZ721201R1023

TF42-1.0

1.3 A

1SAZ721201R1025

TF42-1.3

1.7 A

1SAZ721201R1028

TF42-1.7

2.3 A

1SAZ721201R1031

TF42-2.3

3.1 A

1SAZ721201R1033

TF42-3.1

4.2 A

1SAZ721201R1035

TF42-4.2

5.7 A

1SAZ721201R1038

TF42-5.7

7.6 A

1SAZ721201R1040

TF42-7.6

2-10 A

1SAZ721201R1043

TF42-10

13 A

1SAZ721201R1045

TF42-13

16 A

1SAZ721201R1047

TF42-16

20 A

1SAZ721201R1049

TF42-20

24 A

1SAZ721201R1051

TF42-24

29 A

1SAZ721201R1052

TF42-29

35 A

1SAZ721201R1053

TF42-35

38 A

1SAZ721201R1055

TF42-38
