LAST SOLD AT ₹ 574,542.00

SKU # 1000009434

Ador Welding Equipment Maestro 1200 (I)

Ador Welding Equipment Maestro 1200 (I)


₹ 574,542.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

Salient Features

  • Inverter based digitally controlled Welding head and Power source.

  • High efficiency and high power factor – resulting in substantial energy saving over conventional SAW outfits

  • Enhanced Reliability due to SMD technology.

  • Power source is CC-CV type and capable for MMA/GOUGING and SAW processes.

  • SAW Welding can be done in either CV or CC modes. In the Constant Current mode of SAW welding, advanced Adaptive control technology is utilized to obtain the most stable arc parameters, highest level of penetration, and excellent weld bead finish

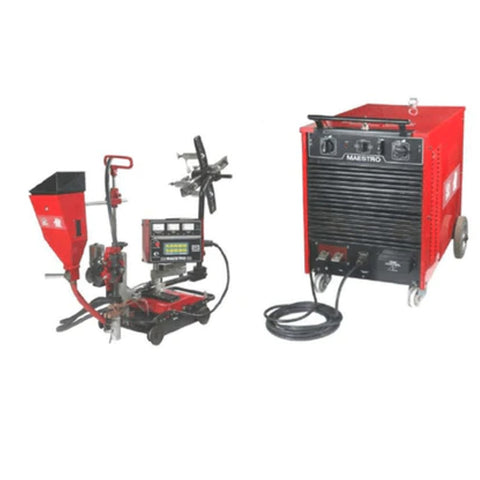

  • The complete system consists of inverter based power source; tractor / boom mounted welding head and interconnecting cables. SAW flux is used for shielding weld metal against external atmosphere.

  • Inverter based power source is energy efficient giving almost 30% energy saving over conventional type of machines.

  • User can save and recall up to ten programs.

  • Better user interface having 128 X 64 character LCD display for selecting various modes and button, LED and indicator lamp, which helps in easy operation of the equipment.

  • Automatically selects the MMA or SAW mode based on welding head connections to power source.

Front Panel Functions

  • Mains On 'Green' Colour Led Indication

  • Operation Mode Indications (MMA / Gouging, Saw, Remote)

  • Trip 'Red' Colour Led Indication of machine is Under Protection Mode.

  • 4 digit digital displays for Voltage and Current.

  • Current adjustment Encoder .

Welding Head Control Panel
The Welding Head Control panel consists of four encoders for selecting welding parameters selection, welding current selection, welding voltage selection and carriage speed selection respectively.

  1. Welding parameters can be seen on 128*64 character LCD as

  • MATERIAL: MS/SS

  • DIAMETER: 2-5mm

  • WIRESPEED: 0-4 M/MIN

  • UP TIME 01-10: sec

  • SAVE: 01-10

  • RECALL: 01-1

  1. Proper parameters can be selected by rotating the respective encoders.

  2. A facility has been given for saving the welding parameters settings in at most 10 memory locations. So the same settings can again be recalled even after turning On the machine, by rotating RECALL option.

  3. Another special feature of UP TIME is given to the user in between 1 second to 10 second, so that after welding is OFF, wire won't stick in to the weld pool. In this case wire feeder motor will rotate in opposite direction to pull out the wire for the specified seconds.

  4. The Front panel consists of seven tact switches, for selecting various functions such as carriage movement direction (FORWARD / REVERSE) selection, carriage motor ON / OFF command, wire inch UP / DOWN switch and welding ON / OFF switch.

  5. CC-CV Mode Selection switch for SAW is provided on panel to suit specific SAW Welding requirements

Warranty:

  • One year from the date of commissioning. ADOR WELDING LIMITED warrants that all new equipment sold from Plant/Area Offices / Authorised Distributors are free from defects in materials and workmanship and will perform in full accordance with applicable specifications.

  • In view of continuous development, ADOR WELDING LIMITED reserves the right to modify/change the design and /or the specifications without any prior notice.

  • Backed by dedicated customer care package.

Product Specifications

Technical Specifications Welding Head (WH 15 I)

Input

Unit

Value

Input Supply

Voltage

Volt

42 V (From Power Source)

Output

Welding Current Range

Amps

100-1200

Duty Cycle 100% Continues

Amps

1000

Welding Voltage Range

Volts, DC

26-44

Welding Carriage Speed

M/Min

0.1-1.6

Wire Feed Speed

M/Min

0-4

General

Range Of Adjustment Vertical

mm

140

Transverse To Head Travel - Horizontal

mm

140

Parallel To Head Travel - Horizontal

mm

140

Max Swivel

Transverse To Hand Travel

Degree

45°

Parallel To Head Travel

Degree

30°

Horizontal Open Swing

Degree

270°

Standard Bored Spool

mm

285-315 (Adjustable)

Welding Flux-Hooper Capacity

Kg./Ltr.

10/7

Wire Spool Weight

Kg

25

Suitable Welding wire Diameter

mm

2.0,2.5,3.15,4.0,5.0

Dimension (L x W x H)

mm

1500 x 1030 x 580

Total Weight Without Flux & Wire

Kg.

95


Technical Specifications

Parameter

Unit

Value

Input

Supply Voltage, Phase Frequency

Volts AC

415 V +15% -10%, 1 Phase, 50/60 Hz

Input Power @ 415 VAC @ 100% duty cycle

KVA

55

Input Power @ 415 VAC @ 60% duty cycle

KVA

66

Input Supply Current @ 415 VAC @ 100% duty cycle (1000)

Amps DC

76

Input Supply Current @ 415 VAC @ 60% duty cycle(1200)

Amps DC

92

Efficiency

%

> 85

Power Factor

-

Upto 0.93

Output

Open Circuit Voltage @415 V Input Supply

Volts DC

90 V

Welding Current Range (CC-GOUGING Mode)

Amps

100-1200

Welding Voltage Range (CC-SAW Mode)

Amps

26-44

Welding Current (40°C) @ 100% duty cycle

Amps DC

1000

Welding Current (40°C) @ 60% duty cycle (10 min DC)

Amps DC

1200

Welding Electrode Sizes (Dia.) In MMA Aplication

mm

3.2,4,5,6.3

Welding Electrode Sizes (Dia.) In GOUGING Aplication

mm

Upto 12

SAW Welding Wire Size (Dia.)

mm

2.5,3.2,4,5 mm

Remote Controller Optional (Can be Used In MMA/ GOUGING Process only)

10 Meter

Provide as Optional for Remote Current Detting

General






Front Panel Functions





-

Mains On 'Green' Coloir Indication

Operation Mode Indications (MMA/GOUGING, SAW, REMOTE)

Trip 'Red' Colour LED for indication Machine is Under Protection Mode

4 Digit Display for Voltage & Current

Current Adjustment Encoder


Protections


-

Over Voltage, Under Voltage, Single Phasing, Over Temperature

Over Temperature Protection

Cooling

Type

Forced Air

Class Of Insulation

-

H

Degree Of Protection

-

IP23

Dimensions L x W x H (Without handle)

mm

930 x 525 x 950

Weight (Approx)

Kg

115
