Available

SKU # 1000003256

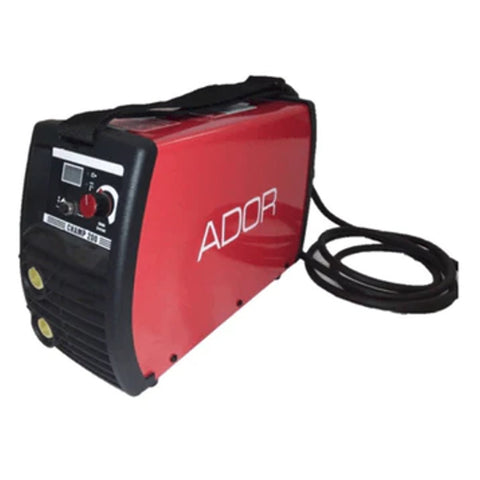

Ador Welding Machine CHAMP 200

Ador Welding Machine CHAMP 200


₹ 23,576.00

Quantity

Min Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

General Features

  • The new word Class indigenous inverter based DC Welder

  • Single phase inverter based, High efficiency DC Welder

  • High frequency IGBT based PWM Inverter

  • TIG Welding possible With lift Arc technique

  • Light Weight, Compact and Portable for easy handling

  • Compatible to power Generaltor supply

Salient Features

  • Latest PWM inverter technology

  • IGBT based

  • Smooth and Stable arc With minimum spatter

  • Hot start feature available as a standard

  • TIG Welding With scratch/lift arc start

Warranty

One year from the date of purchase. ADOR Welding Limited warrants that a new equipment old from Plant/Area Offices / Authorised Distributors are free from defects in materials and workmanship and will perform in full accordance with applicable specifications.

Product Specifications

Technical Specifications

Unit

Champ 200

Input

Voltage

Volts

240, +10%, -15%

Phase

No.

1

Frequency

Hz

50/60

Max. Input KVA

at 100% duty Cycle

KVA

5

Efficiency

%

84

Output

Open Circuit Voltage at 240 Vac

Volts

68 +/-3

Welding Current Range

Amps

10-200

Welding Current (40°C 10 minute Cycle)

at 35% duty Cycle

Amps

200

at 60% duty Cycle

Amps

150

at 100% duty Cycle

Amps

120

General

Suitable Welding Electrode size

mm Ø

1.6, 2.5, 3.2 and intermittent 4

Hot Start

-

120% of the set current

Antistick

-

Built in

Ingress Protection

Class

IP23

Cooling

Type

Forced Air

Insulation

Class

F

Welding Output Terminals

-

Stud type

Dimensions

Length

mm

415

Width

mm

155

Height

mm

300

Weight

Kg

7
