LAST SOLD AT ₹ 253,110.00

SKU # 1000003273

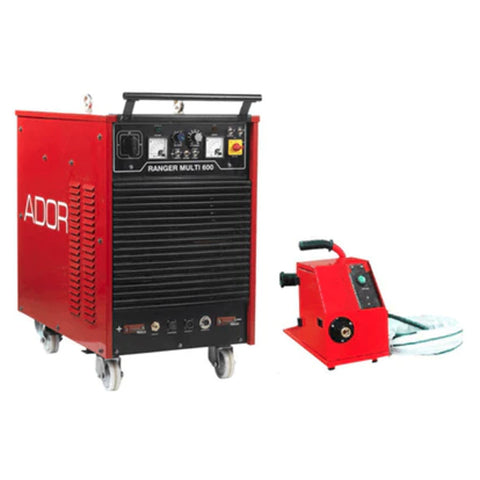

Ador Welding Machine RANGER MULTI 600

Ador Welding Machine RANGER MULTI 600


₹ 253,110.00

Quantity

Pack Qty : 1.0



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

General Features

  • The Heavy Duty Multipurpose Thyristorized Welding Rectifier for MMA / MIG / TIG / GOUGING Applications

  • Heavy duty Thyristorized Multipurpose Welding Rectifier with Double-star configuration

  • Suitable for multi process welding applications like SMAW / GMAW / FCAW / GTAW and GOUGING processes within shop floor as well as at open yards and project sites (with dueprotection or shield against windy air)

  • Suitable for wide range of metals like Carbon Steel, Stainless Steel, Aluminium and its alloys,withappropriate or recommended consumable

  • Specifically designed for heavy duty, structural welding, machine building applications

Salient Features

  • Rugged construction -most reliable and dependable thyristor based power source for high quality welding processes

  • Hex- phase, full wave full control bridge rectification circuit reduces ripple in the welding output - resulting spatter-free welding

  • Special design and construction of Transformer - resulting faster response time and excellent Arc dynamics

  • Automatic Globule Detachment technique keeps the tip ready for next welding cycle

  • Choice of 2 roll and 4 roll wire-feeders and different torches available for different industrial applications

  • Quick release wire feed roller mechanism enables operator to change the wire spool quickly, minimising the unproductive time and thus increasing the productivity on the shop floor

  • Power source protected from Over Voltage, Under Voltage supply, Single phasing, Over load/ overheating and very high secondary short circuit current

Warranty:

One year from the date of purchase. ADOR WELDING LIMITED warrants that all new equipment sold from Plant/Area Offices / Authorized Distributors are free from defects in materials and workmanship and will perform in full accordance with applicable specifications.

Product Specifications

Technical Specifications

Unit

TCVR 600

Characteristic control



CC / CV

Input Supply

Voltage

Volts AC

415, +10%, -10%

Phase

No

3

Freequency

Hz

50/60

Maximum Input Current

Amps AC

55

Recommended Switch Fuse Rating

60

Input KVA at 100% Duty Cycle

KVA

31.7

Input KVA at 60% Duty Cycle

40

Output

Open Circuit Voltage

Volts DC

80 (CC Model)

65 Max (CV Model)

Welding Current Range

Amps DC

20-600 (CC Model)

75-600 (CV Model)

Welding Current 40ºC with 10 minutes Duty Cycle





At 60% Duty Cycle

Amps DC

600

At 100% Duty Cycle

465

General

Ingress Protection



IP23

Cooling

Class

Forced Air

Insulation

Type

H

Welding Output Terminals

Class

Stud Type for Lug Type Cable Connections

Dimensions

Length

mm

980

Width

550

Height (With Handle)

960

Weight

Kg

227

Wire Feeder

Model

FEEDLITE 40 NEH - C (4 Roll)

Weight (Without Spool)

Kg

16

Dimensions (LxWxH)

mm

563x230x410

Suitable for Wire Spool Capacity

Kg

15

Wire Feeder Fitted With Rollers

mm

1.2/1.6 for Solid Wire 2 no

Wire Feeder Motor Voltage

Volts DC

42

Wire Drive Motor

Type

Permanent Magnet DC

Wire Roll Drive

No

4

Wire Feed Speed

Meters/ minutes

1.5 - 18

Suitable For Wire Sizes

mm

0.8, 1, 1.2, 1.6


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Welding Machine

Manufacturer Details

Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236

Packer Details

Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236

Country of Origin

India
