LAST SOLD AT ₹ 139,999.00
SKU # 1000003263

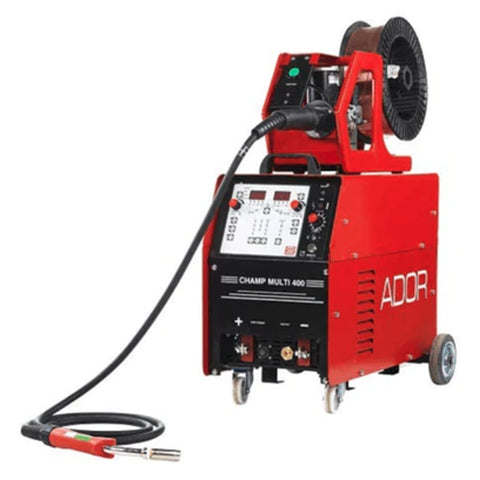

Ador Welding Machine CHAMPMULTI 400
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
Salient Features :
-
Champ Multi- 400 Is Multi Processwelding Outfits With Inverter Based Welding Power Source.
-
The Igbt Power Module, High Frequency Transformer And Fast Recovery Diode Are Used As Key Device For Power Conversion And Transmission To Assure Better Efficiency And Performance.
-
The Welding Power Source Has Both Constant Current (CC) And Constant Voltage Characteristics (CV), Which Are Suitable For Mma And Mig/Mag And Fcaw Applications.
-
Set Output Parameters Are Constant Against Input Supply Variations.
-
Power Source Is Protected Against Single Phasing, Under Voltage, Over Voltage, Short Circuit And Temperature Rise.
-
Water Cooled Version Available For Champ Multi 600 As Option.
-
Mma Process With This Outfit Is Most Suitable For All Kinds Of Electrodes Including Celwel For Fabrication Work, Pipe Welding, Site Construction Etc.
-
Gmaw Process Is Suitable For Welding In Semiautomatic/ Automatic Mechanism For Welding Ms, Ss And Al Materials With Solid And Flux Core Wires (FCAW Mode).
Warranty :
One year from the date of commissioning. ADOR WELDING LIMITED warrants that all new equipment sold from Plant/Area Offices / Authorised Distributors are free from defects in materials and workmanship and will perform in full accordance with applicable specifications.
-
In view of continuous development, ADOR WELDING LIMITED reserves the right to modify/change the design and /or the specifications without any prior notice.
-
Backed by dedicated customer care package.
Product Specifications
Technical Specifications
|
Parametre |
Unit |
Value |
|
Nominal Input Voltage |
V AC |
415 V, 3 PH |
|
Input Voltage Range |
V AC |
415 (+15% - 10%) |
|
Phase |
No |
3 |
|
Frequency |
Hz |
50/60 |
|
Efficiency at 100% duty cycle |
% |
>90 |
|
Power Factor at 100% duty cycle |
|
0.93Max |
|
Open Circuit Voltage In MMA Mode at415v, 3 Phase |
Kv |
84 V |
|
Open Circuit Voltage In MIG Mode at415v, 3 Phase |
V DC |
55 V |
|
Open Circuit Voltage In TIG Mode at415v, 3 Phase |
|
84 V |
|
Welding Current Range In MMA Mode |
|
50-400 A |
|
Welding Current Range In TIG Mode |
A DC |
10-400 |
|
Welding Current Range In MIG Mode |
|
40-400 |
|
Welding Current at 100% duty cycle (10 minute cycle) Welding Current at 60% duty cycle (10 minute cycle) |
A DC |
310 400 |
|
Input Power (In MMA Mode) at 100% duty cycle |
|
12.0 |
|
Input Power (In MIG Mode) at 100% duty cycle |
KVA |
11.0 |
|
Input Power (In TIG Mode) at 100% duty cycle |
|
9.0 |
|
Crater Current Range In MIG Mode |
|
500-400 A |
|
Crater Current Voltage In MIG Mode |
- |
14-40 V |
|
Cooling |
Type |
Force d Air |
|
Class of Insulation |
Class |
H |
|
Degree of Protection |
- |
IP23 |
|
Protections Auto Resettable |
- |
Over Voltage, ervoltage, Single– UndPhasing, Over Temperature |
|
Suitable Welding Electrode Size Dia. - In MMA Mode |
mm |
2.5, 3.2 , 4, 5, 6MM Diameter |
|
Suitable Welding Electrode Size Dia. - In MIG Mode |
mm |
0.8, 1.0, 1.2, 1.6 MM Diameter |
|
Dimensions L x W x H |
mm |
650 x 450 x 570700 x 460 x 650 |
|
Auxiliary Outputs On Back Panel |
V AC |
110 V – Gas Heater, 230 V – Water Cooling Unit |
|
Front Panel Functions |
- |
MMA/ MIG /FCAW /TIGProcess Selection |
|
MIG / FCAW MODE |
Separate Switches To Check OCV, Gas Flow & Wire Inch. |
|
|
Selection Switches For Wire Dia, Materials & Ga For Synergic Application. |
||
|
Welding Mode 2t / 4t / Spot / Multispot Selection Switch. |
||
|
Auto/manual Selection Switch. |
||
|
Front Panel Functions |
MIG / FCAW Mode |
Save & Recall Switches To Save & Recall 10 Programs. |
|
Facility To Set Preflow, Post Flow Burnback, Spot & Pause Time Before Welding. |
||
|
- |
3 Digits Digital Display For Voltage and Current. |
|
|
MMA / TIG Mode |
Current Setting By Encoder |
|
|
Encoder For Arc Force Setting With On/ Off Facility Switch Only In MMA Mode. |
||
|
Remote Control |
- |
In MMA Mode. Encoder For Arc Force Setting With On/ Off Facility Switch Only In MMA Mode. |
|
Mounting Wheels Of The Power Source |
- |
Remote Control With Cable For Setting Voltage and Current |
|
Lifting Arrangement |
- |
Wheel Mount |
|
Front: Swivel, Rear: Fixed Handle Provided |
||
|
Weight (Approx.) |
Kg. |
52 |
Download User manual
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Welding Machine |
Manufacturer Details |
Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236 |
Packer Details |
Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236 |
Country of Origin |
India |
