SKU # 1000003259

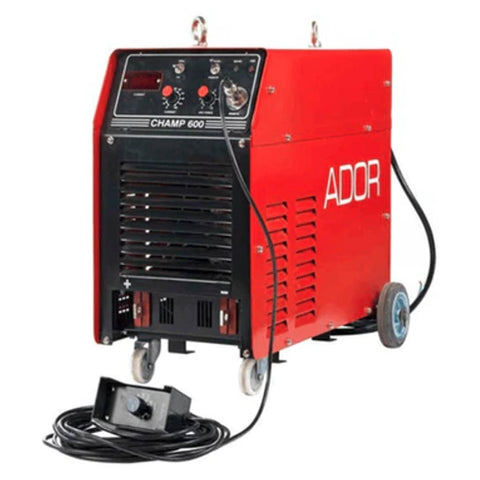

Ador Welding Machine CHAMP 600

Ador Welding Machine CHAMP 600


₹ 129,800.00

Quantity

Pack Qty : 1.0



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

General Features

  • Three phase inverter based, high efficiency and high power factor DC Welders

  • Enhanced Reliablity due to SMD technology

  • High frequency IGBT based Rectifier

  • Arc force adjustment on panel

  • Suitable for Gouging application and long distant Welding

  • TIG Welding possible With external HF Unit

  • Suitable for a Electrodes incuding 6010, 7010G and 8010G

Salient Features

  • Latest PWM inverter technology

  • IGBT based

  • High efficiency, High power factor and High Reliablity factor

  • Smooth and Stable arc With minimum spatter

  • Suitable for Gouging Application and long distant Welding

  • Arc force adjustments provided on the front panel

  • TIG operation possible With external HF TIG

  • control unit.

Protections With Auto Reset

  • Input supply Voltage protections for over and under Voltage

  • Over Temperature

  • Protection against Single phasing

Warranty

One year from the date of commissioning. ADOR Welding Limited warrants that a new equipment sold from Plant/Area Offices / Authorised Distributors are free from defects in materials and workmanship and will perform in full accordance with applicable specifications.

Product Specifications

Technical Specifications

Unit

Champ 600

Input Input supply Voltage

Volts.

415 , +15%, -10%

Phase

No.

3

Frequency

Hz

50/60

Input KVA at 415 Vac at 100% duty Cycle

KVA

22.0

at No Load

KVA

0.31

Power Factor

CosØ

0.93

Efficiency

%

87

Output

Open Circuit Voltage

Volts

89

Welding Current Range

Amps

20-600

Welding Current (40°C) (10 minute Cycle) at 60% duty Cycle

Amps

600

at 100% duty Cycle

Amps

465

General

Suitable for Welding Electrode Size

mm Ø

2.5, 3.2, 4, 5 and 6.3 mm

Suitable for Gouging Electrode Size

mm Ø

Max. up to 9 mm 12mm –Limited use

Arc force setting

-

Adjustable by Potentiometer

Current Display (Actual)

-

4 digit –7 segment digital panel pcb

Ingress Protection

Class

IP23

Cooling

Type

Forced Air

Insulation

Class

H

Welding Output Terminals

-

Stud type for ug type cable connections

Dimensions

Length

mm

700

Width

mm

460

Height (Without handle)

mm

575

Height (With handle)

mm

630

Weight

Kg

58
