SKU # 1000139338

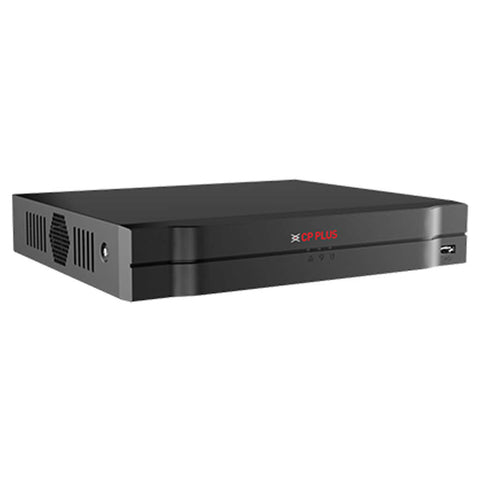

CP Plus 16 Channel Digital Video Recorder CP-UVR-1601E1-IC2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
-
Max 18 channels IP camera inputs, each channel up to 6MP
-
Max 64Mbps Incoming Bandwidth
-
Instastream/H.265 dual-stream Video Compression
-
Support 1 SATA HDD up to 16TB, 2 USB Ports
-
Up to 8 channels video stream (analog channel) SMD Plus
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro Lite
-
Functions
-
Signal Auto-Adapt
-
This DVR recognizes the signal type (CVI, TVI, AHD, CVBI) and automatically adapts without requiring any manual intervention
-
This has provided much ease to the user since signal compatibility was always a towering concern
-
Addnl IP Cameras Support
-
In some installations, customers have specific features and functions that are available in IP cameras only, such as two-way communication, edge storage, alarm I/O, etc
-
CP PLUS DVRs provide additional IP camera support to provide flexibility so that the desired solution features can be made accessible
-
Secured Password Policy (SPP)
-
Amid rising security challenges such as hacking, phishing, etc., CP PLUS has framed strict policies to increase the security of surveillance systems, in which it makes it mandatory to change the default password to one that is alphanumeric
-
Smart Motion Detection (SMD Plus)
-
CPPLUS has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
KVMS Pro Lite
-
The KVMS Pro Lite is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is re-leased with the surveillance hardware and exclusively supports CP PLUS devices
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
DVR |
|
Product Model |
CP-UVR-1601E1-IC2 |
|
Processor |
Industrial-grade processor |
|
Operating System |
Embedded LINUX |
|
IP Camera Input |
Up to 18 channels of IPC access 2 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled |
|
Two-Way Talk |
Support (share the same audio input with the first channel) |
|
User Interface |
Web; GUI |
|
SMD Plus By DVR |
8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
|
Video Input |
16 channel, BNC |
|
Video Output |
1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
Encode Strategy |
AI Instastream/Instastream |
|
Compression |
H.265/H.264+/H.264 |
|
Camera Input |
1. CVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 2. TVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 3. AHD: 1080p@ 25/30 fps, 720p@ 25/30 fps 4. CVBS: PAL/NTSC |
|
Video Display Split |
1/4/8/9/16 |
|
Encoding Capacity |
Main Stream: the 1st channel 1080N/720p (1 fps-25/30 fps), others 1080N/720p (1 fps-15 fps); 960H/D1/CIF(1 fps-25/30 fps) Sub stream: CIF (1 fps-7 fps) |
|
Bit Rate |
32 kbps-6144 kbps |
|
Audio Input |
1 channel RCA 16-channel BNC (Coaxial Audio) |
|
Audio Output |
1 channel, RCA |
|
Audio Compression |
G.711A, G.711U, PCM |
|
General Alarm |
Motion detection, video loss, tampering |
|
Anomaly Alarm |
No disk, disk error, low space, offline, ip conflict, MAC conflict |
|
Alarm Linkage |
Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Hard Disk |
1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature |
|
Audio Sample Rate |
8KHz, 16 bit Per Channel |
|
Audio Bit Rate |
64Kbps Per Channel |
|
Playback |
1/4/9/16 Ch |
|
Recording Mode |
General, motion detection, alarm |
|
Playback Mode |
Instant playback, general playback, event playback, tag playback |
|
Backup Mode |
USB Device/Network |
|
Interface Ports |
2 USB Ports (2.0) |
|
Network Mode |
Single-address mode |
|
Ethernet |
1 (10/100 Mbps Ethernet port, RJ-45) |
|
Protocols |
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; InstaOn Cloud, ONVIF 21.06; CGI Conformant |
|
Power Supply |
DC12V/2A |
|
Power Consumption |
<10W(without HDD) |
|
Working Temperature |
-10°C ~ +55°C (+14°F ~ +113°F), 0 ~ 90% RH |
|
Dimension |
260 × 231.4 × 47.6 mm |
|
Weight |
1.42 kg (without HDD) |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
26 x 23.1 x 4.7 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
1.5 kg |
|
Generic Name |
16 Channel DVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
