SKU # 1000139407

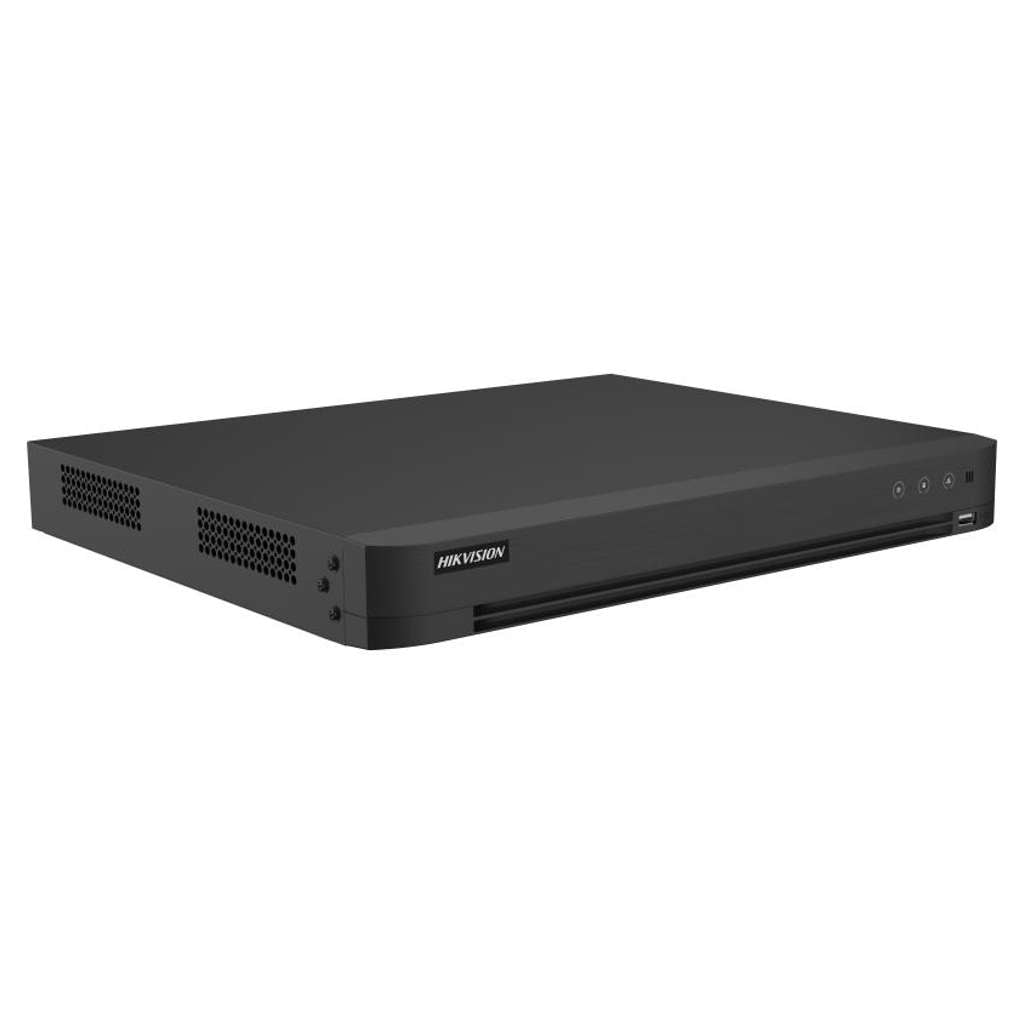

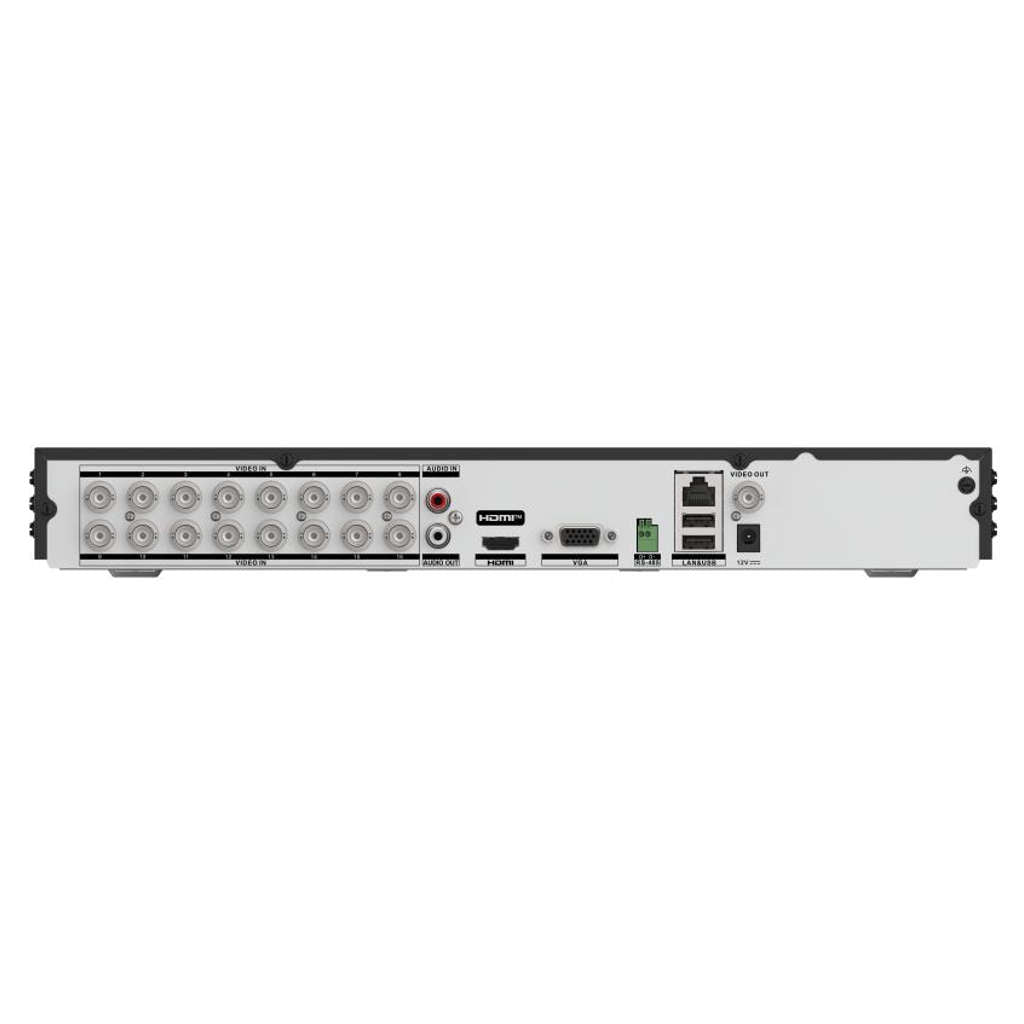

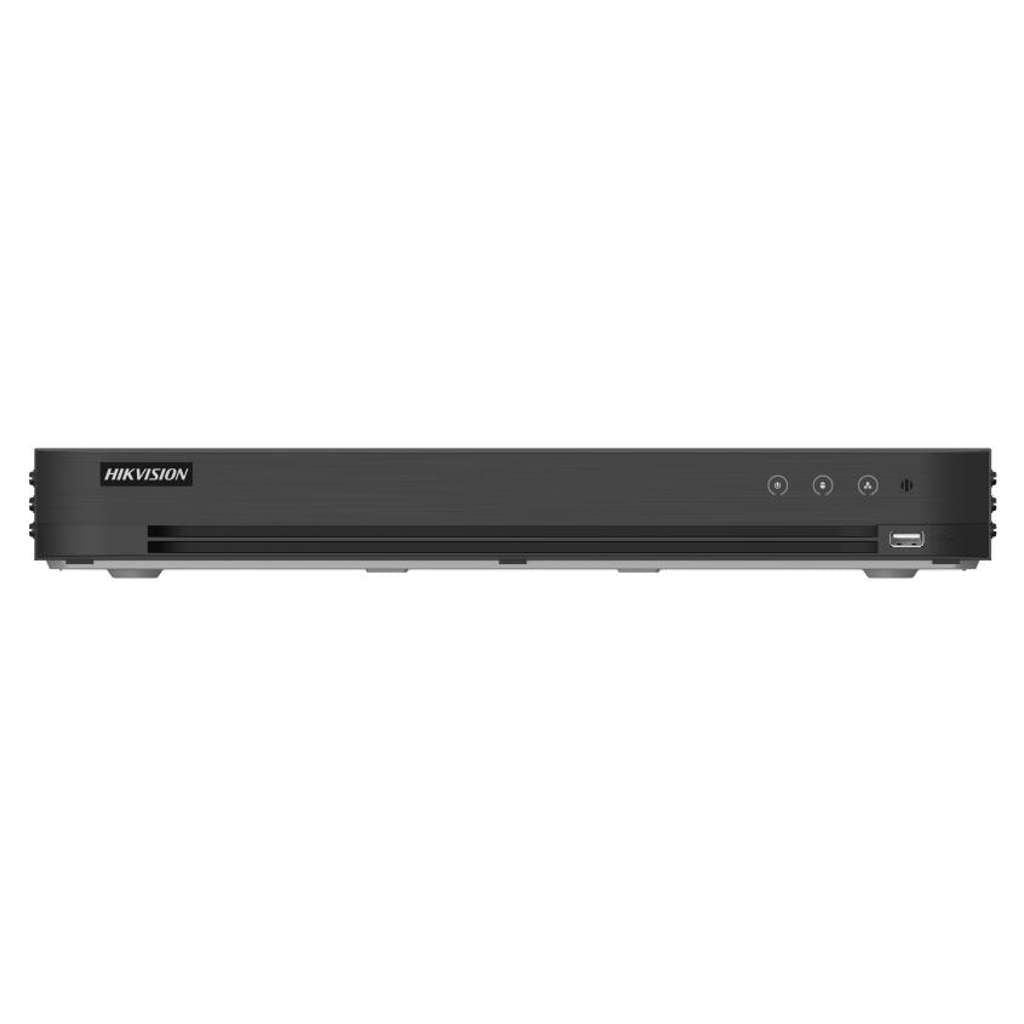

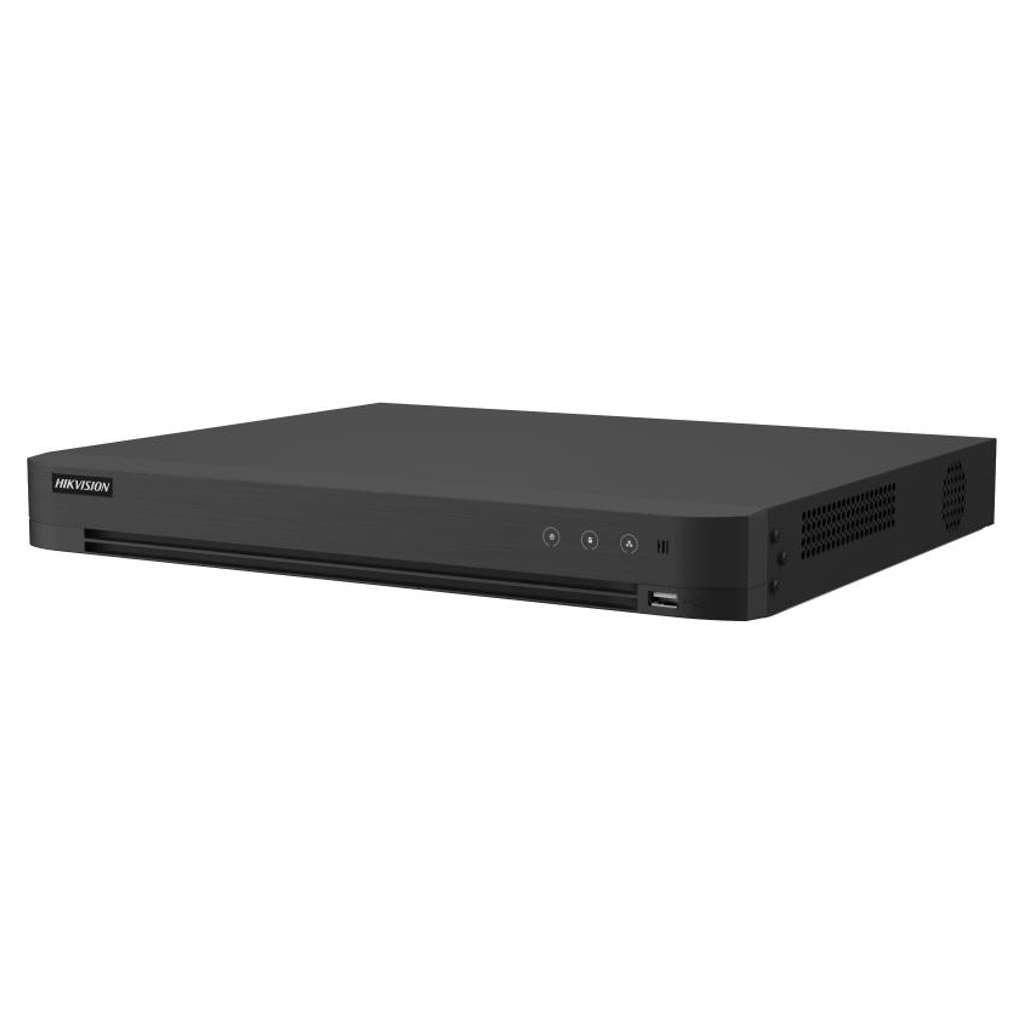

Hikvision Pro Series AcuSense DVR 5MP 16 Channel IDS-7216HUHI-M2/X
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
16 channels and 2 HDD 1U AcuSense DVR
-
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
-
Support 8-ch AcuSearch Technology
-
Encoding ability up to 4K/8MP@ 8fps; 3K/5MP @12fps
-
Up to 32 channels IP camera inputs, each channel up to 8MP
-
Up to 241080P@30fps decoding ability
-
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
-
Support All channels Motion Detection technology
-
Efficient H.265 pro+ compression technology
Product Specification
|
Brand |
Hikvision |
|
Product Type |
DVR |
|
Product Model |
IDS-7216HUHI-M2/X |
|
Facial Recognition |
|
|
Face Picture Library |
Up to 16 face picture libraries; HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash |
|
Face Picture Comparison (Captured From Camera) |
4-ch face picture comparison alarm (HD analog camera) |
|
Motion Detection 2.0 |
|
|
Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
|
Perimeter Protection |
|
|
Human/Vehicle Analysis |
Up to 8-ch (advanced model) |
|
Facial Detection |
|
|
Facial Detection And Capture |
Face picture detection, face picture search； 4-ch face picture capture |
|
Video And Audio |
|
|
IP Video Input |
16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
|
Analog Video Input |
16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
HDMI Output |
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
|
VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
|
CVBS Input |
PAL/NTSC |
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
Synchronous Playback |
16-ch |
|
HDTVI Input |
8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
|
AHD Input |
5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
|
HDCVI Input |
8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Audio Input |
1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ), 16-ch via coaxial cable |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
|
Recording |
|
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Encoding Resolution |
8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
|
Frame Rate |
Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
|
Video Bitrate |
32 Kbps to 10 Mbps |
|
Dual-Stream |
Support main stream or sub stream |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bitrate |
64 Kbps |
|
Decoding |
|
|
Decoding Capability |
up to 24-ch 1080P@30fps |
|
Network |
|
|
Total Bandwidth |
256 Mbps |
|
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, ISUP |
|
Remote Connection |
128 |
|
Network Interface |
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
2 SATA interfaces |
|
Capacity |
Up to 12 TB capacity for each disk |
|
Serial Interface |
RS-485 (half-duplex) |
|
USB Interface |
Front panel: 1 × USB 2.0 Rear panel: 2 × USB 3.0 |
|
Alarm In/Out |
N/A (optional to support) |
|
General |
|
|
Power Supply |
12 VDC, 5 A |
|
Consumption |
≤ 15 W (without HDD) |
|
Working Temperature |
-10 °C to +55 °C (+14 °F to +131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimension (W × D × H) |
384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch) |
|
Weight |
≤ 2.1 kg (4.6 lb) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
38.4 x 31.7 x 5.2 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
2.1 kg |
|
Generic Name |
16 Channel DVR |
|
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
|
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
|
Country Of Origin |
India |
