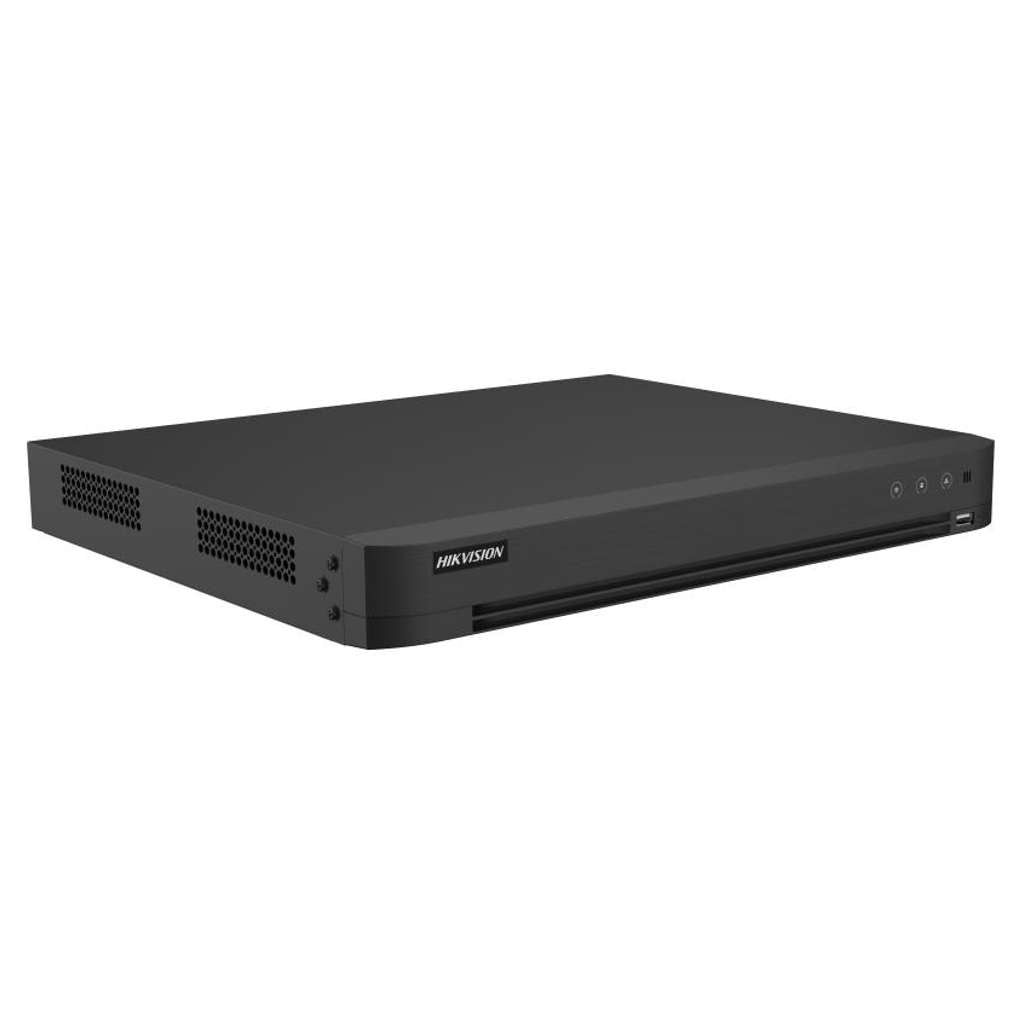

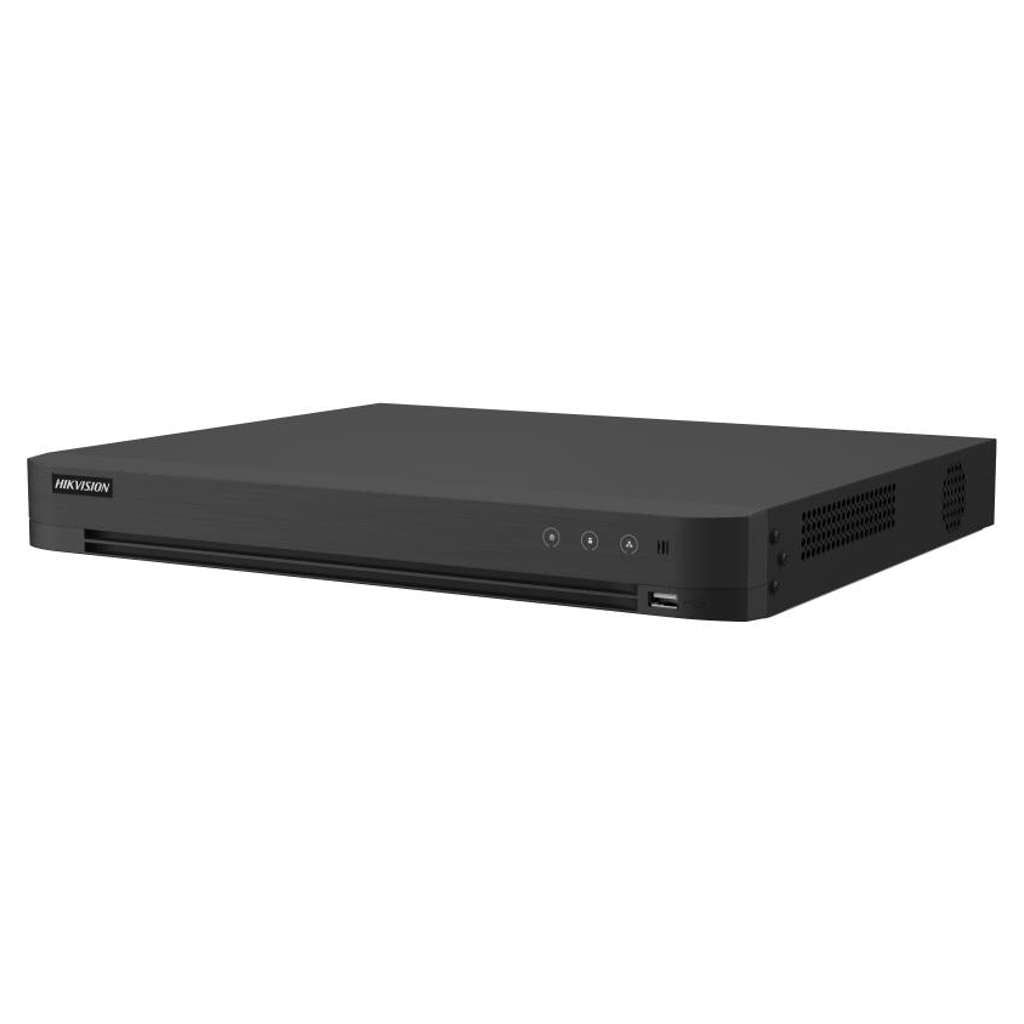

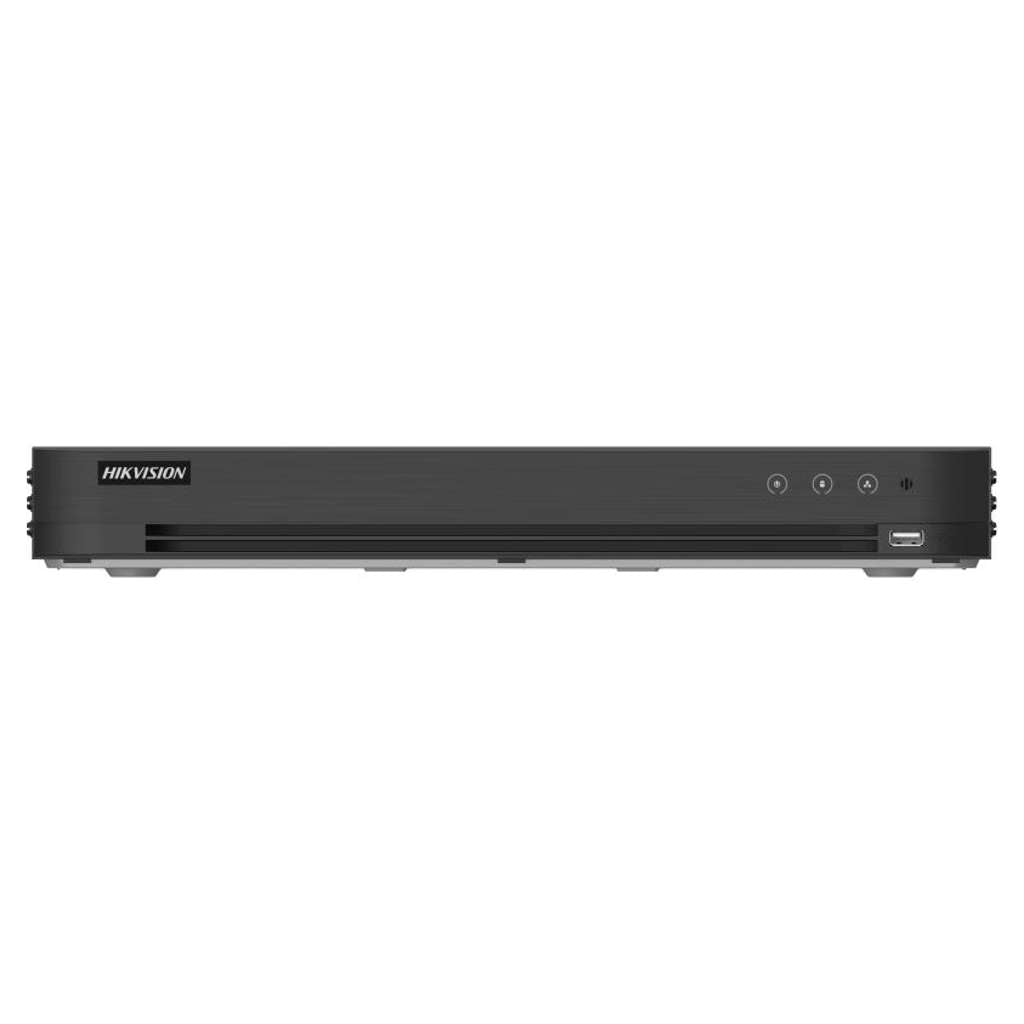

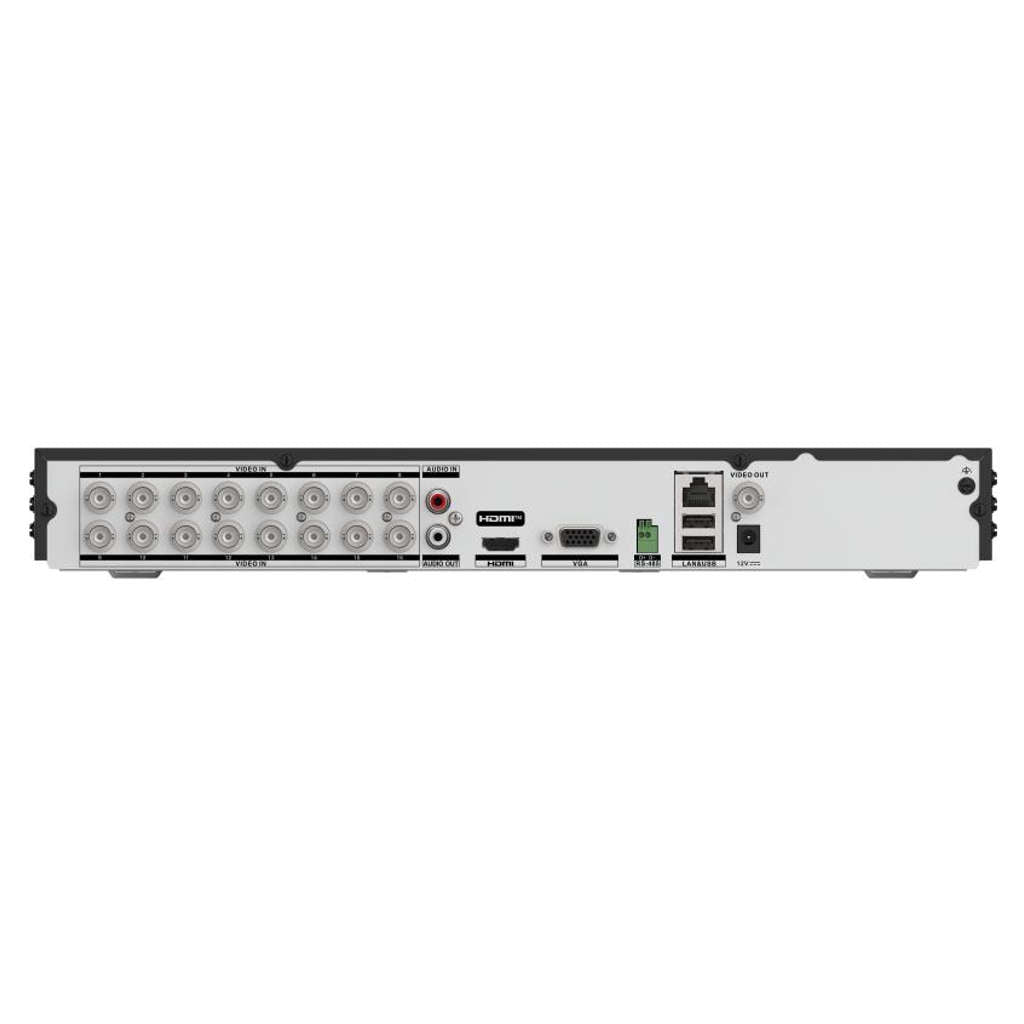

Hikvision 16 Channel DVR 1080P Metal Body 2SATA IDS-7216HQHI-M2/XT

Brand

Hikvision

Product Type

DVR

Product Model

IDS-7216HQHI-M2/XT

Facial Recognition

Face Picture Library

Up to 16 face picture libraries;

HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash

Face Picture Comparison

4-ch face picture comparison alarm (HD analog camera)

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Perimeter Protection

Human/Vehicle Analysis

Up to 8-ch (advanced model)

Facial Detection

Facial Detection And Capture

Face picture detection, face picture search；

4-ch face picture capture

Video And Audio

IP Video Input

8-ch (up to 24-ch), each up to 6MP

Analog Video Input

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

CVBS Input

PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous Playback

16-ch

HDTVI Input

3K(2960 x 1665)@25/20fps, 3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30fps,1080P@25/30 fps, 720P@25/30fps

AHD Input

5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps,720P@25/30fps

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDCVI Input

3K(2880×1620)@20/25 fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps

Video Output Mode

HDMI/VGA simultaneous output

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Audio Input

1-ch(up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 16-ch via coaxial cable

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled:

2K/3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

2K/3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate

32 Kbps to 6 Mbps

Dual-Stream

Support main stream or sub stream

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Decoding

Decoding Capability

Up to 24-ch 1080P@30fps

Network

Total Bandwidth

256 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP

Remote Connection

128

Network Interface

1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

Serial Interface

RS-485 (half-duplex)

SATA

2 SATA interface, up to 12 TB capacity for each disk

Alarm In/Out

N/A (optional to support)

USB Interface

Front panel: 1 × USB 2.0;

Rear panel: 2 × USB 3.0

General

Power Supply

12 VDC, 3.3 A

Consumption

≤40 W

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

384 × 317 × 52 mm (15.1 × 12.5 × 2.0 Inch)

Weight

≤ 2 kg (4.4 lb)

Warranty

As Per Manufacturer Terms and Condition

Dimension (CM) L x B x H

38.4 x 31.7 x 5.2

Unit Of Measurement

1 Piece

Weight

2 kg

Generic Name

16 Channel DVR

Manufacturer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Packer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Country Of Origin

India
