SKU # 1000139401

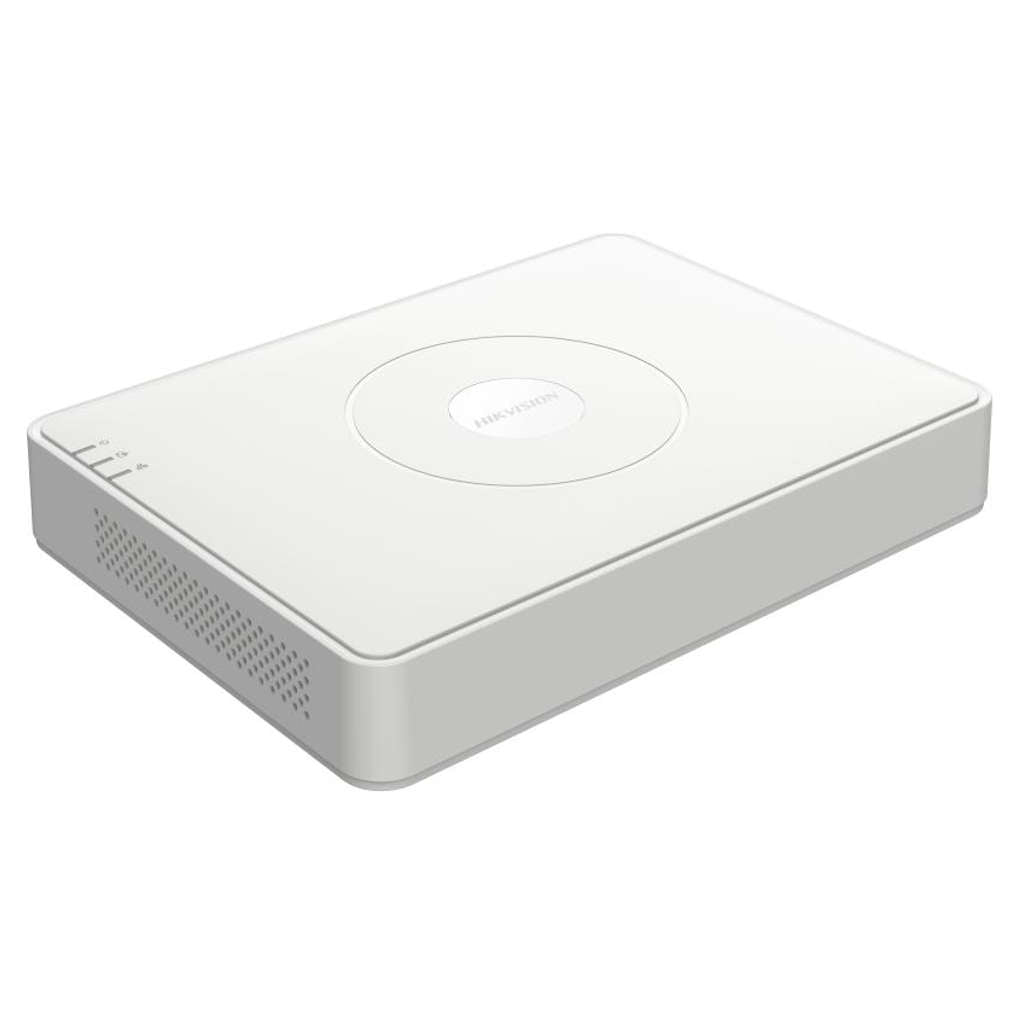

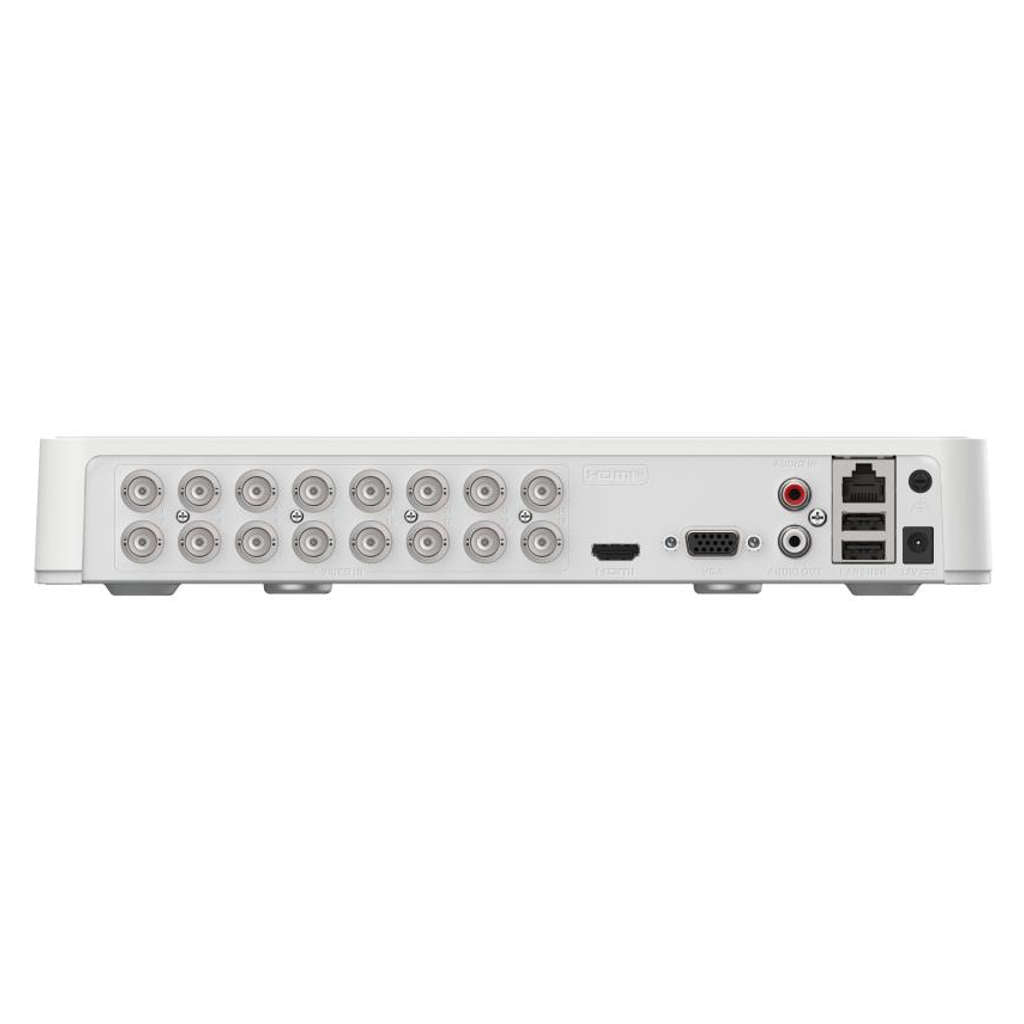

Hikvision Turbo HD DVR 16 Channel DS-7116HGHI-M1/T
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
16-ch 1080P Lite Mini 1U H.265 DVR
-
Deep learning based human and vehicle targets classification of Motion Detection 2.0
-
H.265 Pro+/H.265 Pro/H.265 video compression
-
HDTVI/AHD/CVI/CVBS/IP video input
-
Audio via coaxial cable
-
Up to 18-ch IP camera input (up to 5 MP)
-
Encoding ability up to 1080p lite @ 15 fps
-
Support all channels HDTVI two-way audio technology
Product Specification
|
Brand |
Hikvision |
|
Product Type |
DVR |
|
Product Model |
DS-7116HGHI-M1/T |
|
Motion Detection 2.0 |
|
|
Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
|
Video And Audio |
|
|
IP Video Input |
2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
|
Analog Video Input |
16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
HDTVI Input |
1080p25, 1080p30, 720p25, 720p30 |
|
AHD Input |
1080p25, 1080p30, 720p25, 720p30 |
|
HDCVI Input |
1080p25, 1080p30, 720p25, 720p30 |
|
CVBS Input |
PAL/NTSC |
|
HDMI Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
Video Output Mode |
HDMI/VGA simultaneous output |
|
Audio Input |
1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
|
Synchronous Playback |
16-ch |
|
Recording |
|
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Encoding Resolution |
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For standard definition stream access: WD1/4CIF/VGA/CIF |
|
Frame Rate |
Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) |
|
Video Bitrate |
32 Kbps to 4 Mbps |
|
Dual-Stream |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bitrate |
64 Kbps |
|
Network |
|
|
Total Bandwidth |
96 Mbps |
|
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF |
|
Remote Connection |
128 |
|
Network Interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
1 SATA interface |
|
Capacity |
Up to 6 TB capacity for each disk |
|
USB Interface |
2 × USB 2.0 |
|
General |
|
|
Power Supply |
12 VDC, 2 A |
|
Consumption |
≤ 7 W (without HDD) |
|
Working Temperature |
-10 °C to 55 °C (14 °F to +131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimension (W × D × H) |
285 × 210 × 48 mm (11.2 × 8.3 × 1.9 Inch) |
|
Weight |
≤ 1.8 kg (without HDD, 4.0 lb.) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
28.5 x 21 x 4.8 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
1.8 kg |
|
Generic Name |
16 Channel DVR |
|
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
|
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
|
Country Of Origin |
India |
