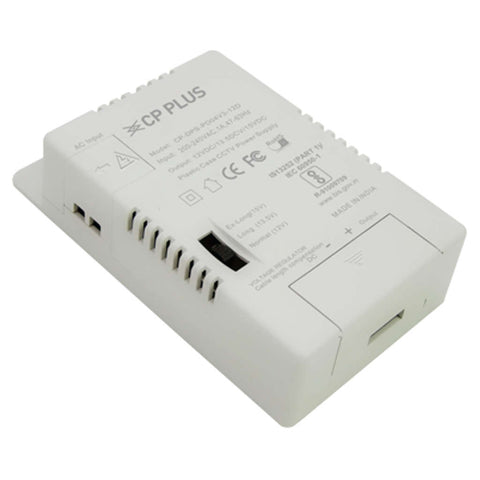

CP Plus 4 Channel Power Supply CP-DPS-PD04V3-12D

CP Plus 4 Channel Power Supply CP-DPS-PD04V3-12D

Visit the CP Plus Store

₹ 570.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 2 Output Terminals for Easy Installation

  • Short Circuit, Over Voltage and Over Current Protection

  • Ac I/P & DC O/P Terminals Are Covered for Safety

  • Power On Indicator

  • Cable Compensation Switch

  • Built-in EMI Filter to Nullify Interference

  • 100% Full Load Burn-in Test

  • Cooling by Free Air Convection

  • Wall Mount Option Along with Desktop

Product Specification

Brand

CP Plus

Product Type

SMPS

Product Model

CP-DPS-PD04V3-12D

Input Voltage

200 ~ 240VAC

Input AC Frequency Range

47 ~ 63Hz

Input Current (Typical)

0.5A/230VAC

Power Cord

2 Pin (L & N)

Standby Power Consumption

0.5W

Inrush Current (Typical)

40A@230VAC

Efficiency (Typical)

85%

Output Voltage

12V in Normal Mode

Output Current

3.0A in Normal Mode

Output Current range

0 ~ 3.0A in Normal Mode

Rated Power

36W in Normal Mode

Ripple & Noise (Maximum)

240mV

Line Regulation

2%

Load Regulation

3%

Power On Indicator

Support

Cable Compensation Switch

Support, 3 Modes (Normal, Long, Ex. Long)

No. of Output Ports

Single Port

Short-Circuit Protection

Support

Dielectric Strength (Hi-pot)

3.0KV

Insulation Resistance

100MΩ@500VDC

Surge Immunity

1.0KV

Operating Temperature

-10 ~ +45°C

Operating Humidity

20 ~ 90% RH Non-condensing

Storage Temperature

-10 ~ +45°C

Storage Humidity

10 ~ 95% RH

Dimension(L x W x H)

132.7 x 77.7 x 33.2 mm

Weight

0.144 kg without Power Cord and Packing Box

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimensions(L x W x H)

13.27 Z 7.77 X 3.32

Unit Of Measurement

1 Piece

Weight

0.144 kg

Generic Name

SMPS

Manufacturer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Packer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Country Of Origin

India
