SKU # 1000139848

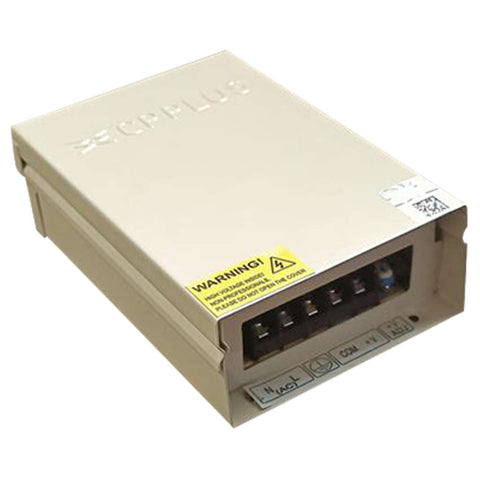

CP Plus Premium Series Metal Case SMPS Power Supply 5 Amp CP-DPS-MD50P-12D

CP Plus Premium Series Metal Case SMPS Power Supply 5 Amp CP-DPS-MD50P-12D

Visit the CP Plus Store

₹ 620.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Wide range of AC input Voltage

  • Higher power budget can add more cameras

  • Short circuit, over Voltage and over current protection

  • Power on indicator

  • Voltage regulator pot for cable compensation

  • Built-in EMI filter to nullify interference

  • 100% Full load burn-in test

  • Metal housing for uniform & quick heat dissipation

  • Wall mount option along with desktop

  • Screw type block terminals for easy installation

Product Specification

Brand

CP Plus

Product Type

SMPS

Product Model

CP-DPS-MD50P-12D

Input Voltage

190 ~ 250VAC

Input AC Frequency Range

47 ~ 63Hz

Input Current (Typical)

3.0A/230VAC

Power Cord

3 Pin (L, N & Earth)

Standby Power Consumption

3.0W

Inrush Current (Typical)

40A@230VAC

Efficiency (Typical)

80%

Output Voltage

12V

Output Current

5.0A

Output Current range

0 ~ 5.0A

Rated Power

60W

Ripple & Noise (Maximum)

200mV

Line Regulation

2%

Load Regulation

3%

Power On Indicator

Support

Cable Compensation

Support, (trimmer pot)

No. of Output Ports

Single port

Over Voltage Protection

Support

Over Current Protection

Support

Short Circuit Protection

Support

Insulation Resistance

100MΩ@500VDC

Operating Temperature

-10°C~+40°C

Operating Humidity

20~90% RH non-condensing

Storage Temperature

-20°C~+85°C

Storage Humidity

10~95% RH

Wall Mount Option

Support

Dimension(L x W x H)

156 x 103 x 47 mm

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimensions(L x W x H)

44 x 2.9 x 44.5

Unit Of Measurement

1 Piece

Weight

0.33 kg

Generic Name

SMPS

Manufacturer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Packer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Country Of Origin

India
