SKU # 1000139962

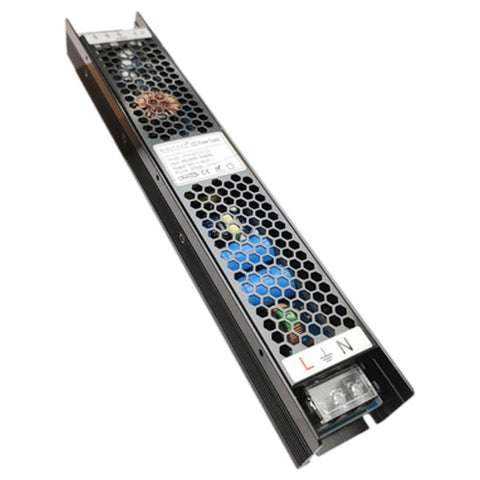

Digitech Dali Dimmable SMPS Power Supply 8.3 Amp 24V-200W
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
A Dali (Digital Addressable Lighting Interface) dimmable LED power supply, or driver, is a device that powers LED fixtures and allows them to be digitally controlled for functions like brightness adjustment and colour tuning
The Dali protocal enables precies, flicker-free, and individual or group control of lighting fixtures, making it a popular choice for professional and large-scale smart lighting systems
Key Types Of Dali Dimmable LED Drivers
Constant Voltage (CV) Drivers
Constant voltage drivers are used for LEDs that require a consistent voltage to operate, such as most LED strip lights
How They Work: The driver provides a steady voltage (e.g., 12V, 24V) to the LEDs, and the load (the combined LED wattage) must not exceed the driver’s maximum output power
Dimming: For smooth, even dimming across the entire range, a constant voltage driver with a pulse width modulation (PWM) output is highly recommended
Constant Current (CC) Drivers
Constant current drivers are designed for LEDs that require a fixed, stable current, such as many spotlight and downlights
How They Work: The driver regulates the current flowing to the LEDs to protect them from overheating and ensure a consistent brightness
Dimming: The dimming is controlled by adjusting the constant current output
Some drivers may have a selectable currect output using a DIP switch
Dali Device Type 8 (DT8) Drivers
DT8 drivers are a specialized type that allows for integrated color control, making them ideal for dynamic white (CCT) and RGBW applications
How They Work: Instead of requiring multiple Dali addresses for each color channel a single DT8 driver uses only one Dali address to control both the color and brightness of a fixture
Efficiency: Using DT8 simplifies installation and reduces wiring, while still alowing for a wide range of color and brightness adjustments
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
| Brand | Digitech |
| Product Type | SMPS |
| Product Code | DG-24V-200W DALI |
| Input Voltage | 24 V |
| Watt | 200 W |
| Current Rating | 8.3 Amp |
| IP Rating | IP20 |
| Conversion Efficiency | 93% - 100% Full power |
| Dimension | 289 x 29 x 49 mm |
| Warranty | As Per Manufacturer Terms & Conditions |
Other Details
| Dimension (CM) L x B x H | 28.9 x 2.9 x 4.9 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.350 kg |
| Generic Name | SMPS |
| Manufacturer Details | Unit No 201, 2nd Floor, A Wing, Laxmi Business Park, New Link Rd, Laxmi Industrial Estate, Suresh Nagar, Andheri West, Mumbai, maharashtra-400053 Mobile: +91 98208 88131 Email: info@digitechlights.com |
| Imported Details | Unit No 201, 2nd Floor, A Wing, Laxmi Business Park, New Link Rd, Laxmi Industrial Estate, Suresh Nagar, Andheri West, Mumbai, maharashtra-400053 Mobile: +91 98208 88131 Email: info@digitechlights.com |
| Country Of Origin | India |
