Out of Stock!

SKU # 1000138748

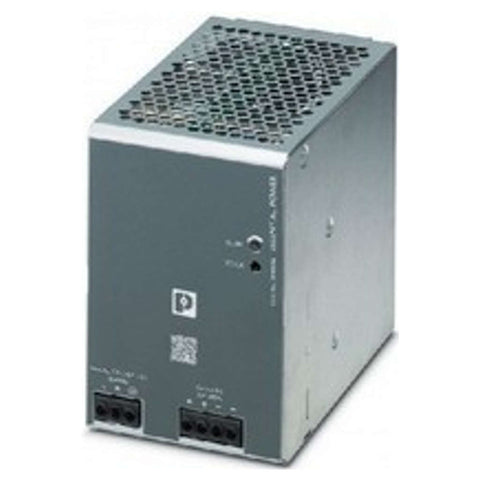

Phoenix Contact SMPS Power Supply Unit 20 A PS/1AC/24DC/480

Phoenix Contact SMPS Power Supply Unit 20 A PS/1AC/24DC/480

Visit the Phoenix Store

₹ 15,187.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons

Ganesh Chaturthi Smart Deals

Coupon Image

Use the coupon codes purchase of ₹3,000/- & above

Above ₹3,000 Use
GC100
Above ₹10,000 Use
GC200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Key Features

  • The Phoenix Contact SMPS Power Supply Unit 20 A PS/1AC/24DC/480 is a robust power supply designed for industrial applications

  • Provides reliable 24V DC power to support various industrial devices and systems, ensuring stable operation in demanding environments

  • This power supply unit is known for its efficiency, durability, and ability to handle fluctuating input conditions, making it suitable for a range of automation and control applications

  • Warranty and support will be provided by vendor

  • Note:*Actual product image may vary from that shown on the picture

Product Specification

Brand

Phoenix Contact

Product Type

SMPS

Product Model

PS/1AC/24DC/480

General

Operating Voltage Display

Green LED

Efficiency

85 % (115 V AC)

88 % (230 V AC)

Insulation Voltage Input / Output

3 kV AC

Insulation Voltage Input / PE

2 kV AC

Insulation Voltage Output / PE

0.5 kV AC

Protection Class

I (with PE connection)

Degree Of Protection

IP20

MTBF (Telcordia SR-332)

> 700000 h

Connection Data, Input

Connection Method

Screw connection

Conductor Cross Section AWG Minimum

16

Conductor Cross Section AWG Maximum

12

Stripping Length

7 mm

Connection Data, Output

Connection Method

Screw connection

Conductor Cross Section AWG Minimum

16

Conductor Cross Section AWG Maximum

12

Stripping Length

7 mm

Input Data

Nominal Input Voltage Range

100 V AC ... 240 V AC

Input Voltage Range

85 V AC ... 264 V AC

AC Frequency Range

47 Hz ... 63 Hz

Discharge Current To PE

< 1 mA (264 V AC)

Current Consumption

5.4 A (115 V AC)

2.7 A (230 V AC)

Inrush Surge Current

typ. 40 A (115 V AC)

typ. 80 A (230 V AC)

Mains Buffering

typ. 10 ms (115 V AC)

typ. 16 ms (230 V AC)

Input Fuse

10 A (fast blow, internal)

Type Of Protection

Transient surge protection

Protective Circuit/Component

Varistor

Output Data

Nominal Output Voltage

24 V DC ±2 %

Setting Range Of The Output Voltage (Uset)

22 V DC ... 28 V DC (max. power ≤ 280 W)

Nominal Output Current (IN)

20 A

Derating

> 40 °C (1.67 % / °C, 115 V AC)

> 50 °C (2.5 % / °C, 230 V AC)

Maximum Capacitive Load

8000 μF

Active Current Limitation

109% - 130% of the max. output power (in the event of short circuit)

Residual Ripple

< 120 mVpp (-10 °C ... +70 °C)

< 120 mVpp (-10 °C ... +70 °C)

Output Power

480 W

Typical Response Time

1000 ms

Maximum Power Dissipation In No-Load Condition

5 W (115 V AC)

4 W (230 V AC)

Power Loss Nominal Load Maximum

50 W (115 V AC)

40 W (230 V AC)

Ambient Conditions

Degree Of Protection

IP20

Ambient Temperature (Operation)

-20 °C ... 70 °C

Ambient Temperature (Storage/Transport)

-40 °C ... 85 °C

Maximum Permissible Relative Humidity (Operation)

95 % (at 25 °C, non-condensing)

Degree Of Pollution

2

Installation Height

5000 m (> 2000 m, Derating: 10 %/1000 m)

Dimensions

Width

85.5 mm

Height

123.6 mm

Depth

128.5 mm

Installation Distances Left/Right

10 mm

Installation Distances Top/Bottom

50 mm

Net weight

1.3 kg
