SKU # 1000139839

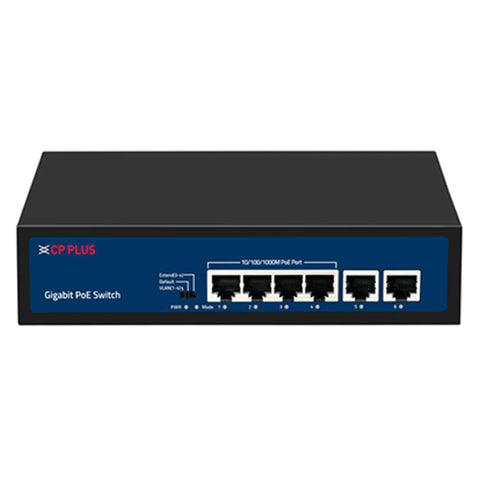

CP Plus 4x Gigabit PoE With 2x Gigabit Uplink Ports Unmanaged PoE Switch CP-DNW-GPU4G2-48C
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
4, 1000Mbps, RJ45 ports, Max. 30W Output of Single PoE Port
-
Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE802.3x
-
Uplink Port: 2, 1000Mbps, Transmission Distance: Default: 0-100m
-
PoE Power Budget: 48W
-
Functions
-
This PoE Switch has designed for outstanding power with flexible placement for better and advanced connectivity between network devices
-
This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss
-
The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time,enabling bi-directional network data transmissions to save time and money
-
6KV is an internal electrical wiring standard which means that when large currents enter the device, the clamping Voltage increases as well, so there will be a large amount of destructive energy getting passed through the 6KV protection
-
The 6KV surge protection is a feature in this PoE Switch that was designed to protect all the connected electrical devices from Voltage spikes
-
This PoE Switch is quite easy to install and use
-
It requires no configuration and installation
-
With outstanding performance and quality, the PoE Switch is a great selection for expanding your home or workplace network
Product Specification
| Brand | CP Plus |
| Product Type | PoE Switch |
| Product Model | CP-DNW-GPU4G2-48C |
| Uplink Ports | 2, 1000Mbps, Transmission Distance: Default: 0-100m |
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE802.3x |
| Switch Capacity | 12 Gbps Full duplex |
| Packet Forwarding Rate | 1.488 Mpps/port |
| PoE Ports | 4, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port Transmission distance:0~100m or 0~250m selected by switch |
| Power Indicator | Light on: Powering Light off: No Power |
| Network Port | 6 Ports |
| Transmission Distance | 0-100m/1000Mbps or Port 3-4 Max. 250m/10Mbps via Cat.5e or more under Extend mode |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| Watchdog | Support |
| PoE Power Supply | 1/2(+), 3/6(-) |
| PoE Power Budget | 48W |
| VLAN | Support |
| Surge Protection | Common mode/RJ45 port: 6KV, Differential mode/RJ45 port: 2KV, Common mode/ Power board: 6KV, Differential mode/Power board: 1KV |
| Forwarding Mode | Store-and-forward |
| MAC Address Table | 2K |
| DIP switch indicator | Green light off: Normal/Default mode, Green light on: VLAN mode, Green light flash: Extend mode |
| ESD | Air discharge: 8KV, Contact discharge: 6KV |
| RJ-45 ACT Indicator | Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting |
| PoE Feature | All ports support MDI/MDIX |
| Power Source | Input: 100-240V AC, 50/60Hz |
| Power Consumption | <5W |
| Operating Temperature | -10°C ~50°C |
| Operating Humidity | 10%-95%, Non-condensing |
| Storage Temperature | -40°C~70°C |
| Dimension(L x W x H) | 200 x 118 x 44 mm |
| Weight | 600 g |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) L x B x H | 20 x 11.8 x 4.4 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.6 kg |
| Generic Name | POE Switches |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country Of Origin | India |
