SKU # 1000139841

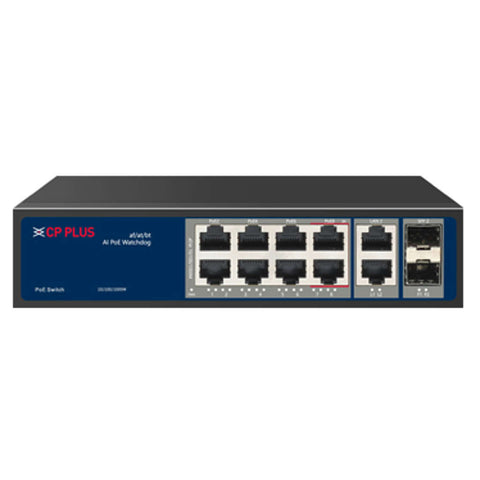

CP Plus 8x Gigabit PoE With 2x Gigabit & SFP Uplink Ports Unmanaged PoE Switch CP-ANW-GPU8G2F2-N12
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Using CAT.5 network patch cords support power for the wireless AP and IP camera
-
Networking standard: IEEE802.3af/at/bt
-
PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
-
Upload port automatic flip (Auto MDI / MDIX)
-
Network performance: Store-and-forward
-
Intelligent power distribution and secure power supply system
-
The port power is 60 watts, it is convenient for high-power device
-
Zero configuration feature power supply is automatically supplied to the adaptive equipment
-
Functions
-
The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time, enabling bidirectional network data transmissions to save time and money
-
This PoE Switch has designed for outstanding power with flexible placement for better and advanced connectivity between network devices
-
This switch supports plug-and-play installation for quick device connectivity
-
An intuitive web-based interface enables easy configuration, monitoring, and port management
-
Clear LED indicators provide instant status of power, PoE, and network activity, ensuring smooth and reliable operation
-
This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss
-
6KV is an internal electrical wiring standard which means that when large currents enter the device, the clamping Voltage increases as well, so there will be a large amount of destructive energy getting passed through the 6KV protection
-
The 6KV surge protection is a feature in this PoE Switch that was designed to protect all the connected electrical devices from Voltage spikes
Product Specification
| Brand | CP Plus |
| Product Type | PoE Switch |
| Product Model | |
| Network Port | PoE (1~6) :10/100/1000Mbps PoE ports (RJ45) PoE (7~8) :10/100/1000Mbps PoE ports, BT port, Compatible uplink ports (RJ45) LAN (1~2):10/100/1000Mbps uplink port (RJ45) SFP (1~2):10/100/1000Mbp uplink ports (SFP) |
| Network Standard | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet |
| Transmission Rate | 2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex |
| Transmission Distance | 1~100m |
| MAC Address Table | 8K |
| Bandwidth | 24.0 Gbps |
| Network Latency | (10 to 100Mbps): ≤16μs (use the 64byte package size) |
| Frame Filter & Transmission Rate | 14800pps the most for 10Mbps port, 148800pps the most for 100Mbps port, 1488000pps the most for 1000Mbps port |
| Power Budget | 120W |
| Power Input | AC 180~240V, Total ≤120W |
| Watchdog | Port 1~8 |
| Power Output | PoE 1~6 Port: 1/2(+52V), 3/6 (GND) PoE 6~8Port:1245(+53V), 3678(GND) compatible1/2(+52V),3/6 (GND)≤60W |
| Lightning Protection | 6KV |
| Operating Temperature | -30°C ~60°C |
| Working Humidity | 10%~90% (Non-condensing) |
| Storage Temperature | -40°C ~70°C |
| Storage Humidity | 5%~90% (Non-condensing) |
| Package Content | AC Power Cable, Installation Manual |
| Dimension(L x W x H) | 187 x 139 x 43 mm |
| Warranty | 2 Years |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) L x B x H | 18.7 x 13.9 x 4.3 |
| Unit Of Measurement | 1 Piece |
| Weight | 1 kg |
| Generic Name | POE Switches |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country Of Origin | India |
