SKU # 1000139798

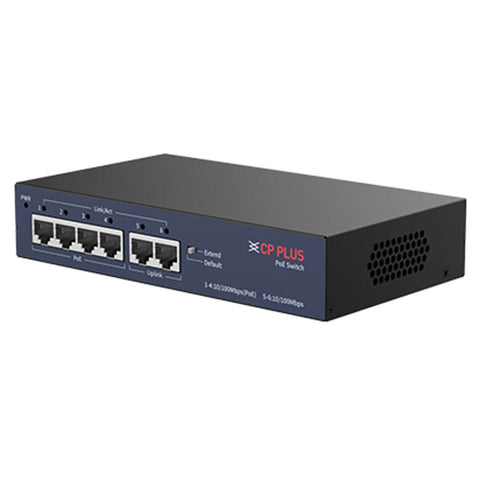

CP Plus 6 Ports PoE Switch With 4 PoE & 2 Uplink Ports CP-UNW-HPU4H2-48

CP Plus 6 Ports PoE Switch With 4 PoE & 2 Uplink Ports CP-UNW-HPU4H2-48

Visit the CP Plus Store
Mid-Year Value Sale

₹ 1,490.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Key Features

  • Port 1-4: 4 × RJ-45 10/100 Mbps (PoE), Port 5-6: 2 × RJ-45 10/100 Mbps (Uplink)

  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x

  • Transmission distance of ports 1–4 can reach up to 250 Mtr., Negotiation speed can be reduced to 10 Mbps

  • Easy and safe installation: wall-mounting, desktop, Plug-and-play

  • Functions

  • Better Connectivity

  • This PoE Switch has designed for outstanding power with flexible placement for better and advanced
    connectivity between network devices

  • Switching Performance

  • This PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss

  • Easy to Use

  • This PoE Switch is quite easy to install and use

  • It requires no configuration and installation

  • With outstanding performance and quality, This PoE Switch is a great selection for expanding your home or workplace network

  • LED Indicator

  • LED lights have been installed in this Ethernet Switch to work as indicators for you to realize simple work statement reminders and clear the troubles

  • Supports Full Duplex Mode

  • The duplex mode makes this Ethernet Switch capable of sending and receiving information at the same time, enabling bidirectional network data transmissions to save time and money

Product Specification

Brand

CP Plus

Product Type

PoE Switch

Product Model

CP-UNW-HPU4H2-48

Network Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Switching Capacity

1.2 Gbps

Packet Forwarding Rate

0.893 Mbps

MAC Address List

2K

Packet Buffer

768 Kbit

DIP switch

Long Distance PoE: The transmission distance of ports 1–4 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps

ESD Protection

Air discharge: 8KV, Contact discharge: 6KV

Lightning Protection

Common mode: 6KV

PoE Pin Assignment

1/2+, 3/6-

Long Distance PoE Transmission

Support

Description of Function Slots

Port 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100 Mbps (Uplink)

PoE Power

Port 1-4≤30 W, Total≤48 W

Power Supply

Built-in power supply:200-240 VAC, 50/60 Hz, Maximum 1 A

Power Consumption

Idling: 0.3 W, Full load: 48 W

Jumbo Frame

2048 Byte

Operating Temperature

10°C to +45°C

Operating Humidity

10%–90% (RH), non-condensing

Storage Temperature

-10°C to +45°C

Storage Humidity

5%–95% (RH), non-condensing

Casing

Sheet Metal

Dimensions

180mm × 112mm × 44mm

Weight

420 g

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) L x B x H

18 x 11.2 x 4.4

Unit Of Measurement

1 Piece

Weight

0.42 kg

Generic Name

POE Switches

Manufacturer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Packer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Country Of Origin

India
