Out of Stock!
SKU # 1000077386

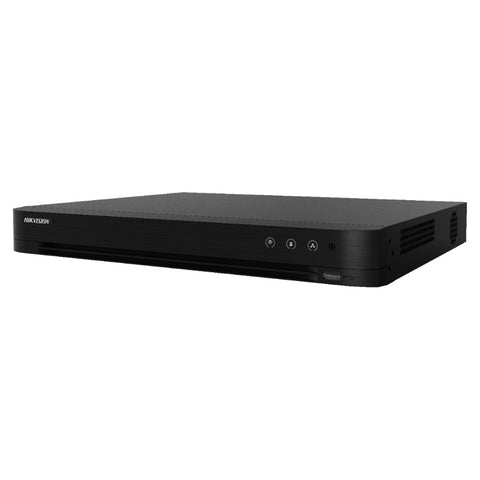

Hikvision AcuSense Face Recognition 8CH DVR 1080P Metal Body 2SATA IDS-7208HQHI-M2/FA
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
8-ch 1080p 1U H.265 AcuSense DVR
-
Deep learning-based analysis or face picture comparison
-
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
-
HDTVI/AHD/CVI/CVBS/IP video inputs
-
Audio via coaxial cable
-
Up to 12/24-ch IP camera inputs (up to 6 MP)
-
Max. 800 m for 1080p and 1,200 m for 720p HDTVI signal transmission
-
Up to 10 TB capacity per HDD
Product Specification
|
Brand |
Hikvision |
|
Product Type |
DVR |
|
Product Code |
IDS-7208HQHI-M2/FA |
|
Series |
AcuSense |
|
Facial Recognition |
|
|
Face Picture Comparison |
Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera) |
|
Face Picture Library |
Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB) |
|
Motion Detection 2.0 |
|
|
Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
|
Perimeter Protection |
|
|
Human/Vehicle Analysis |
Up to 4-ch |
|
Recording |
|
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Encoding Resolution |
Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
|
Video Bitrate |
32 Kbps to 6 Mbps |
|
Dual-Stream |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bitrate |
64 Kbps |
|
Video And Audio |
|
|
IP Video Input |
2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Support H.265+/H.265/H.264+/H.264 IP cameras |
|
Analog Video Input |
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
HDTVI Input |
4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps Note : The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/FA |
|
AHD Input |
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
|
CVBS Input |
PAL/NTSC |
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
HDMI Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output |
|
VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output |
|
Audio Input |
1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
|
Synchronous playback |
8-ch |
|
Network |
|
|
Remote Connection |
64 |
|
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
|
Network Interface |
1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
|
Wi-Fi |
Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
|
Auxiliary Interface |
|
|
SATA |
2 SATA interface, up to 10 TB capacity for each disk |
|
Serial Interface |
RS-485 (half-duplex) |
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
|
Alarm In/Out |
N/A (optional to support) |
|
General |
|
|
Power Supply |
12 VDC, 2.5 A |
|
Consumption |
≤ 30 W |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimension (W × D × H) |
380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) ≤ 1.78 kg (3.9 lb) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
8 Channel DVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
