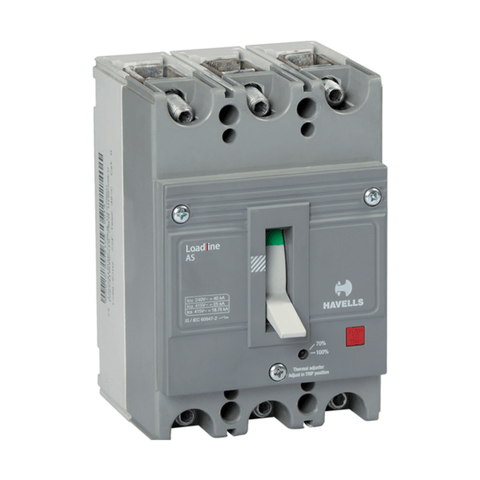

Havells Adjustable Thermal and Fixed Magnetic Mccb Three Pole 25kA

Havells Adjustable Thermal and Fixed Magnetic Mccb Three Pole 25kA


₹ 4,185.00

Quantity

Min Qty : 1



Delivery Availability

 Estimated Dispatch In 14-21 Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

Overload Setting is Adjustable (70-100)% and Short Circuit Setting is minimum 10 times of Rated Current.

Compact Size & Double Insulation

  • Space saving in the Panel and has the conductive path insulated with double shield i.e. Cover & Facia

Suitable for Switch Disconnector Purpose

  • Can be used as an Isolator

Provision of Push to tip button

  • It is an alternate means to Trip the Breaker and also helps in checking the health of the Breaker.

Uniform front Escutcheon plate

  • Common Door Cut-out Facility provided lending Uniformity

Positive dolly position indication

  • Depicts the ON/OFF status of the breaker

Suitable for DC application

  • Offers choice of system usage

Wide range of accessories available

  • Allows precise monitoring & control of circuit with the help of varied Internal & External Accessories

Product Specifications

  • Standard conformity: IEC 60947-2/IS:13947-2

  • Rated operational voltage: 500V AC

  • Rated Insulation Voltage: 750V AC

  • Type of Release: Thermomagnetic

  • Utilisation Category: A

  • Rated frequency: 50/60Hz

  • Ambient temp: 400C (500C on request)

  • Operating altitude: 2000 metres

  • Humidity: 0 - 90%

  • Rated impulse voltage: 8 kV

  • Rating Range: 25A - 125A

  • Type of Release: Thermal Adjustable and Magnetic Fixed Type

  • No. of Poles: Three

  • Breaking Capacity: Icu = 25kA, Ics = 75% of Icu

Note: # All MCCB’s of rating 80A & above are with extended terminals.

Breaking Capacity Icu at 415 (kA)

Frame

Current Rating (A)

Cat. No.






25







AS

25

IHLAST0025

32

IHLAST0032

40

IHLAST0040

50

IHLAST0050

63

IHLAST0063

80

IHLAST0080 #

100

IHLAST0100 #

125

IHLAST0125 #
