LAST SOLD AT ₹ 78,009.00
SKU # 1000004601

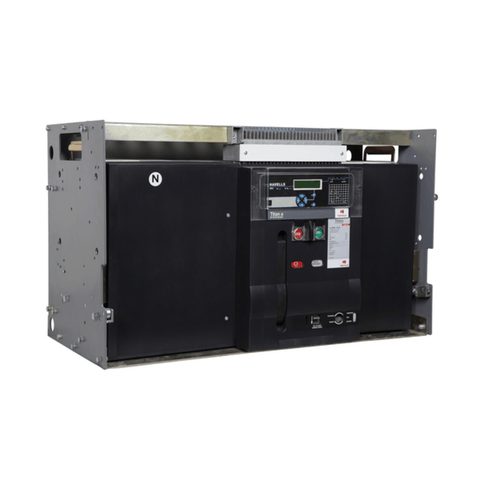

Havells Manual Fixed ACB With Four Pole Having Microprocessor Based Release IPR 2 Ranging From 630A – 4000A

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
Range 630-4000A, Breaking Capacity 50-100kA in TP & FP
Different Current Rating provide selection option depending on varied Load Conditions
Mid Version
Circuit Breaker offers all basic protections along with LCD Display and Fault History
Measurement Function Available
Facility of Current, Voltage and Energy measurement available
DETAILED FEATURES
Function Check Facility Available
It allows to individually check the performance of respective functions of the release
Pre Indication of Fault condition
Advance Indication of Fault condition available with the help of Pre Trip Alarm facility
Offers Self Monitoring
Independently the release can be tested for all the functions
Provision of Operation Counter
It records the number of ON / OFF operation of the circuit breaker
Fault History Facility Available
It records and displays last 100 faults hence enables planning of maintenance schedule
Password protected
The release is Password protected thereby restricting the access of unauthorised person
Current & Time Setting Available
Setting of Current & Time Delay is totally error free & is user friendly
Close and Precise protection
It is Equipped with 16 bit micro controller, these are far more reliable and have high level of repeat accuracy when compared to thermal magnetic and static releases
Monitors & Measures Actual Current
It offers True RMS sensing with total immunity to system disturbances
No external Power Required
It is Self-Powered by built in current transformer
Product Specification
TECHNICAL SPECIFICATION
Basic Features
Ref. Standard: IS / IEC 60947-2
Rated operational voltage: 690V AC / 250V AC
Rated Insulation Voltage: 1000V AC
Rated impulse voltage: 12kV
Utilisation Category: B
Rated frequency: 50/60Hz
Operating altitude: 2000 metres
Humidity: 0 – 90%
Rating Range: 630A – 4000A
No. of Poles: Four
Breaking Capacity Withstand Capacity: Icu = Ics = Icw = 50kA & 65kA for 630A - 2000A; Icu = Ics = Icw = 75kA for 2500A; Icu = Ics = Icw = 100kA for 3200A – 4000A
Version: Fixed Type
Type of Operation: Manual
Current Rating |
Breaking Capacity |
Ordering Code |
Manual |
||
(A) |
415V (kA) |
Fixed |
630 |
50 |
IHAFE12060**# |
800 |
50 |
IHAFE12080**# |
1000 |
50 |
IHAFE12100**# |
1250 |
50 |
IHAFE12120**# |
1600 |
50 |
IHAFE12160**# |
2000 |
50 |
IHAFE12200**# |
2500 |
75 |
IHAFH12250**# |
3200 |
100 |
IHAFV12320**# |
4000 |
100 |
IHAFV12400**# |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
4 Pole ACB |
Manufacturer Details |
Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com |
Packer Details |
Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com |
Country of Origin |
India |
