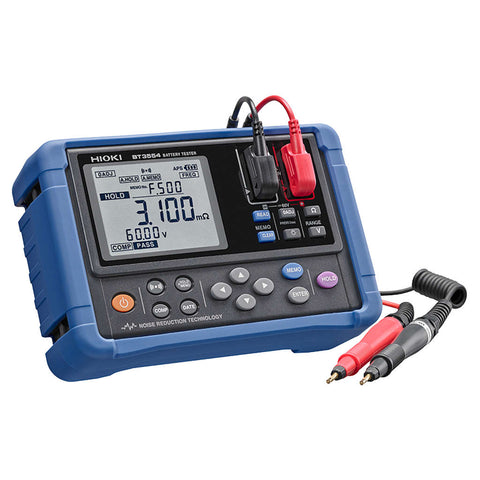

Hioki Battery Tester BT3554-51

Hioki Battery Tester BT3554-51

Visit the Hioki Store

₹ 191,470.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Battery measurement can be performed while the battery is connected to its host device, without taking it offline

  • Measure and save data in as fast as 2 seconds, a 60% improvement from the legacy 3554

  • Instantaneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage

  • Noise reduction technology improves noise resistance

  • Screen and audio guidance simplifies measurement

  • Measurement data is linked to site information and saved, reducing management man-hours

  • A variety of measurement data can be centrally managed using Hioki’s GENNECT Cross app

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel file

  • (Wireless Adapter Z3210 is necessary)

  • New protector delivers better ergonomic hold and durability in the field

  • BT3554-51 Bundled with Pin Type Lead 9465-10

  • Bundled with Pin Type Lead L2020

  • Note:* Actual product image may vary from that shown on the picture

ProductSpecification

Brand

Hioki

Product Type

Battery Tester

Product Model

BT3554-51

Resistance

3Ω

Channels

1

Accuracy

±0.8 % rdg ±6 dgt (3 mΩ range: ±1.0 % rdg ±8 dgt)

Temperature Range

-10°C to 60°C (14°F to 140°F)

Resolution

0.1°C (0.18F)

Absolute Maximum Input Voltage

60 V DC Maximum (No AC input)

Measurement Time

100 ms

Response Time

Approx. 1.6 sec

Communication Interface

Bluetooth, Micro USB

Power Supply

LR6 (AA) Alkaline dry battery ×8 Continuous operating time: About 8.3 hr. (without Z3210 installed), About 8.2 hr. (with Z3210 installed and wireless communications active)

Supply Scope

Carrying Case C1014 ×1, Protector Z5041 ×1, Fuse Set Z5050 ×1, 0 Adj Board ×1, Neck strap ×1, USB cable ×1, Application software CD (GENNECT One) ×1, AA alkaline battery (LR6) ×8, User Manual ×1

Dimensions (W x H x D)

273 x 286 x 130 mm

Weight

3.06 g

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) L x B x H

27.3 x 28.6 x 13

Unit Of Measurement

1 Piece

Weight

3 kg

Generic Name

Battery Meter
