Out of Stock!
SKU # 1000067367

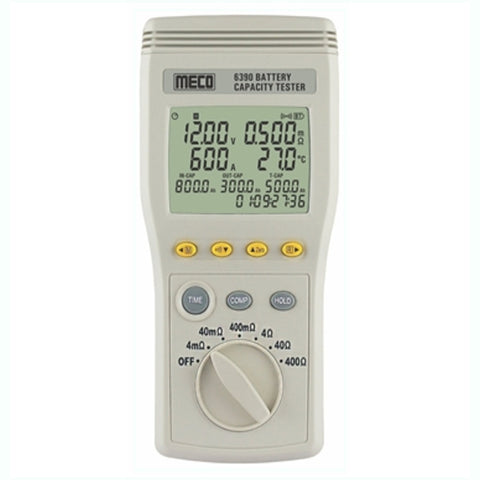

Meco Battery Capacity (Impedence) Tester With DC Clamp Meter (Adaptor) Upto 1200Ah 6390
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Memory & Read Function
-
Right Device to know the TRUE -LIFE of Battery Capacity (Resistive / Voltage / Current & Temperature) Simultaneously
-
On - Line Testing without shutting down battery
-
Built - in Comparator Function
-
Rates Conditions as PASS, WARNING or FAIL
-
Datalogging Memory Function
-
Compact and lightweight
-
RS-232 Interface & Software
-
Load Test Analysis (Charge / Discharge)
Auto-Hold & Auto-Data Storage -
Wide Range 0 ~ 1200 AH
-
Auto Power Off
Product Specification
|
Brand |
Meco |
|
Product Model |
6390 |
|
Product Type |
Battery Meter |
|
Battery Types Tested |
UPS Battery Motor Cycle (6V/12V : 2 ~ 20Ah) Car (12V : 21 ~ 80Ah) Truck (12V : 83 ~ 160Ah) Household Appliances [(9V : upto 625 mAh), (AA : upto 2850 mAh), (AAA : upto 1250 mAh), (C : upto 8350 mAh), (D : upto 20500 mAh)] Lithium Notebook Battery : [(14.8V : 3600 ~ 4800 mAh), (11.1V : 3600 ~ 7200 mAh)] Lithium Digital Camera Battery :(3.7V : 650 ~ 1350 mAh) Lithium Cordless Phone Battery :(3.7V : 800 ~ 1250 mAh) |
|
Battery Capacity |
0 to 1200Ah |
|
Resistance |
Ranges : 4mV, 40mV, 400mV, 4V, 40V, 400V Resolution : 1mV, 10mV, 100mV, 1mV, 10mV, 100mV Accuracy : ± (0.8% reading + 6 digits) on all ranges. except ± (3% reading + 20 digits) on 4mV |
|
Measurement Condition |
Current : Approx. 40mA, 4mA, 400mA, 40mA, 4mA Frequency : 1KHz± 30Hz |
|
Dc Voltage |
Range : 6V, 60V; Resolution : 1mV, 10mV; Accuracy : ±(0.1% reading + 6 digits) |
|
Temperature |
Range : -20°C to 60°C (-4°F to 140°F); Resolution : 0.1 °C / 0.1°F; Accuracy : ± 1°C / ± 1.8°F |
|
Dc Current |
Range : 600A; Resolution : 0.1A; Accuracy : ± (2%rdg+2dgt) |
|
Open Circuit Voltage |
5V max |
|
Datalogging |
Manual Datalogging : 999 Sets (Can be read by Meter & Download by PC) Auto Datalogging : Micro SD card 4GB (Max. 99 Blocks) |
|
Comparator |
Setting : Resistance Upper and Lower Limits and Voltage (Threshold) Upper and Lower Limit Memory : 99 Sets of Values |
|
Operating Environment |
0°C to 40°C (32°F to 104°F), 80% RH or less, Non-condensing |
|
Power Supply |
Six 1.5V AA size Alkaline Batteries |
|
Battery Life |
5.5 Hours |
|
Standard |
IEC 61010-1, 1000V Insulation CAT III, Pollution Degree 2 |
|
Accessories |
Alligator Clip Type Test Lead with Temperature Sensor x1, Pin Type Test Lead x 1, DC Current Adaptor x 1, Zero Adjustment Board x 1, Instruction Manual x 1, AA 1.5V Batteries x 6, AC Adaptor x 1, 4GB Micro SD Card (installed) x 1, USB Cable x 1, PC Software Disk x 1 & Carring Bag x 1 |
|
Dimensions |
198 x 94 x 49 mm (approx.) |
|
Weight |
530 gms Including Battery (approx.) |
|
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Battery Meter |
Manufacturer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Packer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Country of Origin |
India |
