SKU # 1000067365

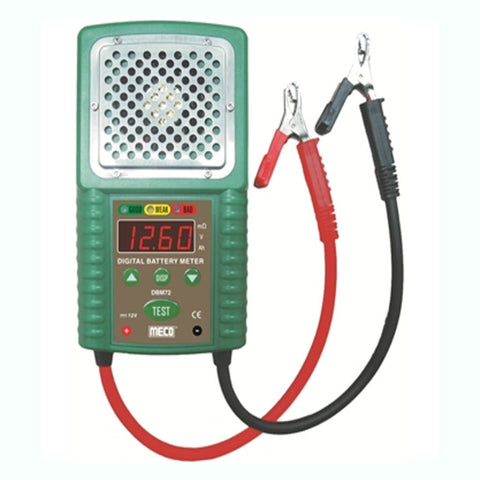

Meco Digital Battery Meter 40-200Ah DBM72
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
80A Discharge Current Load Test for 6V/12V (40Ah - 200Ah) Lead Acid and Li-ion Battery
-
Built-In 10 Seconds Timer to Auto Cut-Off Load After Test
-
Temperature Rise is Controlled (for Circuit Protection)
-
Two Way Internal Resistance Measurement(Load Test Method & 4-Wires Method)
-
LED Indication of Battery Condition : GOOD (Green), WEAK (Yellow) & BAD (Red)
-
Auto Data Hold
Product Specification
Brand |
Meco |
Product Model |
DBM72 |
Product Type |
Battery Meter |
Battery Type |
Lead Acid & Li-ion Battery |
Battery Voltage |
6V / 12V DC |
Battery Capacity |
40 Ah ~ 200Ah |
Battery Load Test Current |
80A |
Load Test Time Control Timer |
<10 Seconds |
Battery Drop Voltage In Load Test |
Yes |
Temperature Control In Load Test |
Yes |
Battery Internal Resistance By Load Test |
0 ~ 99mV |
Battery Internal Resistance By 4 - Wires Test |
0 ~ 99mV |
Battery Conclusion By Load Test Or By 4 - Wires Test |
GOOD / WEAK / BAD |
Reverse Polarity Protection |
Yes |
Detects And Display Bad Cell |
Yes |
Missing Lead Detection |
Yes |
Overload Protection Of Input Voltage |
Yes |
Safety Standard |
CAT III 600V |
Cable Length |
300mm (approx.) |
Dimension |
205 x 115 x 70mm (approx.) |
Weight |
900g (approx.) |
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Battery Meter |
Manufacturer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Packer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Country of Origin |
India |
