SKU # 1000067366

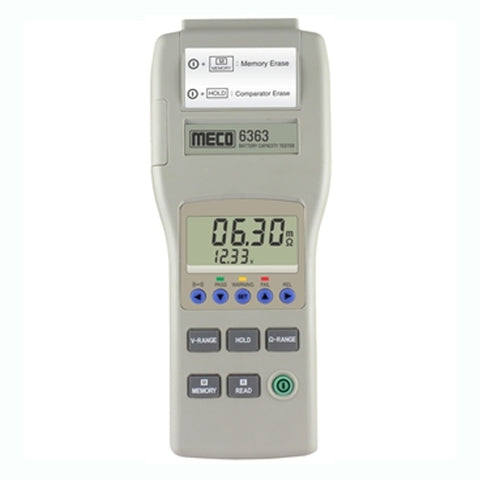

Meco Battery Capacity (Impedence) Tester Upto 500Ah 6363
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Memory & Read Function
-
Right Device to know the TRUE -LIFE of Battery Capacity (Resistive / Voltage) Simultaneously Measure
-
On - Line Testing without shutting down battery
-
Built - in Comparator Function
-
Rates Conditions as PASS, WARNING or FAIL
-
Datalogging Memory Function
-
Compact and lightweight
-
RS-232 Interface & Software
-
Auto Power Off
Product Specification
|
Brand |
Meco |
|
Product Model |
6363 |
|
Product Type |
Battery Meter |
|
Battery Types Tested |
UPS Battery Motor Cycle (6V/12V : 2 ~ 20Ah) Car (12V : 21 ~ 80Ah) Truck (12V : 83 ~ 160Ah) Household Appliances [(9V : upto 625 mAh), (AA : upto 2850 mAh), (AAA : upto 1250 mAh), (C : upto 8350 mAh), (D : upto 20500 mAh)] Lithium Notebook Battery [(14.8V : 3600 ~ 4800 mAh), (11.1V : 3600 ~ 7200 mAh)] Lithium Digital Camera Battery (3.7V : 650 ~ 1350 mAh) Lithium Cordless Phone Battery (3.7V : 800 ~ 1250 mAh) |
|
Battery Capacity |
0 to 500Ah |
|
Resistance |
Ranges : 40mV, 400mV, 4V, 40V Resolution : 10mV, 100mV, 1mV, 10mV Accuracy : ± (1% Reading + 10 Digits) on all Ranges |
|
Measurement Condition |
Current : 25mA, 2.5mA, 250mA, 25mA Frequency : 1KHz± 10% |
|
Voltage |
Measurement : 4V, 40V Resolution : 1mV, 10mV Accuracy :± (0.1% Reading + 6 Digits) |
|
Open Circuit Terminal Voltage |
<3.5VPP |
|
Manual Data Logging |
500 Sets |
|
Continuous Data Logging |
9600 Sets |
|
Comparator Settings |
Resistance High and Low Limits and Voltage Throughold Point |
|
Number Of Comparator Settings |
99 Sets |
|
Operating Environment |
0°C to 40°C (32°F to 104°F), 80% RH or Less, Non-Condensing |
|
Maximum Input Voltage |
50VDC |
|
Power Supply |
Six 1.5V AA Size Batteries |
|
Battery Life |
7 Hours |
|
Accessories |
Instruction Manual x 1, Batteries (installed), Test Probe (Alligator Clips) x 1, USB Cable x 1, Software Disk x 1, Carrying Bag x 1 |
|
Dimensions |
250 x 100 x 45 mm (approx.) |
|
Weight |
490gms Including Batteries (approx.) |
|
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Battery Meter |
Manufacturer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Packer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Country of Origin |
India |
