Available

SKU # 1000021692

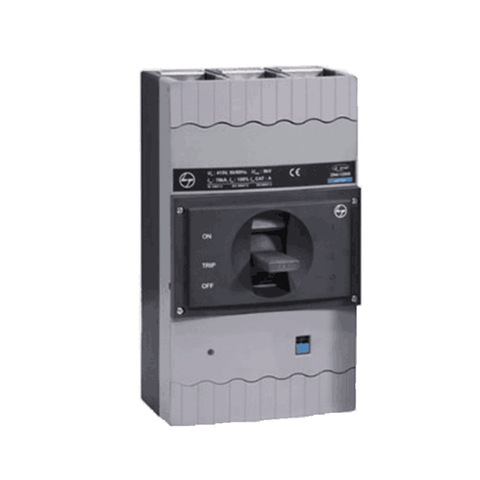

L&T MCCB Three-Pole 500 A to 630 A DN3-630S

L&T MCCB Three-Pole 500 A to 630 A DN3-630S


₹ 33,099.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Molded case circuit breakers are a type of electrical protection device that is commonly used when load currents exceed the capabilities of miniature circuit breakers

  • They are also used in applications of any current rating that require adjustable trip settings, which are not available in plug-in circuit breakers and MCBs

  • Current Limiting Type MCCB

  • Suitable for Isolation

  • No Line Load Bias

  • Thermal-Magnetic based protection releases

Product Specification

Brand

L&T

Product Name

Molded Case Circuit Breaker(MCCB)

Type

DN3-630S

Model Number

CM94002OOS1OG | 500 A

CM94002OOT1OG | 630 A

No. of Poles

3

Breaking Capacity Icu

70 kA

Rated Voltage

415 V AC

Frequency

50Hz

Release

Thermal-Magnetic

Impulse withstand Voltage U

8 kV

Rated Operational Voltage U (MAX)

690 V

Rated Insulation Voltage U

800 V

Utilization Category

A

Dimensions (WxDxH)

140x111.5x266 mm

Weight

6 kg
