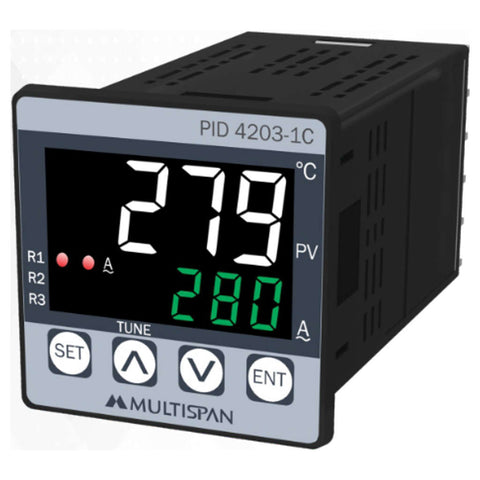

Multispan PID Controller With Ampere Indication PID-4203-1C
Multispan PID Controller With Ampere Indication PID-4203-1C 7970070528194PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Application
-
Packaging Machinery
-
Extrusion Machinery
-
Furnace & Boilers
-
Ovens & Incubators
-
Food Industry
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
Brand | Multispan |
Product Type | PID Controller |
Product Model | PID-4203-1C |
Display | UPPER:- 4 Digit 7 seg 0.56”, White LED Display |
Input | J ,K ,PT,PT.1 |
Range | Temperature:J type: 0 to 600°C/ K type: 0 to 1200°C PT-100: -99 To 400°C /PT.1:- -99.9 to 400.0 C Ampere : 0.0 to 30.0 A (1 CT) |
Control Action | PID/ ON-OFF (selectable) |
Output | 1 S.S.R. + 2 Relay, 1C/O Contact,5A, 230V AC , |
Power Supply | 100 to 250V AC,50/60 Hz, Approx 3VA |
Operating Temperature | 0°C To 55°C |
Relative Humidity | Up to 95% RH Non Condensing |
Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
Panel Cutout | 45 X 45 mm |
Dimension (HxWxD) | 48 x 48 x 95 mm |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H | 4.8 x 4.8 x 9.5 |
Unit of Measurement | 1 Piece |
Weight | 0.75 kg |
Generic Type | Temperature Controllers |
Manufacturer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
Packer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
Country of Origin | India |
