Available

SKU # 1000012417

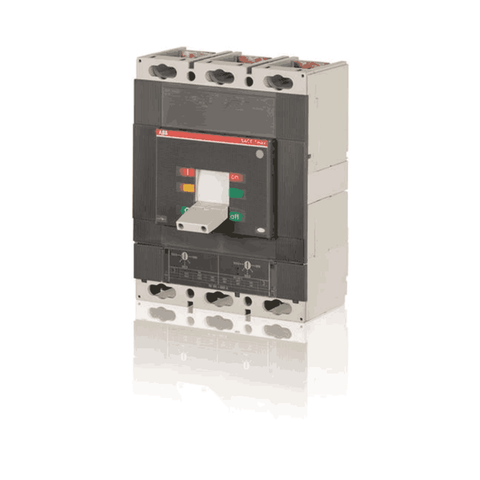

ABB TMax MCCB 800A 36KA 415V Three-Pole -  T6H 800 TMA 800-8000 3p F F

ABB TMax MCCB 800A 36KA 415V Three-Pole - T6H 800 TMA 800-8000 3p F F


₹ 36,870.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • C.Breaker Tmax T6h 800 Fixed Three-Pole With Front Terminals And Thermomagnetic Release Tma R 800 I3=4000...8000 A

  • Moulded-case circuit-breakers can be used in low voltage civil and industrial installations with 1 to 3200 A operating current.

  • The ultimate short-circuit breaking capacity (Icu) at 415V ranges from 18kA to 200kA, or up to 100kA for 690V.

  • Suitable for isolation

Product Specification

Brand

ABB

Product Name

Moulded Case Circuit Breaker

Product ID

1SDA060218R1

Product Type

CB

Model

T6H 800 TMA 800-8000 3p F F

Width

210 mm

Height

268 mm

Depth / Length

103.5 mm

Product Main Type

SACE Tmax T

Rated Insulation Voltage

1000 V

Rated Current

Main Circuit 800 A

Power Loss

at Rated Operating Conditions per Pole 31 W

Rated Operational Voltage

690 V AC , 750 V DC

Terminal Connection Type

Fixed Circuit-Breakers Front

Product Net Weight

9.5kg

Number of Poles

3

Standards

IEC

Version

F

Electrical Durability

5000 cycle ,60 cycles per hour

Mechanical Durability

20000 cycle , 120 cycles per hour
