Available

SKU # 1000012525

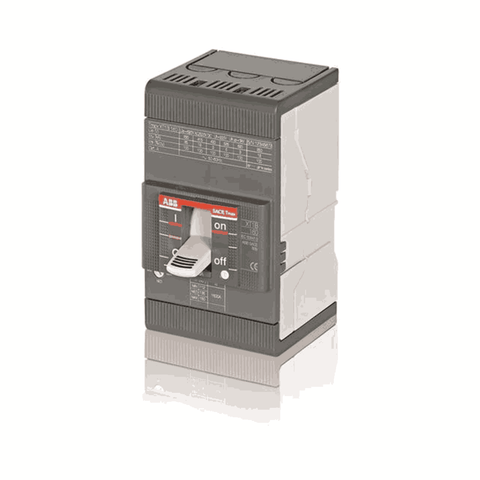

ABB XTMax MCCB 10-160A 36KA 415V AC  Three Pole  - XT2N 160 Ekip LSIG In 3p

ABB XTMax MCCB 10-160A 36KA 415V AC Three Pole - XT2N 160 Ekip LSIG In 3p


₹ 22,790.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • C.Breaker Tmax XT2N 160 Fixed Three-Pole With Front Terminals And Solid-State Release In Ac Ekip-LSIG R 10-160 A

  • Tmax moulded-case circuit-breakers guarantee an extremely high performance level while being progressively smaller in size, simple to install and able to provide increasingly better safety guarantees for the operator.

  • The ultimate short-circuit breaking capacity (Icu) at 415V ranges from 18kA to 200kA, or up to 100kA for 690V.

  • IEC Standard

  • Circuit Breaker Type to be Associated:Power distribution

  • Product Net Width : 90 mm

  • Product Net Height : 130 mm

  • Product Net Depth / Length : 82.5 mm

  • Product Net Weight : 1.2 kg

  • Number of Poles : 3

  • Product Main Type : SACE Tmax XT

  • Product Name : Moulded Case Circuit Breaker

  • Product Type : CB

  • Version : F

  • Electrical Durability : 8000 cycle, 120 cycles per hour

  • Mechanical Durability : Nr. Operations 25000 cycle , Nr. Operations 240 cycles per hour

  • Terminal Connection Type : Fixed Circuit-Breakers Front

Product Specification

Rated current

Type

Product id

10 A

1SDA067072R1

XT2N 160 Ekip LSIG In=10A 3p F F

25 A

1SDA067073R1

XT2N 160 Ekip LSIG In=25A 3p F F

63 A

1SDA067074R1

XT2N 160 Ekip LSIG In=63A 3p F F

100 A

1SDA067075R1

XT2N 160 Ekip LSIG In=100A 3p F F

160 A

1SDA067076R1

XT2N 160 Ekip LSIG In=160A 3p F F
