SKU # 1000012342

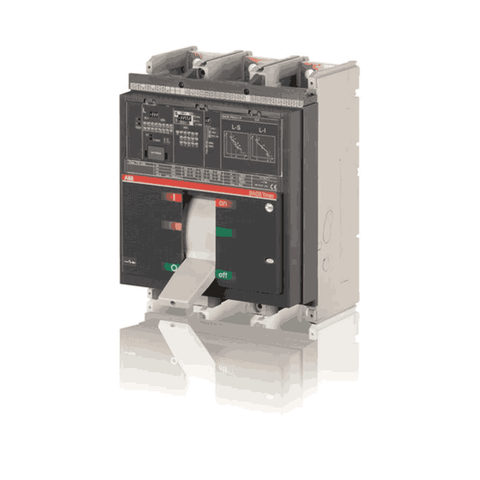

ABB XTMax MCCB  1600A 50 KA 415 V Three-Pole  - T7S 1600 PR231/P LS/I In=1600A 3p F F

ABB XTMax MCCB 1600A 50 KA 415 V Three-Pole - T7S 1600 PR231/P LS/I In=1600A 3p F F


₹ 95,260.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments


Product Description

  • C.Breaker Tmax T7S 1600 Fixed Three-Pole With Front Terminals And Lever Operating Mechanism And Solid-State Release In Ac PR231/P-Ls/I R 1600

  • Tmax circuit-breakers can be equipped with thermomagnetic,magnetic only or electronic trip units; all of which are interchangeable.

  • Moulded-case circuit-breakers can be used in low voltage civil and industrial installations with 1 to 3200 A operating current..

  • The ultimate short-circuit breaking capacity (Icu) at 415V ranges from 18kA to 200kA, or up to 100kA for 690V.

Product Specification

Brand

ABB

Product Name

Moulded Case Circuit Breaker

Product ID

1SDA062994R1

Product Type

CB

Model

T7S 1600 PR231/P LS/I In=1600A 3p F F

Width

210 mm

Height

268 mm

Depth / Length

154 mm

Product Main Type

SACE Tmax T

Rated Insulation Voltage

1000 V

Rated Current

Main Circuit 1600 A

Power Loss

at Rated Operating Conditions per Pole 77 W

Rated Operational Voltage

690 V AC

Terminal Connection Type

Fixed Circuit-Breakers Front

Product Net Weight

26 kg

Number of Poles

3

Standards

IEC

Version

F

Electrical Durability

2000 cycle 60 cycles per hour

Mechanical Durability

10000 cycle 60 cycles per hour
