LAST SOLD AT ₹ 37,840.00
SKU # 1000105669

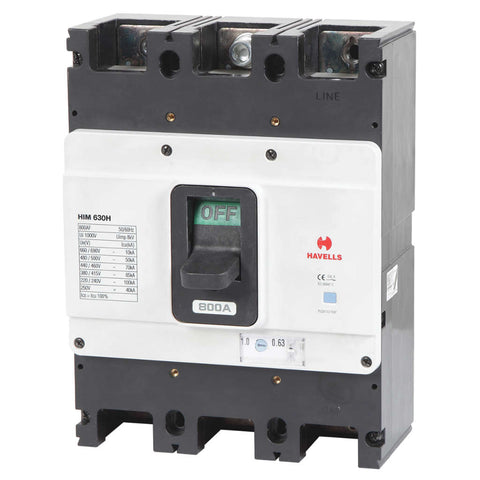

Havells Moulded Case Circuit Breaker Three Pole 65kA 500-630A HIM 630
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Adjustable Thermal & Fixed Magnetic Settings
-
Overload Setting is Adjustable (80-100)% and Fixed Magnetic Setting available
-
Ics= Icu =100%
-
Service breaking capacity, 100% x Icu is realized by enlarging breaking capacity with internal limit current device
-
Compact Size & Robust Design
-
Compact Reliable, high performance and Robust design of Moulded case circuit breaker with double protecting layer of Insulation
-
Maximized Insulation Performance
-
Rated Insulation Voltage Ui: 1000 V, Rated Operation voltage Ue: 690 V
-
Cable Insulation Performance Suitability
-
In case of of continuing abnormal conditions such as welding of main contact after tripping, handle is not available to move from OFF position in accordance with IEC 60947-2 cable insulation performance
-
Also, it is possible to maintain easily by checking a contact condition by the handle
-
Adjustable Rated Current
-
As applying to adjustable rated current design, it is possible to protect circuit optimally according to the load factor
-
Available to Various Low Voltage System Protections
-
It is available to adapt various low voltage system protections such as ‘Discrimination’ and ‘Cascading’ with limit current characteristic and high breaking capacity
-
Positive Dolly Position Indication
-
Depicts the ON/OFF status of the breaker
-
Conforms to IS/IEC60947-2
-
*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
Havells |
|
Product Type |
MCCB |
|
Product Code | Current Rating |
IHD3HLBT0500 | 500 A IHD3HLBT0630 | 630 A |
|
Series |
HIM Series |
|
No Of Poles |
Three Pole |
|
Frame |
HIM 630 |
|
Rated Ultimate Short-Circuit Breaking Capacity Ics=100% Icu at 415 Vac(kA rms) |
65 kA |
|
Rated Ultimate Short-Circuit Breaking Capacity Icu at 250 V(2P)-DC (kA) |
25 kA |
|
Ambient Temperature |
40 °C |
|
Breaking Capacity |
Ics=Icu=100% (16 kA / 20 kA) |
|
Operating Altitude |
2000 m |
|
Rated Frequency |
(50/60) Hz |
|
Rated Impulse Voltage |
8 kV |
|
Rated Insulation Voltage |
1000 V AC |
|
Rated Operational Voltage |
690 V AC |
|
Type Of Release |
Thermomagnetic Adjustable Type |
|
Utilisation Category |
A |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
3 Pole MCCB |
Manufacturer Details |
Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com |
Packer Details |
Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com |
Country of Origin |
India |
