Out of Stock!
SKU # 1000129235

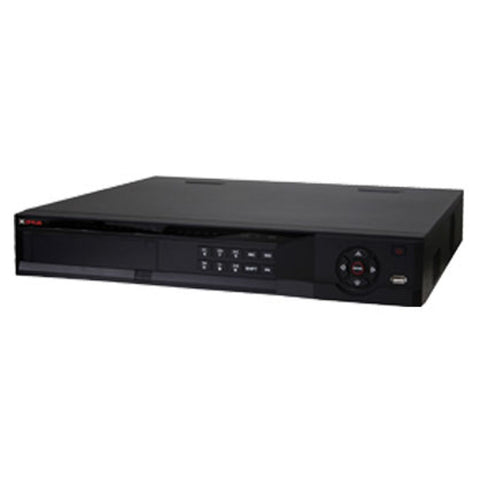

CP Plus 16 Channel 4K Network Video Recorder CP-UNR-4K4164-I
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
16 Channel IP video access
-
Access, storage or forwarding at 256 Mbps (160 Mbps when AI function enabled)
-
Support 4 SATA HDDs up to 10TB Each, 2 USB Ports
-
AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
-
1 HDMI / 1 VGA simultaneous video output
-
Support 4 SATA HDDs up to 10TB Each, 2 USB Ports
-
AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
| Brand | CP Plus |
| Product Type | Recorder |
| Product Code | CP-UNR-4K4164-I |
| Processor | Industrial-grade embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 16 channel |
| User Interface | Web; local GUI |
| Video Output | 1-ch VGA output and 1-ch HDMI output; simultaneous/heterogeneous video sources output for VGA and HDMI is configurable |
| Resolution | 16MP; 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720P; D1 |
| Video Compression | Instastream/H.265/Smart H.264+/H.264/MJPEG |
| Video Display Split | 1st Screen: 1/4/8/9/16 ; 2nd Screen: 1/4/8/9 |
| Audio Compression | PCM; G.711A; G.711U; G.726 |
| Decoding Capability | AI off: 1 channel × 16MP@20fps; 1 channel × 12MP@20fps; 2 channels × 8MP@30fps; 4 channels × 5MP@30fps; 5 channels × 4MP@30fps; 10 channels × 1080p@30fps AI on: 1 channel × 16MP@20fps; 1 channel × 12MP@20fps; 2 channels × 8MP@30fps; 3 channel × 5MP@30fps; 4 channels × 4MP@30fps ; 8 channels × 1080p@30fps |
| Audio Output | 1 channel |
| Audio Input | 1 channel |
| Alarm Input | 16 Channel |
| Alarm Output | 6 Channel |
| Camera Blank | Supports |
| Motion Detection | Supports |
| Video Loss | Supports |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
| AI By Camera | Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map |
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| AI By Device | Face detection; face recognition; perimeter protection; SMD Plus |
| Smart Phone | iPhone, iPad, Android Phone |
| Anomaly Alarm | Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception |
| Face | 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard |
| Hard Disk | 4 SATA ports, up to 10 TB. The Maximum HDD capacity varies with environment temperature |
| Recording Mode | Manual; schedule (general; MD; alarm; MD & alarm; intelligent) |
| Backup Mode | USB device |
| Playback | Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off |
| Ethernet | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports |
| Interface Ports | 1 front USB 2.0 port, 1 rear USB 3.0 port , 1 RS485, 1 RS232 |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search; InstaOn; auto register; ONVIF (profile T/S/G); CGI; SDK |
| Power Supply | Single, 100 V–240 V AC, 50 Hz–60 Hz |
| Power Consumption | Total output of NVR is ≤ 8 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (+10 °F to +131 °F) |
| Working Humidity | 10%–93% |
| Storage Temperature | 30%–85% |
| Operating Altitude | 3000 m |
| Dimension | 440.0 × 415.6 x 76.0 mm |
| Weight | 4.25 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.7 x 9.5 x 6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.319 kg |
| Generic Type | 16 Channel NVR |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country Of Origin | India |
