Out of Stock!
SKU # 1000114488

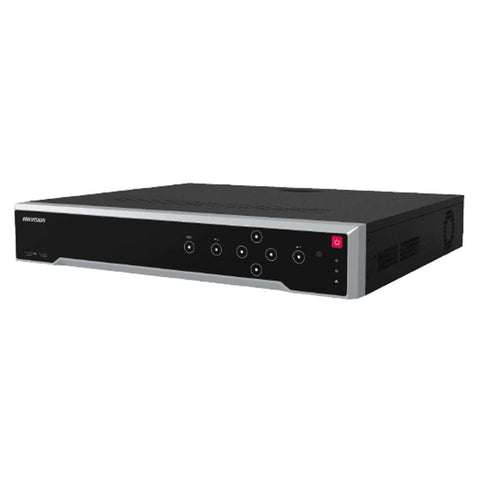

Hikvision K4 Series NVR 16 Channel DS-7716NI-K4
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
H.265+/H.265/H.264+/H.264 video formats
-
Up to 8/16/32-ch IP camera inputs
-
Up to 2-ch 8MP or 4-ch 4MP or 8-ch 1080P decoding capacity
-
1 HDMI and 1 VGA interfaces: both interfaces support independent video output
-
4 HDDs for continuous video recording
-
Up to 80/160/256 Mbps incoming bandwidth
-
Professional And Reliability
-
H.265+ compression effectively reduces the storage space by up to 75%
-
Adopt stream over TLS encryption technology which provides more secure stream transmission service
-
HD Video Output
-
Provide independent HDMI and VGA outputs
-
HDMI video output at up to 4K resolution
-
Storage and Playback
-
4 SATA interfaces for HDD connection (up to 1 TB capacity per HDD)
-
8/16-ch synchronous playback
-
Smart Function
-
Support multiple VCA (Video Content Analytics) events
-
Configurable special camera smart functions, such as VCA detection (motion,line crossing,intrusion, etc.), heat map, ANPR, and people counting
-
Network & Ethernet Access
-
2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
-
Hik-Connect for easy network management
Product Specification
| Brand | Hikvision |
| Product Type | NVR |
| Product Model | DS-7716NI-K4 |
| Power Supply | 100 to 240 VAC, 50 to 60Hz |
| Consumption (Without HDD) | ≤ 20 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Video And Audio | |
| IP Video Input | 16-ch Up to 12 MP resolution |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| HDMI Output | 1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 x 768/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | N/A |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264/H.264 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Capability | 1-ch 12MP (30fps)/2-ch 8 MP (30 fps)/ 4-ch 4 MP (30 fps)/8-ch 1080p(30 fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Network | |
| Remote Connection | 64-ch |
| Network Protocol | TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI,ISUP, UPnP, HTTP, HTTPS |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Auxiliary Interface | |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| SATA | 4 SATA interfaces |
| Capacity | Up to 10 TB capacity for each disk |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Certification | |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
| Dimension (WxDxH) | 445 × 400 ×71 mm |
| Weight (Without HDD) | ≤ 5 kg (11 lb) |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
16 Channel NVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
