SKU # 1000129234

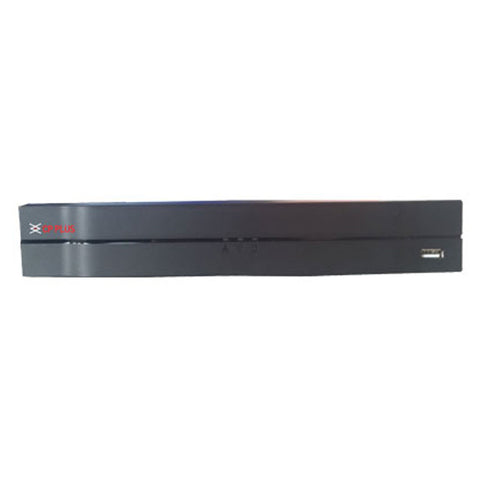

CP Plus 16 Channel AI Network Video Recorder CP-UNR-216F1-V3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
16 Channel IP video access
-
Instastream/H.265/Smart H.264 /H.264 encoding
-
Maximum decoding capability: 6 × 1080p@30 fps
-
Supports adaptive decoding
-
AI by camera: perimeter protection,and SMD Plus
-
Support 1 SATA HDDs up to 16TB each, 2 USB Ports
-
1 HDMI/ 1 VGA simultaneous video output
-
Support Multi-brand network cameras
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
| Brand | CP Plus |
| Product Type | NVR |
| Product Code | CP-UNR-216F1-V3 |
| Processor | Industrial-grade embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 16 channel |
| Two-Way Talk | 1 Ch audio in/1 Ch. out, RCA |
| User Interface | Web, Local, GUI |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Resolution | 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
| AI By Camera | Perimeter protection; SMD Plus |
| Video Compression | H.265/Smart H.264+/H264 |
| Encode Strategy | Instastream |
| AI By Device | n/a |
| Video Display Split | 1/4/8/9/16 |
| Audio Compression | PCM; G.711A; G.711U; G.726 |
| Decoding Capability | 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps |
| Audio Output | 1 channel |
| Audio Input | 1 channel |
| Camera Blank | Supports |
| Motion Detection | MD Zones: 396 (22 × 18) |
| Video Loss | Supports |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour |
| AI Search | n/a |
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm |
| Smart Phone | iPhone, iPad, Android Phone |
| Abnormal Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exceptio |
| Hard Disk | 1 SATA III ports, up to 16 TB for a single HDD The Maximum HDD capacity varies with environment temperatu |
| Recording Mode | Manual record; alarm record; motion detection record; schedule record |
| Backup Mode | USB device |
| Playback | 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (video clip/file); partially zom in; audio on/of |
| Record Interval | n/a |
| Ethernet | 1 × RJ-45, 10/100Mbps self-adaptive Ethernet port |
| Interface Ports | 2 USB Ports (1 × front USB2.0; 1 × back USB2.0) |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; InstaOn Cloud; ONVIF (profile T/S/G); CGI; SDK |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | Total output of NVR is ≤ 10 W (without HDD) |
| Working Temperature | -10°C to 55°C (+14°F to +113°F) |
| Storage Temperature | n/a |
| Operating Altitude | 3000 m |
| Dimension | 260 × 232.7 × 47.6 mm |
| Weight | 0.81 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.7 x 9.5 x 6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.319 kg |
| Generic Type | 16 Channel NVR |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country Of Origin | India |
