SKU # 1000076722

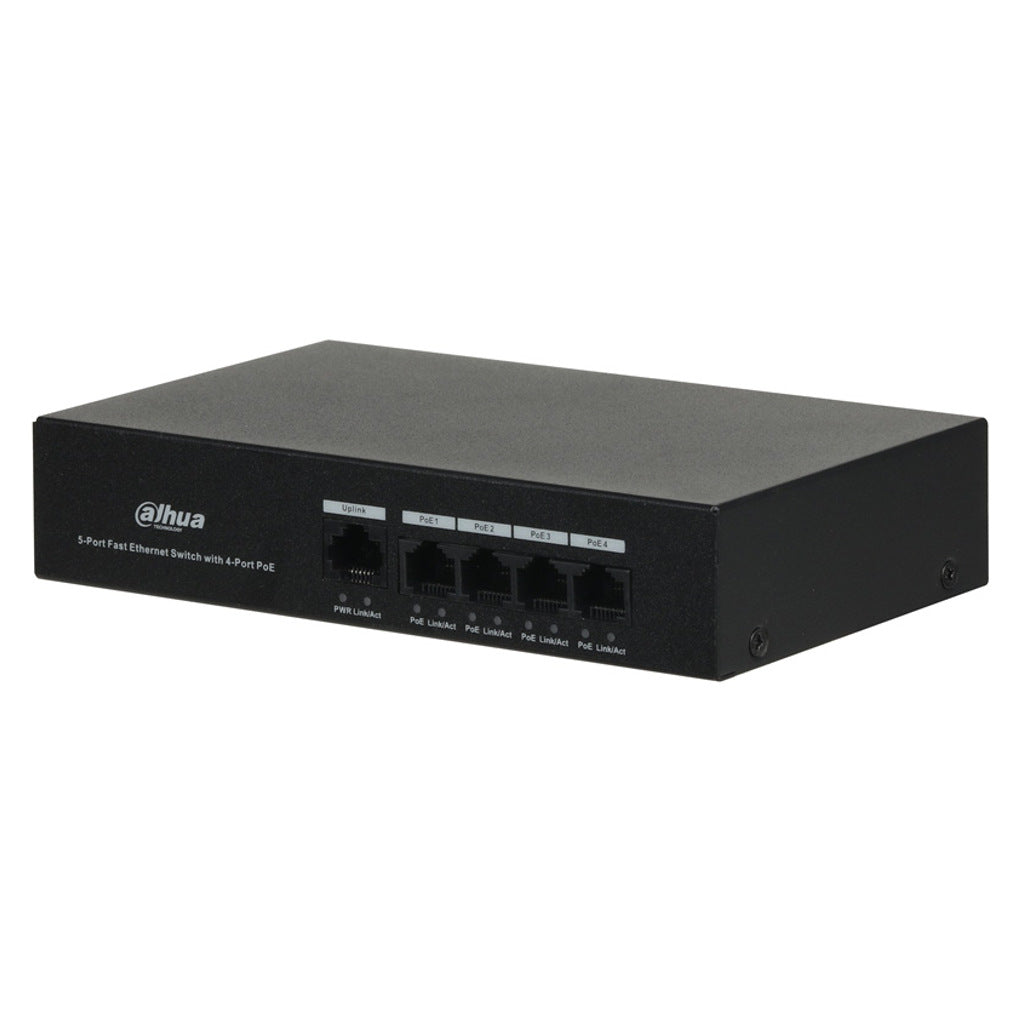

Dahua PoE Switch With Unmanaged 4-Port DH-PFS3005-4ET-36
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
DH-PFS3005-4ET-36 is layer-2 PoE Ethernet switch
-
It can reach lightning protection level 3
-
The device can support up to 4 PoE ports (The total PoE power is 36W)
-
In order to acquire smooth monitoring, it’s recommended to connect max 4 IP cameras at a bit rate of less than 4Mbps respectively
-
Features
-
Two-layer PoE Ethernet switch
-
MAC auto study and aging, MAC address list capacity is 1K
-
Support IEEE802.3af, IEEE802.3at standard
-
Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards
Product Specification
Brand |
Dahua |
Product Type |
PoE Switch |
Product Model |
DH-PFS3005-4ET-36 |
Ethernet Port |
1*10/100 Base-T 4*10/100 Base-T (PoE power supply) |
PoE Power Consumption |
Each power ≤30W, Total≤36W |
PoE Protocol |
IEEE802.3af, IEEE802.3at |
Switching Capacity |
1Gbps |
Packet Forwarding Rate |
744Kpps |
Packet Buffer Memory |
448Kb |
Mac Table Size |
1K |
Flow Control |
Enable by default |
Application Humidity |
10%~90% |
Power |
Input AC100~240V |
Lightning Protection |
Common Mode 2KV Differential Mode 1KV |
Working Temperature |
-20°C ~ +55°C |
Weight |
0.5kg |
Dimension(W×D×H) |
170mm×100mm×35mm |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
POE Switches |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
