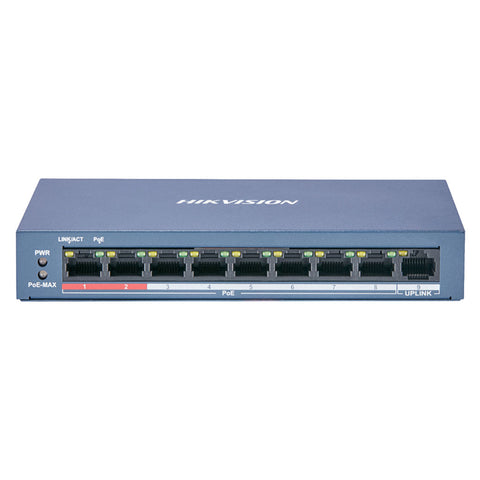

Hikvision 8 Port PoE Switch 1-RJ45 Uplink 10/100 Mbps DS-3E0109P-E/M

Hikvision 8 Port PoE Switch 1-RJ45 Uplink 10/100 Mbps DS-3E0109P-E/M


₹ 5,500.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 8 Port Fast Ethernet Unmanaged POE Switch

  • Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime

  • Up to 300 m Long Range PoE Transmission

  • The distance between IPCs and switch can reach maximum 300 meters

  • 4/8-Core Adaptive Power Supply with Less Power Loss

  • 8-core power supply reduces the power loss on cables

  • 6KV Surge Protection to Improve Reliability in Harsh Environment

  • The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment

  • Design for Video Transmission

  • VIP port ensures important data transmission when network congestion occurs

ProductSpecification

Brand

Hikvision

Product Type

PoE Switch

Product Code

DS-3E0109P-E/M

PoE Power Supply

PoE Standard

IEEE 802.3af, IEEE 802.3at

PoE Power Pin

End-span: 1/2(-), 3/6(+)

Mid-span: 4/5(+), 7/8(-)

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

Ports 1 to 8

Max. Port Power

Max. 30 W

PoE Power Pudget

60 W

Max. Power Consumption

38W

Network Parameters

Port Number

8 × 10/100 Mbps PoE ports, and 1 × 10/100 Mbps RJ45 port

Port Type

RJ45 port, full duplex, MDI/MDI-X adaptive

Working Mode

Standard mode (default); Extend mode

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

High Priority Ports

1.339 Mpps

Packet Forwarding Rate

Ports 1 to 2

Ports for Long-Distance Transmission

Ports 1 to 8

MAC Address Table

2 K

Switching Capacity

1.8 Gbps

Internal Cache

1 Mbits

Dialing Function

Long Range

Ports 1 to 8: up to 300 m; and the speed rate of the port is 10 Mbps

General

Power Consumption in Idle

5 W

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Storage Humidity

5% to 95% (no condensation)

Shell

Metal material, fan-free design

Operating Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Operating Humidity

5% to 95% (no condensation)

Power Supply

48 VDC, 1.35 A

Max. Power Consumption

65 W

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Dimension (L × H × D)

170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)

Net Weight

0.89 kg (1.96 lb)

Gross Weight

0.35 kg (0.77 lb)

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

POE Switches

Manufacturer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Packer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Country of Origin

India
