Available!
SKU # 1000127098

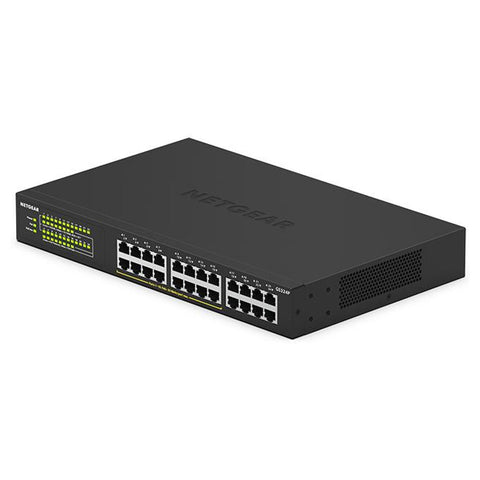

Netgear 24 Port Gigabit Ethernet Unmanaged PoE+ Switch With 16-Port 190 W GS324P
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Ethernet Port Configuration
-
24 Gigabit ports
-
Plug-And-Play
-
Simple set up with no software to install or configuration needed
-
Full Performance
-
Non-blocking switching architecture for Maximum throughput at wire speed
-
Power-Over-Ethernet
-
16 PoE+ ports with 190W total power budget
-
Connect Devices
-
Power IP Security Cameras, VoIP phones, wireless access points, and other PoE PD-powered devices
-
Poe Power Auto-Balance And Allocation
-
Netgear’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
-
Silent Operation
-
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
-
Energy Efficient
-
Designed to optimize power usage lowering its cost to operate
-
Metal Case
-
Durable and Rugged
-
Versatile Mounting Options
-
Supports desktop and wall placement Includes wall mount kit in the box
-
Standards-Based Design
-
Ensure interoperability with any standards-based Pds
Product Specification
| Brand | Netgear |
| Product Type | POE Switch |
| Product Model | GS324P |
| Features | |
| 10/100/1000Mbps Ports (Auto Uplink) | 24 |
| Enclosure | Metal |
| Connector Type | Metal |
| Form Factor | Rack mount/Desktop |
| Power On/Off Switch | NA |
| PoE Configuration |
|
| 802.3at PoE+ Ports | 16 |
| PoE Maximum Power Per Port | 30W |
| Total PoE Power Budget | 190W |
| Power Consumption | |
| DC Input/Power In | Internal (100-240VAC, 50/60Hz, 3A Maximum) |
| Power Consumption (Maximum And Standby) | 210W/ 10W |
| Heat Dissipation (Maximum And Standby) (BTU/Hr) | 718.2BTU/34.2BTU |
| Performance Specification | |
| Bandwidth (Non-Blocking) | 48 Gbps |
| Packet Buffer Memory (Dynamically Shared Across Only Used Ports) | 192 KB |
| Jumbo Frame Support | 10000 bytes |
| Queue WRR (Weighted Round Robin) Ratio | 1:2:4:8 |
| Forwarding Rate (Using 64-Byte Packets) | 1,448,000 pps |
| Latency (Using 64-Byte Packets) - 1000Mbps Port | < 4 μsec |
| MAC Address Table Size | 8K |
| Auto MDI/MDI-X Cable Detection | Yes |
| Auto-Sensing Half/Full Duplex Switched Ports | Yes |
| Mean Time Between Failures (MTBF) 25° C | 1,193,574 hours |
| LEDs | |
| Per Port | Speed, Link/ Activity, PoE |
| Per Device | Power, PoE Maximum, Fan |
| Energy Efficiency | |
| Energy Efficient Ethernet (EEE) IEEE 802.3az Complian | Yes |
| Auto Power Down | Yes |
| Short Cable Detection | Yes |
| Fan/Fanless | 1 Fan |
| Operating Temperature | 0° to 45°C (32° to 113°F) |
| Humidity | 10%–90% relative humidity, noncondensing |
| Altitude | 3000 M |
| Storage Temperature | –20° to 70°C (– 4° to 158°F) |
| Humidity (Relative) | 10%~95%, non-condensing |
| Dimension (W x D x H) | 330 x 206 x 43 mm (13 x 8.1 x 1.7 in) |
| Weight | 2.44 kg (5.38 lb) |
| Warranty | 3 Years |
Other Details
| Dimension (CM) - L x B x H | 6.8 x 3.3 x 9.7 |
| Unit Of Measurement | 1 Piece |
| Weight | 934 g |
| Generic Type | POE Switches |
| Manufacturer Details | Netgear Technologies India PVT LTD. 21 Paharpur Business Centre, Nehru Place, New Delhi - 110019 |
| Packer Details | Netgear Technologies India PVT LTD. 21 Paharpur Business Centre, Nehru Place, New Delhi - 110019 |
| Country Of Origin | India |
